Corsair RMx Series™ RM750x — 750 Watt 80 PLUS Gold Fully Modular ATX PSU (UK)

Specifications

Weight	1.7
Adjustable Single/Multi 12V Rail	No
ATX Connector	1
ATX12V Version	v2.4
Continuous output rated temperature C	50°C
Continuous power W	750 Watts
Fan bearing technology	Magnetic Levitation Bearing
Fan size mm	135mm
MTBF hours	100,000 hours
Multi-GPU ready	Yes
80 PLUS Efficiency	80 PLUS Gold Certified
PSU Form Factor	ATX
iCUE Compatibility	No
Zero RPM Mode	Yes
Cable Type	Sleeved and flat, black cables
EPS12V Connector	2
EPS12V Version	v2.92
Modular	Fully Modular
PCIe Connector	4
SATA Connector	10
Special Technology	Magnetic Levitation Fan
Protections	OVP (Over Voltage) UVP (Under Voltage) SCP (Short Circuit) OTP (Over Temp) OPP (Over Power)





MAGNETIC LEVITATION COOLING MEETS HIGH EFFICIENCY

CORSAIR RMx Series fully modular power supplies are built with the highest quality components to deliver 80 PLUS Gold efficient power to your PC with the cooling power of potent Magnetic Levitation fans.

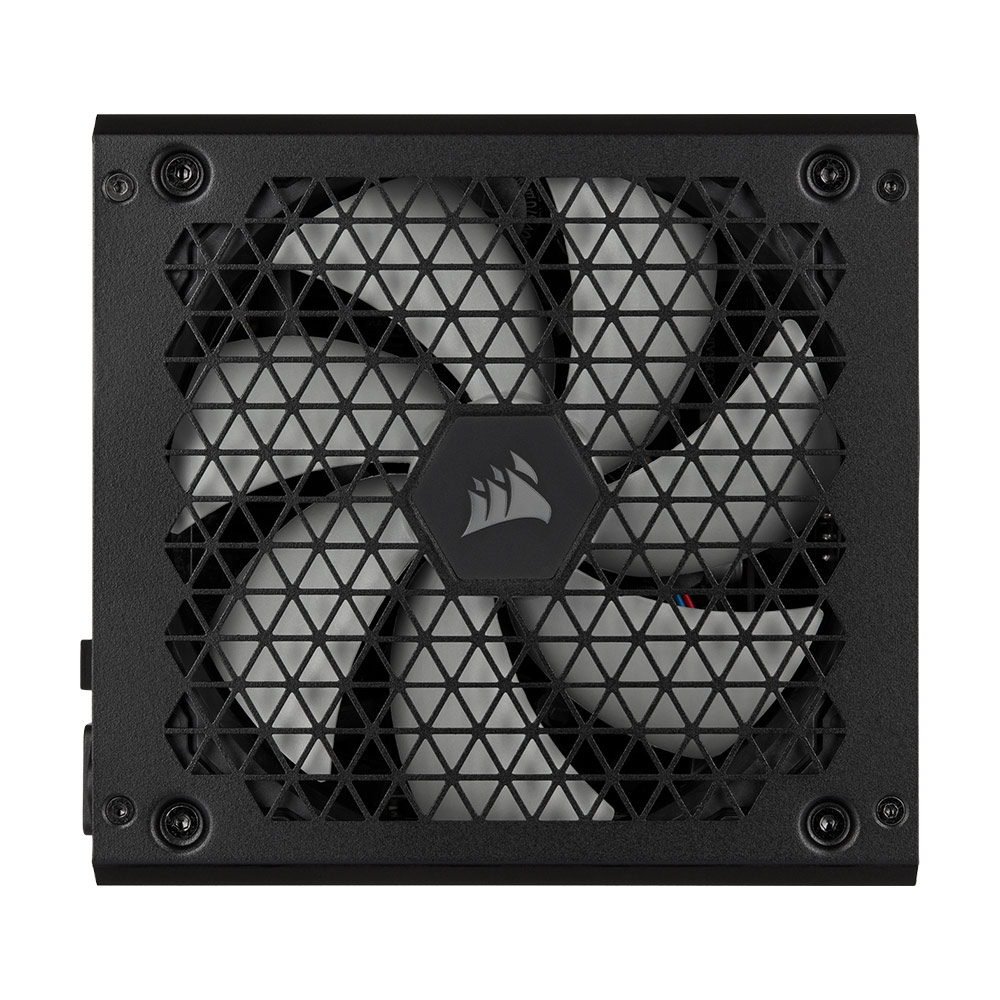

135MM MAGNETIC LEVITATION FAN

Utilizes a magnetic levitation bearing and custom engineered rotors for high performance, low bearing noise, and superior reliability.



HIGH EFFICIENCY

With upwards of 90% peak efficiency, RMx produces less noise and less heat, which means less time worrying and more time gaming.



FULLY MODULAR WITH MULTIPLE EPS12V CONNECTORS

Completely modular cables means you only connect the cables your system needs, and the wide range of included cables adds broad compatibility with modern graphics cards and motherboards.

Also compatible with the 12-pin GPU Power Cable for the hottest new GPUs.



TECHNOLOGY AND RELIABILITY

For consistent, reliable power and superb electrical performance, each RMx Series power supply features a robust resonant LLC topology with DC-DC conversion, and 105°C rated 100% Japanese electrolytic capacitors. With precise timings, RMx supports Microsoft Modern Standby, ensuring extremely fast wake-from-sleep times and better low-load efficiency.



CERTIFICATIONS

The Cybenetics organization measures efficiency and noise levels across the PSU’s entire operational range, using more than 1,450 different load combinations.

The “Gold” efficiency rating is defined as ≥87% to <91% (depending on input voltage).

The “A-” noise level test is measured in those same configurations to be ≥25 dBA & <30 dBA under noise data averaging.



YOUR BUILD, YOUR WAY

Every fully modular CORSAIR PSU is compatible with a wide range of CORSAIR accessories. From individually sleeved cables in a variety of color combinations to 12-pin micro-fit GPU cables and 12VO motherboard cables, complete your build your way.



RM750x POWER TABLE

MODEL	RPS0123
PART NO.	CP-9020199/75-003897
AC Input Rating
AC INPUT	100–240V
INPUT CURRENT	10A-5A
FREQUENCY	47~63Hz
	Max Load	Max Output
+3.3V	20A	150W
+5V	20A
+12V	62.5A	750W
-12V	0.3A	3.6W
+5VSB	3A	15W
TOTAL POWER	750W
