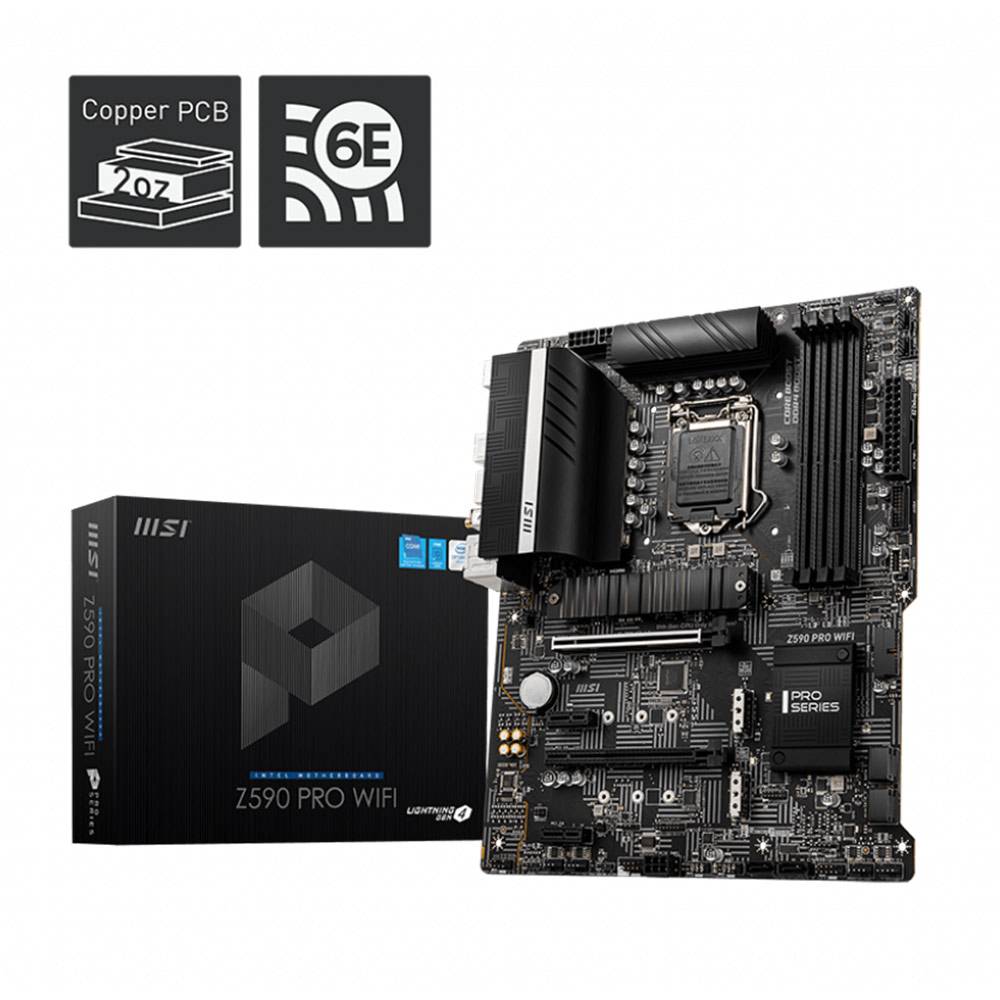

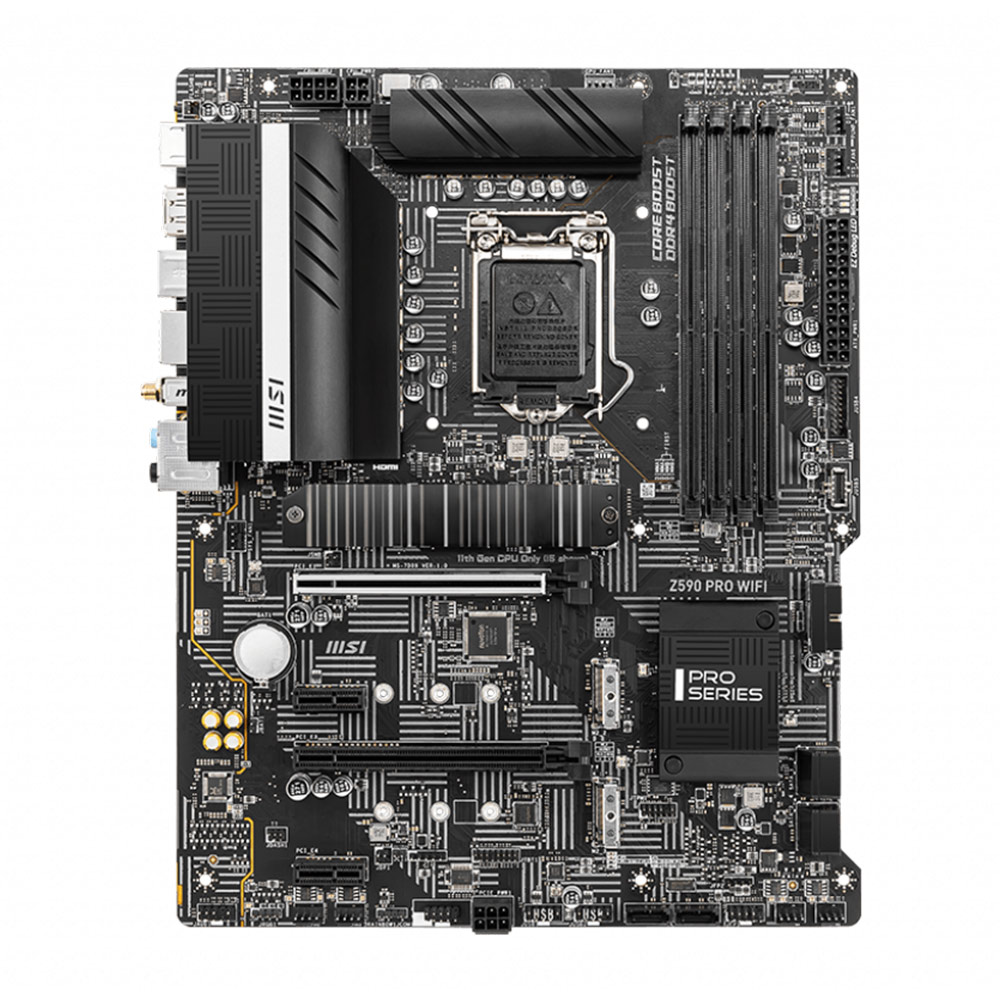

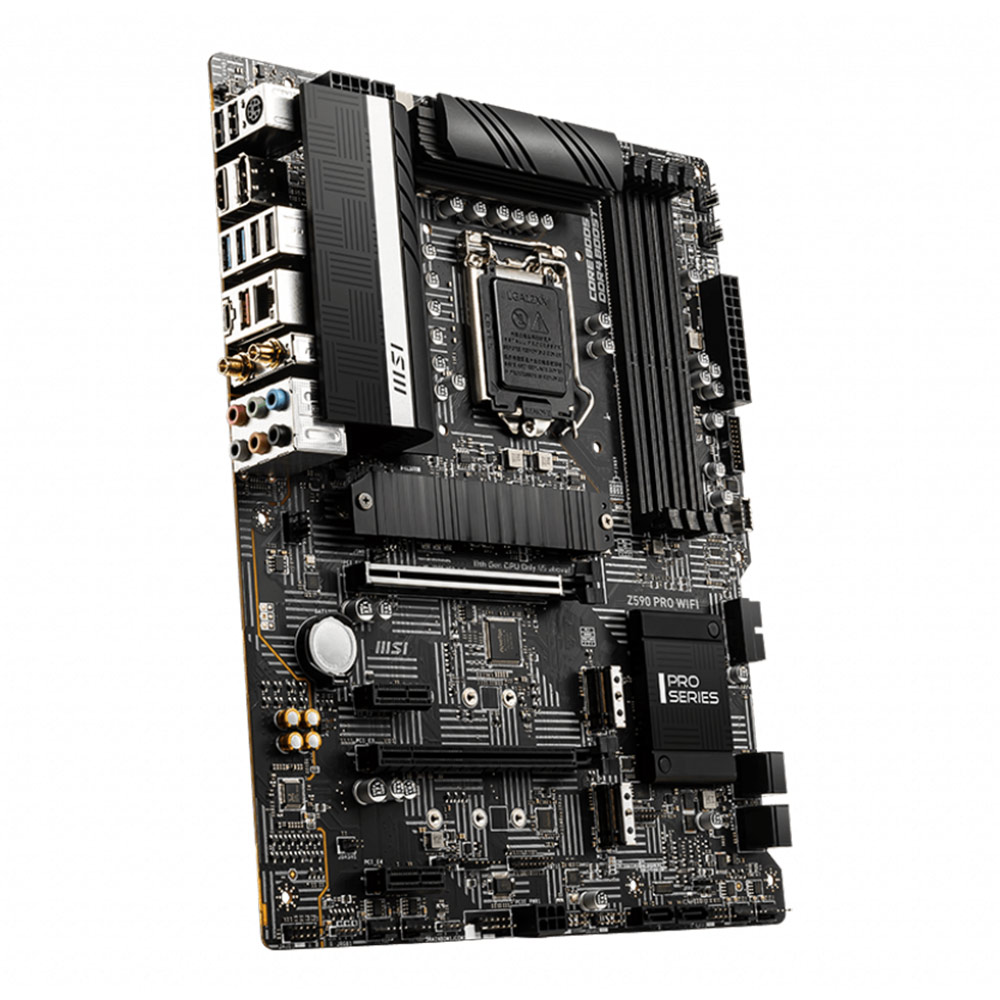

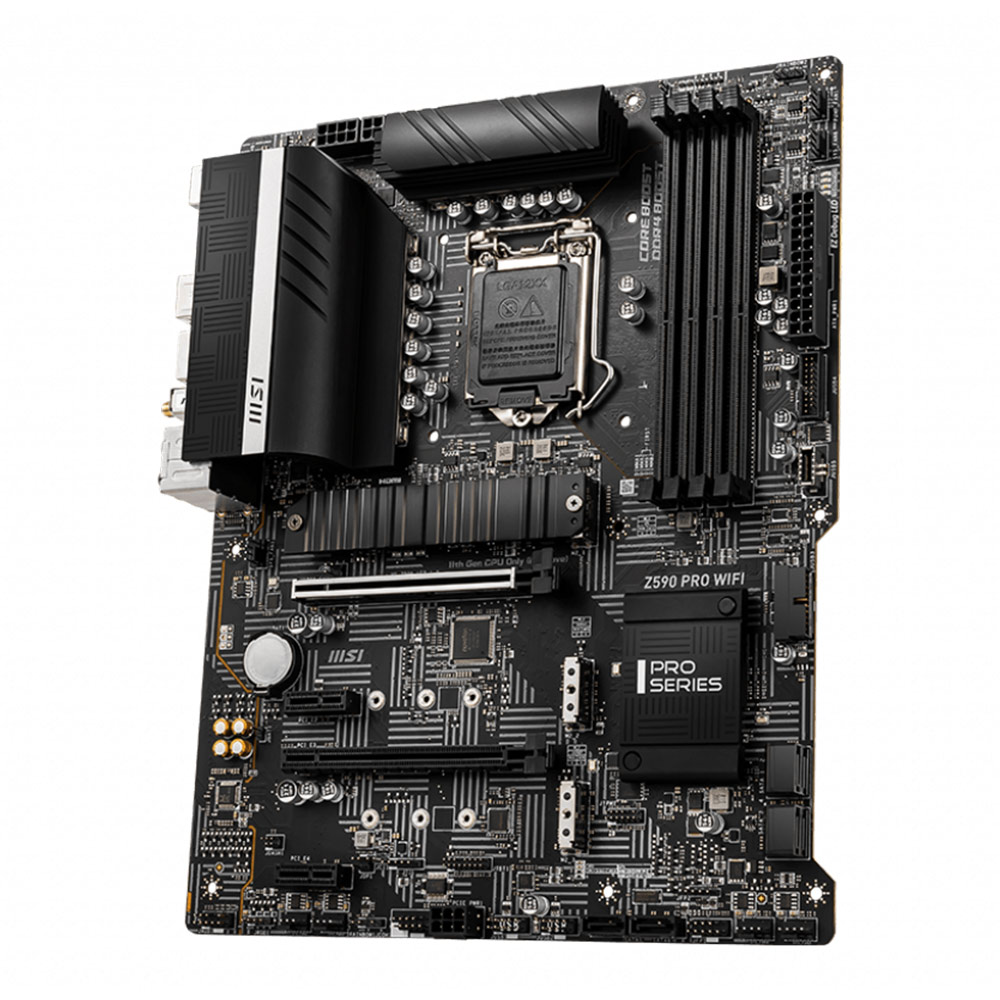

MSI Z590 PRO WIFI 911-7D09-017 Motherboard

  • Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 5333(OC) MHz
  • Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr, Intel Turbo USB 3.2 Gen 2
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
SKU: 911-7D09-017 Categories: , ,

Specifications:

CPU (Max Support) i9
Socket 1200
Chipset Intel® Z590 Chipset
DDR4 Memory 5333(OC) / 5200(OC) / 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
Memory Channel Dual
DIMM Slots 4
Max Memory (GB) 128
PCI-E x16 2
PCI-E x1 2
SATAIII 6
M.2 Slot 3
RAID 0/1/5/10
TPM (header) 1
LAN 1x Intel® I225-V 2.5Gbps LAN
WiFi & Bluetooth Intel® Wi-Fi 6E AX210
USB 3.2 ports (Front) 1(Gen 2, Type C), 4(Gen 1, Type A)

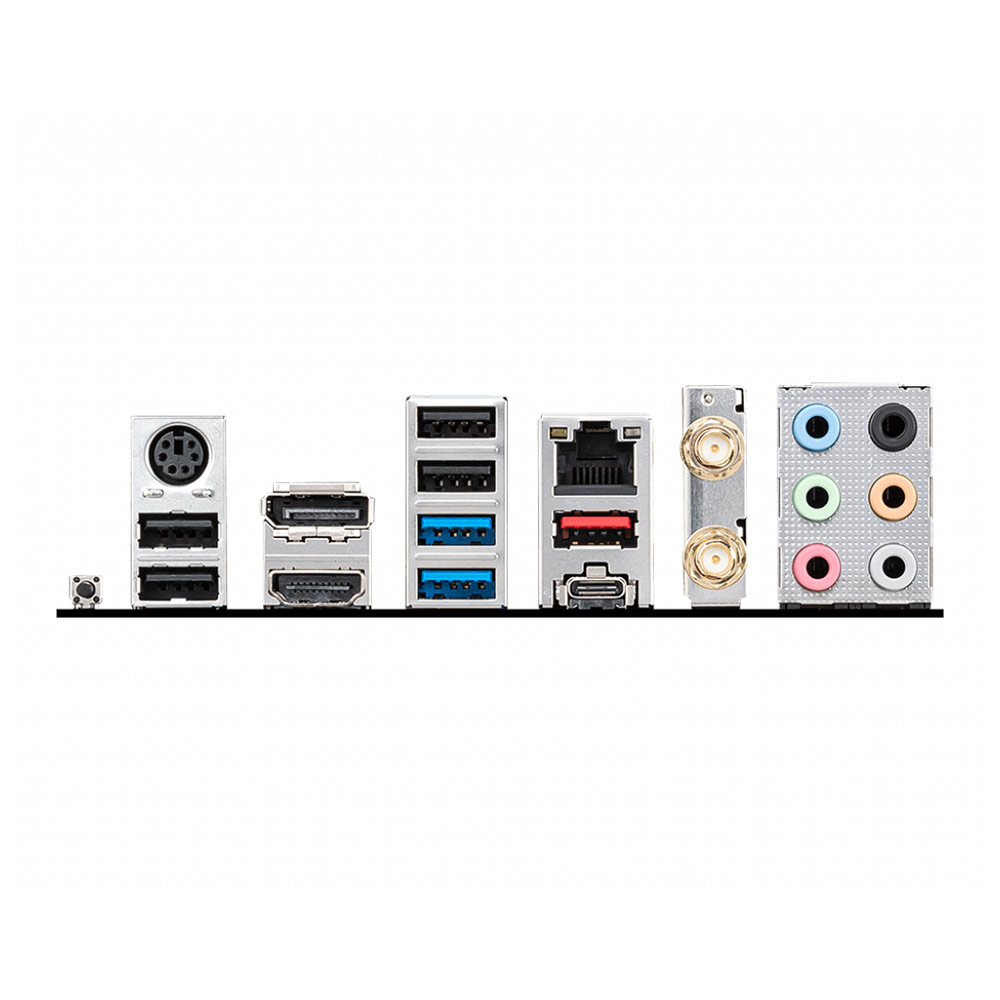

USB 3.2 ports (Rear) 1(Gen 2×2, Type C), 1(Gen 2, Type A), 2(Gen 1, Type A)
USB 2.0 ports (Front) 4
USB 2.0 ports (Rear) 4
Serial ports(Front) 1
Audio ports (Rear) Realtek® ALC897 Codec
DisplayPort 1
HDMI 1
DirectX 12
Form Factor ATX
CrossFire Y
Operating System Support for Windows® 10 64-bit



PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.



THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE

With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink with 7W/mK thermal pad ensures even high-end processors to run in full speed with MSI motherboards.



HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.



12 + 2 +1 POWER DESIGN

Unleash and sustain maximum performance with an aggressive VRM design built with a total of 12 digital CPU power phases. Combining 8 + 4 pin power connectors and exclusive Core Boost technology, PRO series motherboard is ready to sustain heavy daily work.

Weight 0.5 kg
