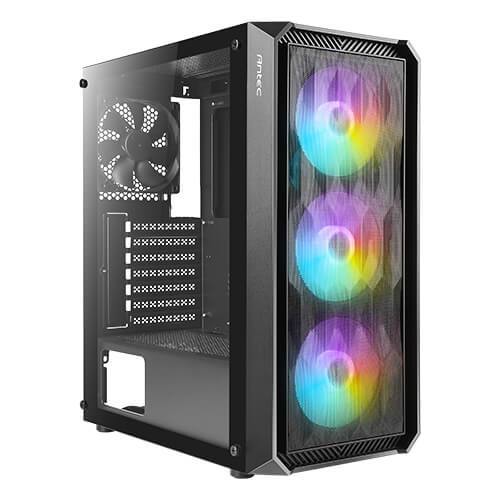

Antec NX292 NX Series-Mid Tower Gaming Case

  • Dimensions 406 x 206 x 450mm (DWH)
  • Form Factor Mid Tower
  • Materials Steel + Plastic
  • Mainboard Support E-ATX, ATX, Micro-ATX, ITX
  • Front Access & Controls Power, Reset, USB 2.0 x2, USB 3.0 x 1, Headphone/Mic Combo Jack
  • Side Panel Tempered glass
SKU: 0-761345-81006-7 Categories: , ,

Specifications

Case Specification
Dimensions 406 x 206 x 450mm (DWH)
Form Factor Mid Tower
Materials Steel + Plastic
Mainboard Support E-ATX, ATX, Micro-ATX, ITX
Front Access & Controls Power, Reset, USB 2.0 x2, USB 3.0 x 1, Headphone/Mic Combo Jack
Side Panel Tempered glass
Expansion & Drive Bays
Expansion Slots 7
3.5″ /2.5″ 2/1
2.5″ 2
Fan Support
Front 3 x 120 / 2 x140mm
Top 2 x 120 / 2 x140mm
Power Supply Shroud 2 x 120mm
Rear 1 x 120mm
Included Fan(s) 3 x 120mm fixed mode RGB fans in front & 1 x 120mm regular fan in rear
Radiator Support
Front 120 / 140 / 240 / 280 / 360mm
Rear 120mm (Length ≤ 156mm)
Clearance
Max GPU Length ≤ 320mm
Max CPU Cooler Height ≤ 155mm
Max PSU Length ≤ 165mm(with HDD)
≤ 300mm(without HDD)
Miscellaneous
Dust Filter Top / Bottom
Net Weight 4.5KG
Gross Weight 5.3KG
UPC# 0-761345-81006-7



Creation of Value & Function

The NX292 mid-tower gaming case effortlessly combines a bevy of in-demand features: USB 3.0 connectivity, ample storage drive bays, room for expansion, and includes 3 x 120mm fixed mode RGB fans in front and 1 x 120mm fan in rear. With support for up to a 360 mm liquid cooling radiator in front, NX292 is easy to build with and easy to cool.

  • Net Weight: 4.5 kgs
  • Gross Weight: 5.3 kgs



    A  Motherboard support: E-ATX, ATX, Micro-ATX, ITX
    B  2.5″ SSD: 2
    C  3.5″ HDD/2.5″ SSD(convertible): 2/1
    D  Graphics Card Support: Up to 320 mm
    E  CPU Cooler Support: Up to 155 mm
    F  PSU Support: Up to 165 mm (with HDD)Up to 300 mm (without HDD)





Weight 5 kg
