Bundle Offer: Gigabyte GeForce RTX™ 3090 Ti GAMING 24G Graphic Card + XIGMATEK Minotaur 1000W Power Supply

Gigabyte Graphic Card

  • NVIDIA Ampere Streaming Multiprocessors
  • 2nd Generation RT Cores
  • 3rd Generation Tensor Cores
  • Powered by GeForce RTX™ 3090 Ti
  • Integrated with 24GB GDDR6X 384-bit memory interface
  • WINDFORCE 3X Cooling System with alternate spinning fans

XIGMATEK Power Supply

  • LLC Resonant Circuit Layout Topology
  • DC to DC Circuit Design
  • Fully Featured Modular Cable PSU
  • 140mm Low Noise Cooling Fan
  • Designed for Professional and Gaming System
SKU: GV-N309TGAMING-24GD/MT1000G12 Categories: , ,

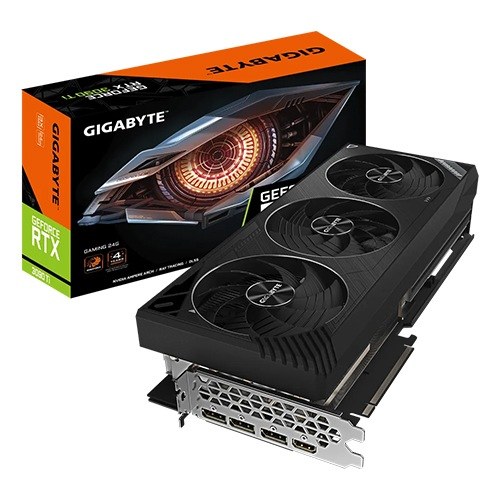

Gigabyte GeForce RTX™ 3090 Ti GAMING 24G Graphic Card

Specifications

Graphics Processing GeForce RTX™ 3090 Ti
Core Clock 1860 MHz
CUDA® Cores 10752
Memory Clock 21000 MHz
Memory Size 24 GB
Memory Type GDDR6X
Memory Bus 384 bit
Memory Bandwidth (GB/sec) 1008 GB/s
Card Bus PCI-E 4.0 x 16
Digital max resolution 7680×4320
Multi-view 4
Card size L=331 W=150 H=70 mm
PCB Form ATX
DirectX 12 Ultimate
OpenGL 4.6
Recommended PSU 850W
Power Connectors 16 pin*1

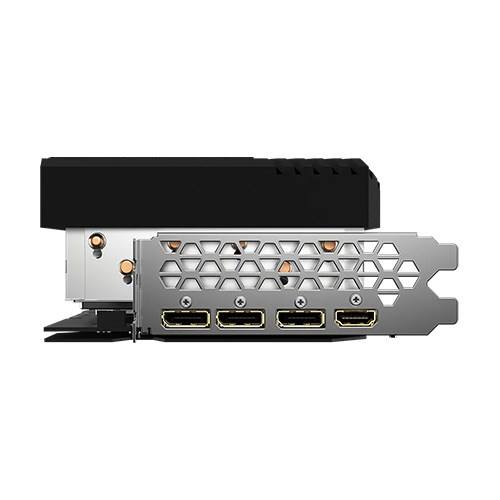

Output DisplayPort 1.4a *3 HDMI 2.1 *1
SLI Support 2‎-way NVIDIA NVLINK™
Accessories
1. Quick guide 2. warranty registration 3. VGA holder 4. One 12 pin to triple 8 pin connectors cable

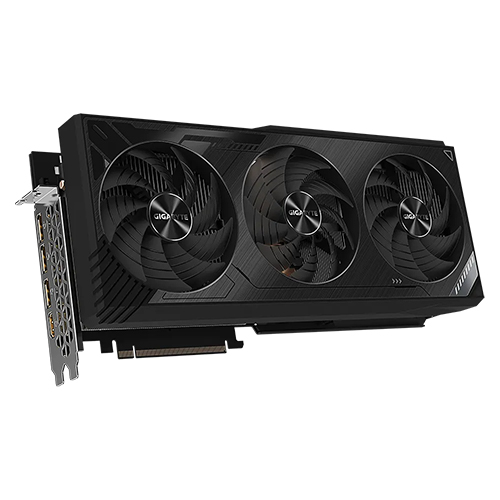

WINDFORCE 3X COOLING SYSTEM

The WINDFORCE 3X cooling system features 3x 100mm unique blade fans, alternate spinning, vapor chamber, 8 composite copper heat pipes, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.

ALTERNATE SPINNING

Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure.

SMOOTH AIRFLOW

GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.

3D ACTIVE FAN

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

UPGRADED UNIQUE BLADE FAN

By precisely fine-tuning the angle and the shape of the fan blades, coupling with the triangular fan edge and 3D stripe curve on the fan surface to smoothly guide the airflow, the upgraded cooling fans can generate a greater amount of air intake at the same fan speed.

DOUBLE BALL BEARING

The double ball bearing structure has better heat endurance and efficiency than sleeve structure.

SCREEN COOLING

Extended heatsink design allows air flow to pass through, providing better heat dissipation.

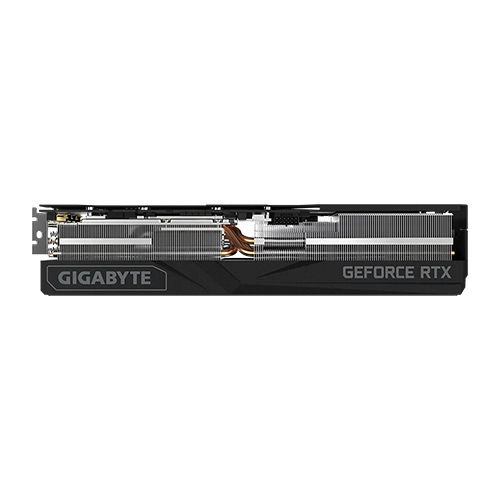

VAPOR CHAMBER & HEAT PIPES

With direct contact to the GPU and VRAM, the large copper plate combines the composite heat pipes to efficiently transfer heat generated from the interior cores to the heat sink.

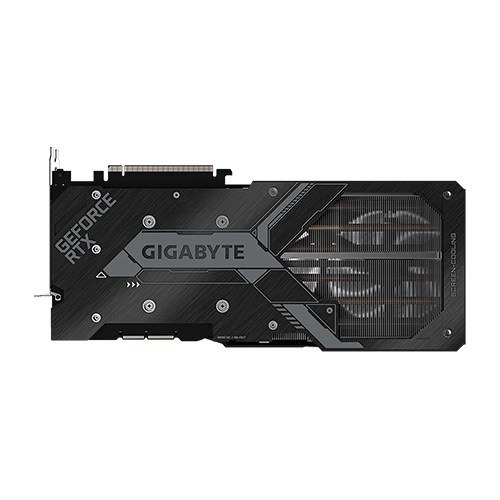

PROTECTION METAL BACK PLATE

The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

DUAL BIOS

Silent mode will provide a quieter experience. The mode switch requires a reboot to take effect. The default is OC mode.

NVIDIA NVLINK™ SUPPORT

Support for NVIDIA NVLinkTM (NVIDIA SLI) technology, which combines 2 identical GPUs with an GeForce RTX NVLink Bridge to deliver the ultimate experience in 4K gaming or VR gaming.

AEROSPACE-GRADE PCB COATING

Dust resistant – shields from dust, insects, dropped screws, drill shavings, and abrasion.
Moisture resistant – prevents unwanted conduction paths and board damage.
Corrosion resistant – protects from salt spray, humidity, and corrosion.

EXTREME DURABILITY AND OVERCLOCKING

The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.

FRIENDLY PCB DESIGN

Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

AORUS ENGINE

The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.

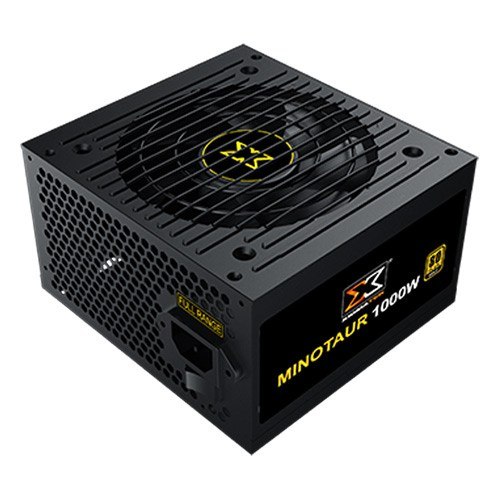

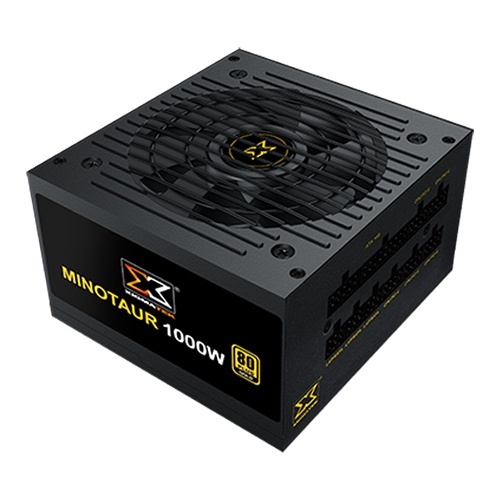

XIGMATEK Minotaur 1000W Power Supply

Specifications

  • LLC Resonant Circuit Layout Topology
  • DC to DC Circuit Design
  • Fully Featured Modular Cable PSU

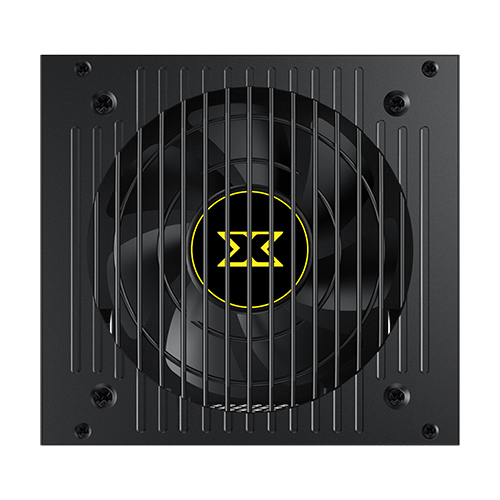

  • 140mm Low Noise Cooling Fan
  • Designed for Professional and Gaming System
Weight 5 kg
