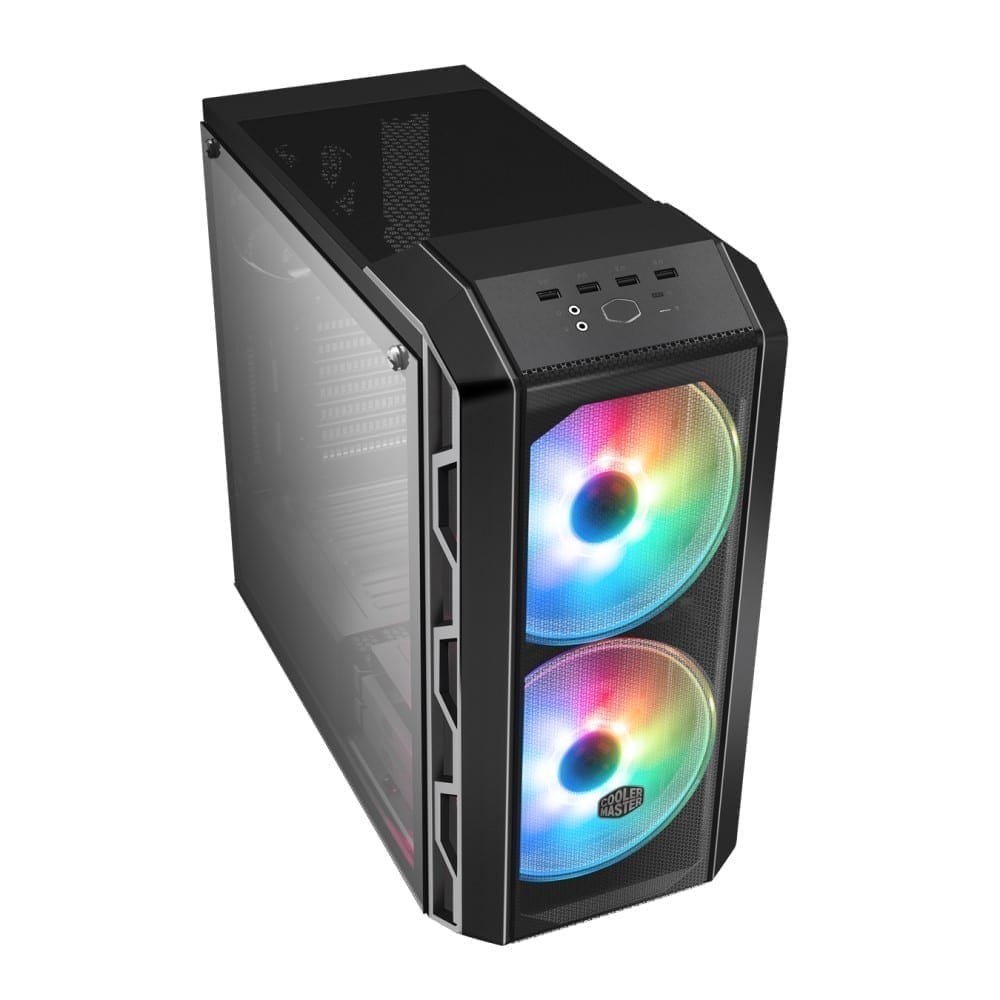

Two front panels, two 200mm ARGB fans, and a handle to grip onto when the adrenaline kicks in. The MasterCase H500 is established as the go-to chassis for high performance airflow. Now, with 200mm ARGB fans, its legacy is upgraded with premium lighting.
MESH & TRANSPARENT PANELS INCLUDED
Each choice of front panels decide whether the build will excel at ruthless airflow performance or head-turning aesthetics. Of course, the mesh is the ideal choice for providing the pre-installed fans with high volumes of fresh air. The transparent panel, on the other hand, parades those fans in crystal clear view.
DUAL 200MM ARGB FANS
The iconic, addressable RGB fans are the core of the H-Series in design and function, capable of operating quietly while moving high volumes of air due to their size.
ARGB LIGHTING SYSTEM
The pre-installed ARGB fans can be managed by either the motherboard or an included controller, connected by the included splitter, to create a comprehensive ARGB lighting system.
TEMPERED GLASS SIDE PANEL
Gaming hardware, cooling components, and the pure pride of the builder is shown in panoramic view through an edge-to-edge tempered glass side panel.
Hidden on the top panel, in front of the mesh ventilation, is an integrated handle for enhanced utility.
The small ARGB Controller is a mini-sized controller that allows your Addressable RGB such as fans and LED strips to be powered and controlled even in PC systems without an A-RGB capable motherboard.
The controller comes with 14 lighting presets to make full use of the Addressable LEDs in the system and also allows to be completely switched off by long pressing its button.
It is also possible to attach any external 2pin button to it to be able to switch presets without having to open the system. For ease of use, Cooler Master allows the RESET button to be optionally connected to the controller and used as an external ARGB preset switch button.
MODEL NUMBER: MCM-H500-IGNN-S01
SERIES: MasterCase Series
SIZE: Mid Tower
AVAILABLE COLOR(S): Iron Grey
MATERIALS: Steel, Plastic, Mesh
DIMENSIONS (L X W X H): 525 x 228 x 502mm (Incl. Panels)
WEIGHT: 6.59 kg
MOTHERBOARD SUPPORT: Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX*, (*support for up to 12″ x 10.7″, will limit cable management features)
EXPANSION SLOTS: 7
5.25″ DRIVE BAYS: N/A
2.5″ / 3.5″ DRIVE BAYS (COMBO): 2
2.5″ DRIVE BAYS: 2
I/O PANEL: 2x USB 3.2 Gen 1 (formerly USB 3.0), 2x USB 2.0, 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack
ARGB CONTROLLER: ARGB Controller included
ARGB CABLE: 2 to 3 ARGB Splitter cable included
PRE-INSTALLED FANS – FRONT: 2x 200mm ARGB Fan
PRE-INSTALLED FANS – REAR: 1x 120mm (Black)
FAN SUPPORT – TOP: 2x 120mm, 2x 140mm, 1x 200mm
FAN SUPPORT – FRONT: 3x 120mm, 2x 140mm, 2x 200mm
FAN SUPPORT – REAR: 1x 120mm
RADIATOR SUPPORT – TOP: 120mm, 140mm, 240mm
RADIATOR SUPPORT – FRONT: 120mm, 140mm, 200mm, 240mm, 280mm, 360mm
