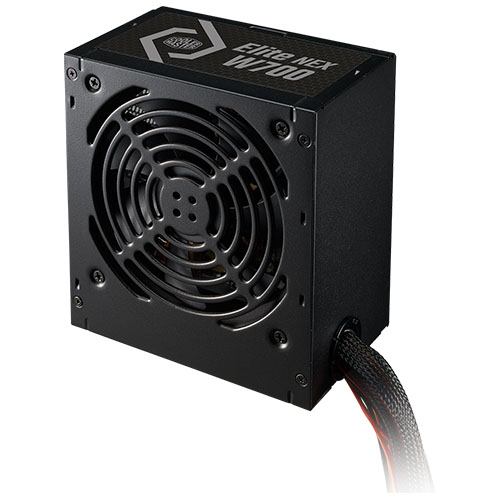

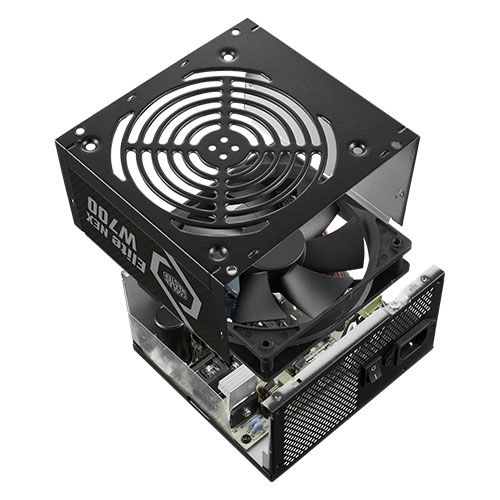

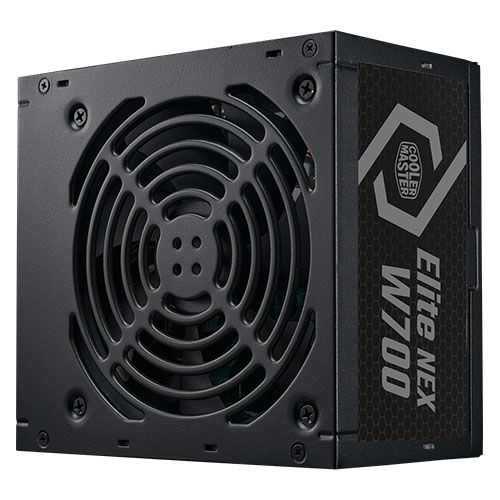

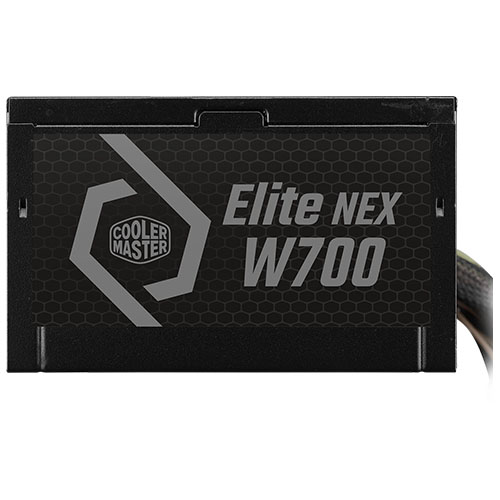

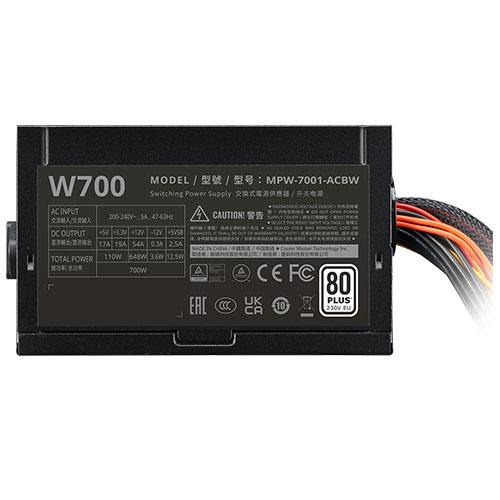

CoolerMaster ELITE NEX WHITE 700 230V Power Supply

CoolerMaster ELITE NEX WHITE 700 230V Power Supply - Image 2

CoolerMaster ELITE NEX WHITE 700 230V Power Supply

Out of stock

SAR 0

Active PFC and a dual forward topology design
Excellent temperature resistance
High peak power tolerance
Durability, reliability, and safety
80 Plus standard certified efficiency

SKU: MPW-7001-ACBW-BUK Categories: Cooler Master, Gaming, Power Supply

Description
Additional information
Reviews (0)

Specifications

Model MPW-7001-ACBW-B
ATX Version ATX 12V Ver. 2.41
PFC Active PFC
Input Voltage 200-240V
Input Current 5A
Input Frequency 50-60Hz
Dimensions (L x W x H) 140 x 150 x 86 mm
Fan Size 120mm
Fan Bearing Sleeve Fan
Efficiency ≥ 85% @ Typical Load
ErP 2014 Lot 3 Yes
Operating Temperature 0-40°C
Power Good Signal 100 – 500 ms
Hold Up Time ≥10ms at 100% load
MTBF >100,000 Hours
Protections OVP, OPP, SCP, UVP, OTP, Inrush Protection
Regulatory TUV, cTUVus, CE, FCC, CCC, EAC, UKCA
ATX 24 Pin Connectors 1
EPS 4+4 Pin Connectors 1
EPS 8 Pin Connector 1
SATA Connectors 5
Peripheral 4 Pin Connectors 3
PCI-e 6+2 Pin Connectors 2
Series Elite Series
80 Plus Standard
Modular Non Modular
Wattage 500 to 750W

NEX LEVEL POWER

The ELITE NEX White is the dependable choice for entry level builders looking for a strong, reliable PSU.

ACTIVE POWER FACTOR CORRECTION AND A DUAL FORWARD TOPOLOGY DESIGN

Constructed with protective measures normally only found in high-end power supplies that improve overall safety and current stability.

EXCELLENT TEMPERATURE RESISTANCE

Capable of comfortably operating at 40°C under full loads, allowing for a longer lifespan even in warmer environments.

HIGH PEAK POWER TOLERANCE

Can reliably push an additional 100W at peak power loads for up to 20 seconds.

DURABILITY, RELIABILITY, AND SAFETY

Will perform consistently in any environment, whether you live at high altitudes or in high humidity.

80 PLUS STANDARD CERTIFIED EFFICIENCY

Maintains an efficiency of 85% at typical loads.

PSU CALCULATOR

Need help choosing the right power supply for your system?
Try out our comprehensive and easy-to-use PSU calculator.

Additional information

Weight	5 kg

Reviews

There are no reviews yet.
