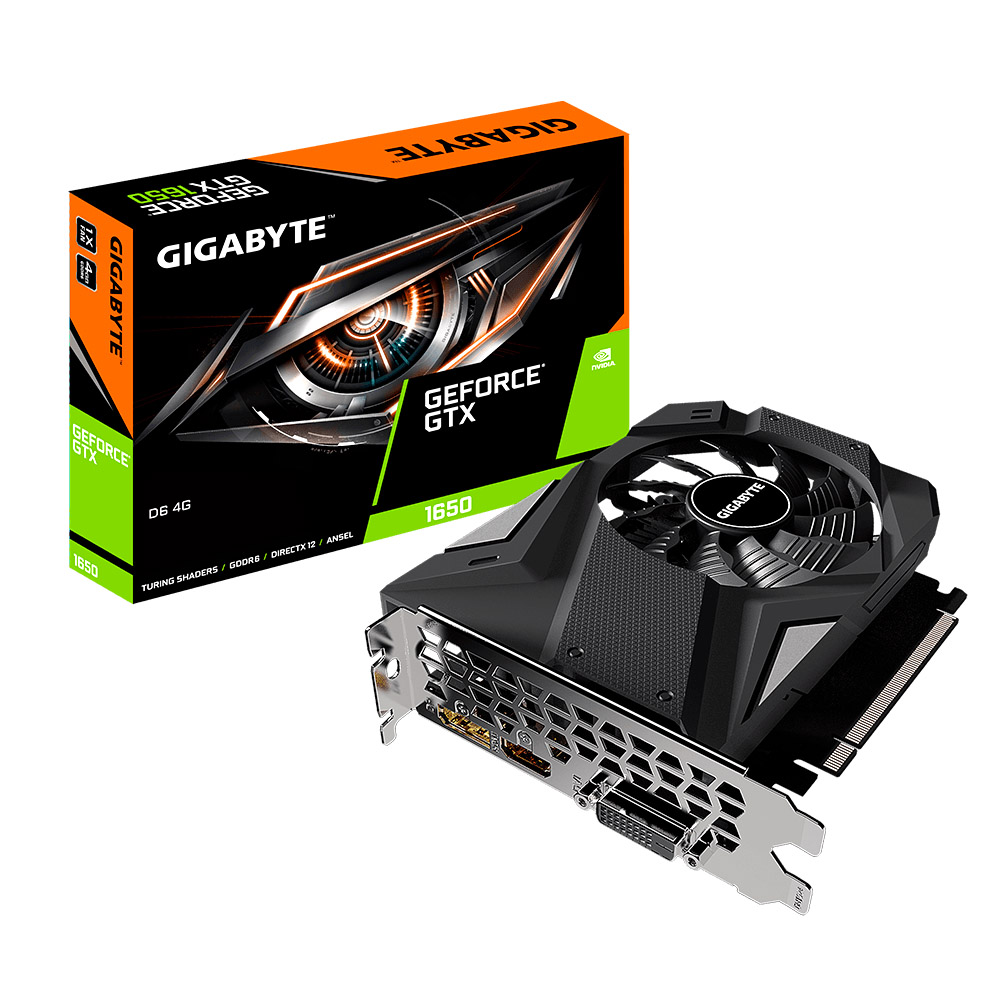

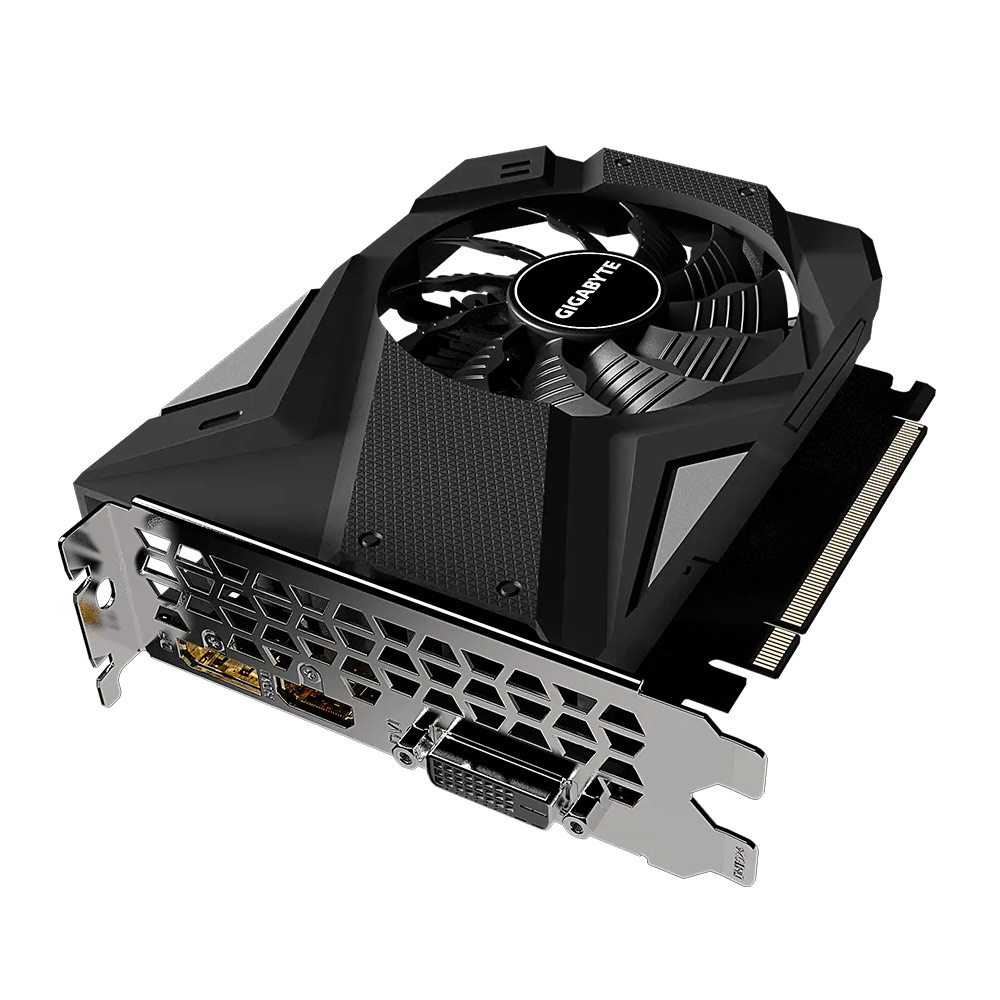

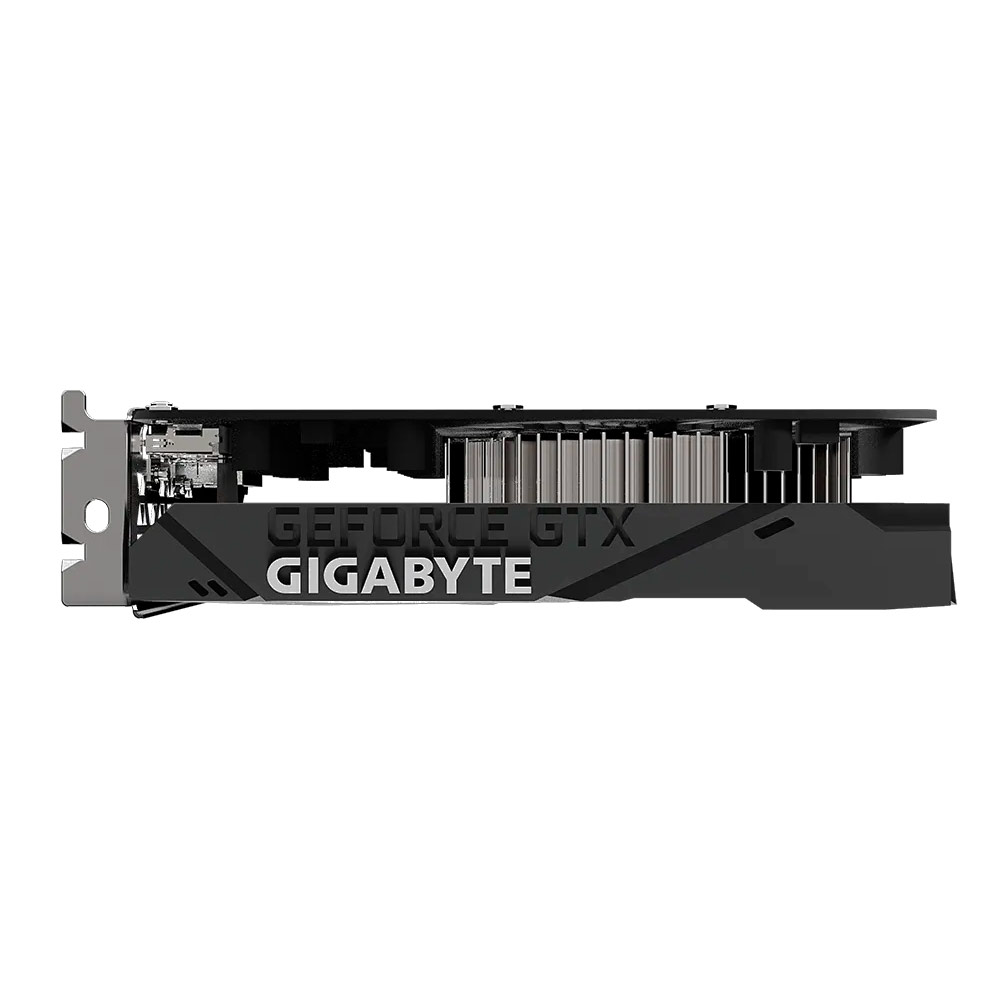

Gigabyte GeForce® GTX 1650 D6 4G (rev. 1.0)

Features

  • Powered by GeForce® GTX 1650
  • NVIDIA Turing™ architecture and GeForce Experience™
  • Integrated with 4GB GDDR6 128bit memory interface
  • 80mm unique blade fan
  • 170 mm compact card size

Core Clock

  • 1590 MHz
SKU: GV-N1656D6-4GD Categories: , , ,

Specifications

Graphics Processing GeForce® GTX 1650
Core Clock 1590 MHz
CUDA® Cores 896
Memory Clock 12000 MHz
Memory Size 4 GB
Memory Type GDDR6
Memory Bus 128 bit
Memory Bandwidth (GB/sec) 192 GB/s
Card Bus PCI-E 3.0 x 16
Digital max resolution 7680×4320@60Hz
Multi-view 3
Card size L=152 W=114 H=36 mm
PCB Form ATX
DirectX 12
OpenGL 4.6
Recommended PSU 300W
Power Connectors N/A
Output

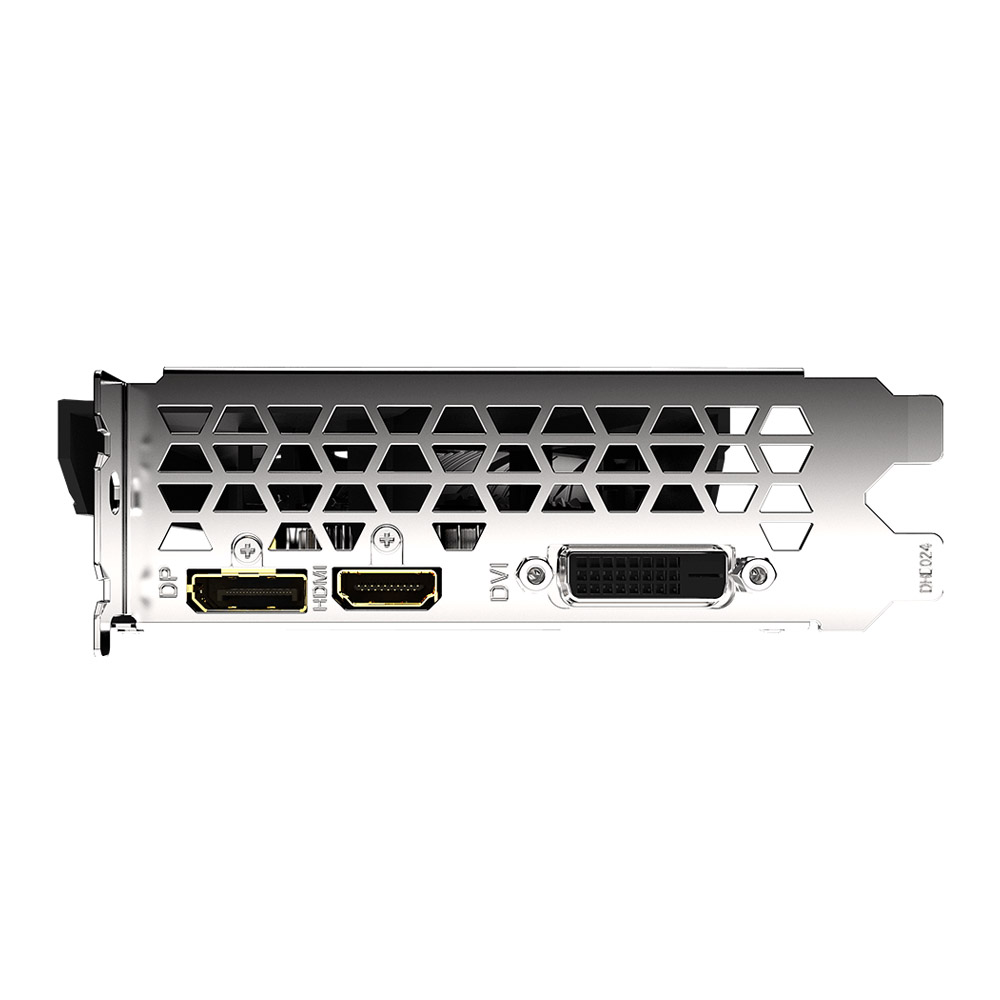

DisplayPort 1.4 *1 HDMI 2.0b *1 DVI-D *1
SLI Support No
Accessories Quick guide



GIGABYTE CUSTOM-DESIGNED COOLING SYSTEM

GIGABYTE Custom-designed cooling system features a 80mm unique blade fan, delivering an effective heat dissipation capacity for higher performance at lower temperatures.



COMPACT SIZE FOR EASY INSTALLATION

With less than 170mm in length, the graphics card can be easily installed in any small chassis.

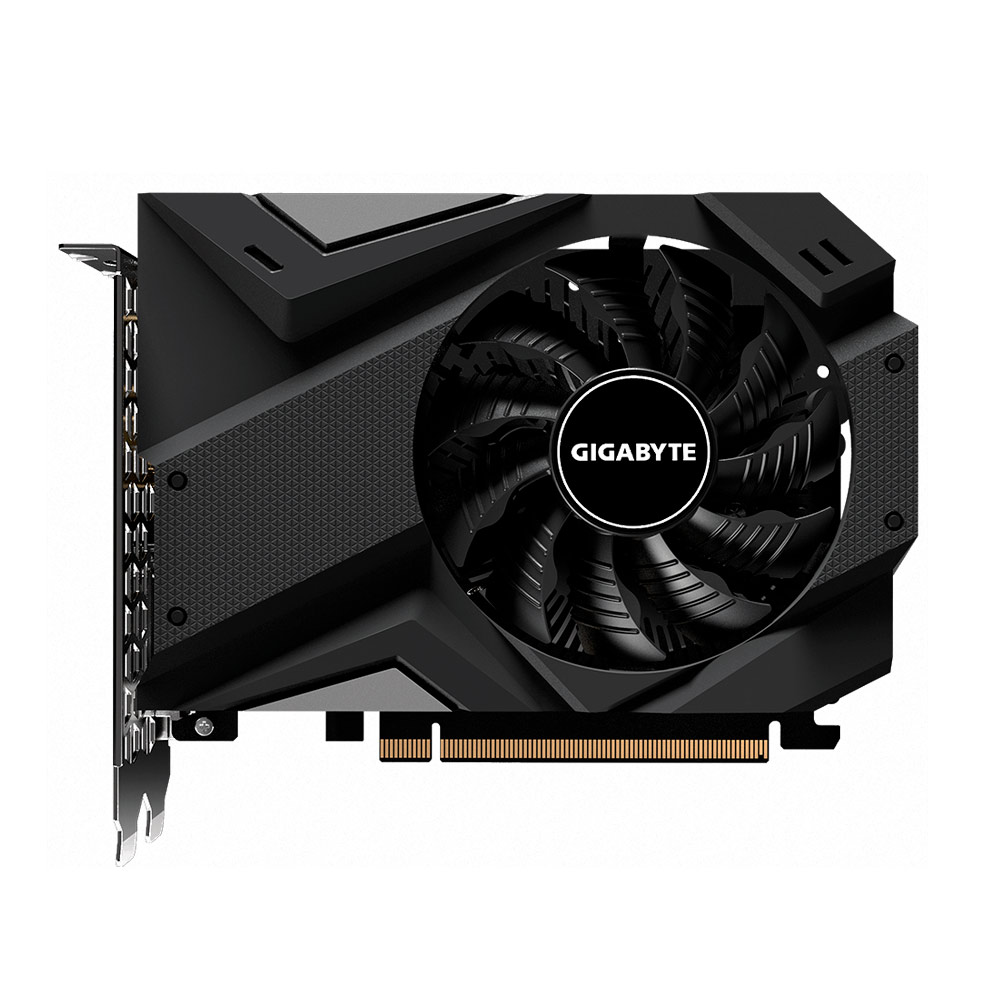

UNIQUE BLADE FAN

The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.



ULTRA COOLING

Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.

LOW POWER LOSS

Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.

LONGER LIFE

Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.



FRIENDLY PCB DESIGN

Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.



IN TOTAL COMMAND

The interface and functionality of the software is subject to each model.



AORUS ENGINE

The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.

Weight 0.5 kg
