Gigabyte GeForce GTX 1660 SUPER OC 6G + B550 AORUS PRO AC (rev. 1.x) – AMD B550 Chipset

SKU: Gigabyte 1660 s + b550 Categories: , , , ,

Gigabyte GeForce GTX 1660 SUPER OC 6G



Features
  • Powered by GeForce® GTX 1660 SUPER™
  • NVIDIA Turing™ architecture and GeForce Experience™
  • Integrated with 6GB GDDR6 192-bit memory interface
  • WINDFORCE 2X Cooling System with alternate spinning fans
  • 90 mm unique blade fans
  • Protection Back Plate
Core Clock
  • 1830 MHz (Reference Card: 1785 MHz)
Specification:
  • Graphics Processing: GeForce® GTX 1660 SUPER™
  • Core Clock: 1830 MHz (Reference Card: 1785 MHz)
  • CUDA® Cores: 1408
  • Memory Clock: 14000 MHz
  • Memory Size: 6 GB
  • Memory Type: GDDR6
  • Memory Bus: 192 bit
  • Memory Bandwidth (GB/sec): 336 GB/s
  • Card Bus: PCI-E 3.0 x 16
  • Digital max resolution: 7680×4320@60Hz
  • Multi-view: 4Card size:L=225.65 W=122.02 H=40.5 mm







AMD B550 AORUS Motherboard with True 12+2 Phases Digital VRM, Fins-Array Heatsink, Direct-Touch Heatpipe, Dual PCIe 4.0/3.0 x4 M.2 with Thermal Guards, Intel® 802.11ac Wireless, 2.5GbE LAN, RGB FUSION 2.0, Q-Flash Plus



  • Supports AMD Ryzen™ 5000 Series / 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
  • True 12+2 Phases Digital VRM Solution with 50A DrMOS
  • Advanced Thermal Design with Fins-Array Heatsink and Direct Touch Heatpipe
  • Ultra Durable™ PCIe 4.0 Ready x16 Slot
  • Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guards
  • Onboard Intel® Dual Band 802.11ac & BT 4.2 Wireless with AORUS Antenna
  • AMP-UP Audio with ALC1220-VB and WIMA Capacitors for Rear 120dB SNR
  • Blazing Fast 2.5GbE LAN with Bandwidth Management
  • USB 3.2 Gen2 Type-C™ & HDMI Support
  • RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips



Specification:
  • CPU
    AMD Socket AM4, support for : AMD Ryzen™ 5000 Series / 3rd Generation AMD Ryzen™ processors / 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors
    (Please refer “CPU Support List” for more information.)
  • Chipset
    AMD B550
  • Memory
    4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    AMD Ryzen™ 5000 series Processors:
    Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
    3rd Gen AMD Ryzen™ Processors:
    Support for DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
    3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:
    Support for DDR4 5400(O.C.) / 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
    Dual channel memory architecture
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    (Please refer “Memory Support List” for more information.)
  • Onboard Graphics
    Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
    * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
    Maximum shared memory of 16 GB
  • Audio
    Realtek® ALC1220-VB codec
    * The back panel line out jack supports DSD audio.
    High Definition Audio
    2/4/5.1/7.1-channel
    Support for S/PDIF Out
  • LAN
    Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
  • Wireless Communication module
    Wi-Fi moduleWIFI 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
    BLUETOOTH 4.2
    Support for 11ac wireless standard and up to 433 Mbps data rate
    * Actual data rate may vary depending on environment and equipment.
  • Expansion Slots
    1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode
    3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:Supporting PCIe 3.0 x4 mode
    * The M2B_SB connector shares bandwidth with the PCIEX4 slot. The PCIEX4 slot will become unavailable when an SSD is installed in the M2B_SB connectors.
    1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:Supporting PCIe 3.0 x2 mode
    * The PCIEX2 slot shares bandwidth with the SATA3 4, 5 connectors. The PCIEX2 slot will become unavailable when a device is installed in the SATA3 4 or SATA3 5 connector.
    2 x PCI Express x1 slots
  • Storage Interface
    1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs
    3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
    1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:support PCIe 3.0 x4/x2 SSDs
    6 x SATA 6Gb/s connectors, integrated in the Chipset:Support for RAID 0, RAID 1, and RAID 10
  • USB
    CPU:3 x USB 3.2 Gen 1 ports on the back panel
    1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
    Chipset:1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
    1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
    2 x USB 3.2 Gen 1 ports available through the internal USB header
    2 x USB 2.0/1.1 ports on the back panel
    Chipset+2 USB 2.0 Hubs:8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
  • Internal I/O Connectors
    1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    2 x M.2 Socket 3 connectors
    6 x SATA 6Gb/s connectors
    1 x CPU fan header
    1 x water cooling CPU fan header
    4 x system fan headers
    2 x system fan/water cooling pump headers
    1 x CPU cooler LED strip/RGB LED strip header
    2 x addressable LED strip headers
    2 x RGB LED strip headers
    1 x front panel header
    1 x front panel audio header
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
    2 x temperature sensor headers
    1 x Thunderbolt™ add-in card connector
    1 x Clear CMOS jumper
    1 x Thunderbolt header
    *All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

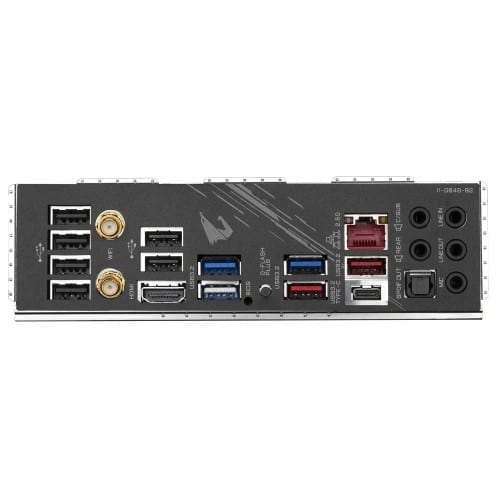

  • Back Panel Connectors
    1 x HDMI port
    2 x SMA antenna connectors (1T1R)
    3 x USB 3.2 Gen 1 ports
    1 x USB Type-C™ port, with USB 3.2 Gen 2 support
    2 x USB 3.2 Gen 2 Type-A ports (red)
    6 x USB 2.0/1.1 ports
    1 x Q-Flash Plus button
    1 x RJ-45 port
    1 x optical S/PDIF Out connector
    5 x audio jacks
  • I/O Controller
    iTE® I/O Controller Chip
  • H/W Monitoring
    Voltage detection
    Temperature detection
    Fan speed detection
    Water cooling flow rate detection
    Overheating warning
    Fan fail warning
    Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
  • BIOS
    1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
    Support for Q-Flash Plus
    Support for Q-Flash
    Support for Xpress Install
  • Bundled Software
    Norton® Internet Security (OEM version)
    XSplit Gamecaster + Broadcaster (12 months license)
    Realtek® 8125 Gaming LAN Bandwidth Control Utility
  • Operating System
    Support for Windows 10 64-bit
  • Form Factor
    ATX Form Factor; 30.5cm x 24.4cm
  • Remark
    Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors’ website or 3rd party website.
    Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
Weight 0.5 kg
