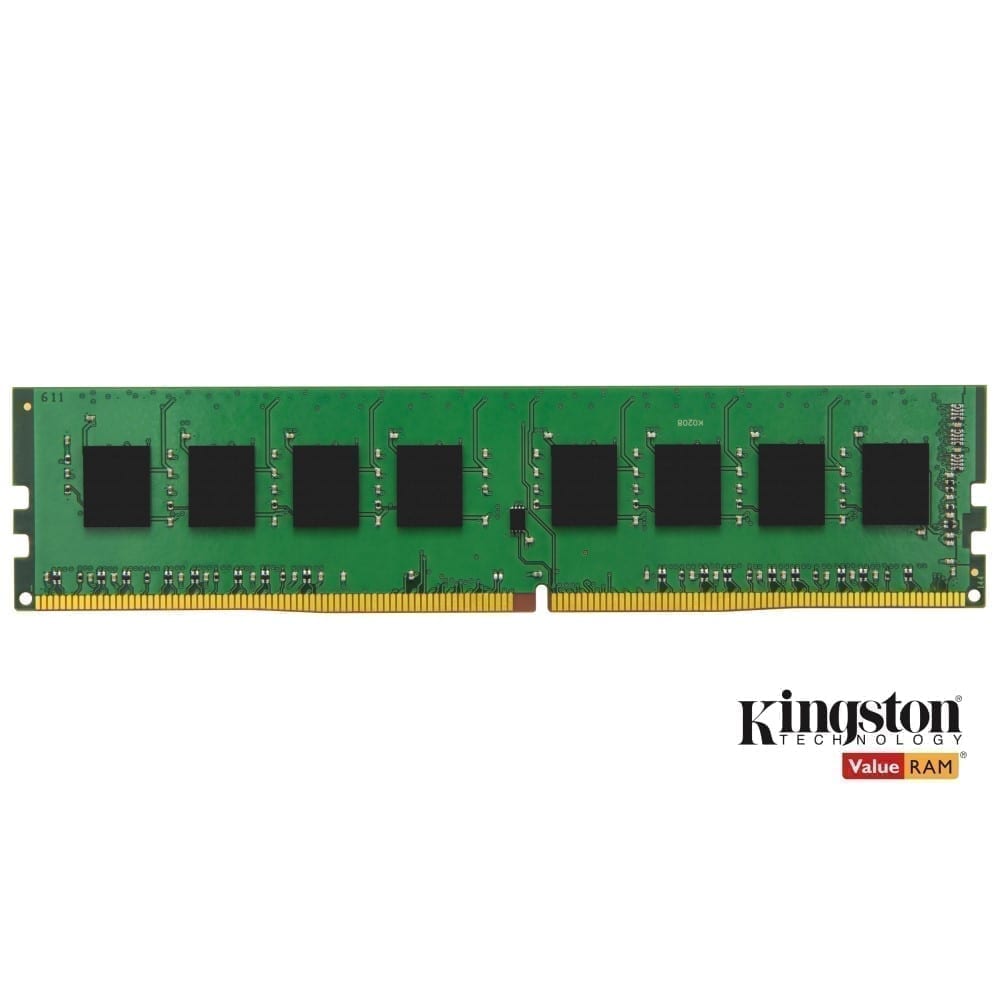

Kingston 2666MHz DDR4 Non-ECC UDIMM RAM

Out of stock

VALUERAM MEMORY

Kingston Technology offers a range of ValueRAM modules to ensure end users can make the most of out their desktop and notebook computers. Designed to comply with JEDEC standards, these products come with a lifetime warranty and top reliability ratings.

SKU: N/A Categories: ,

lowres-Desktop-memory-desktop-system-DDR-09-05-2013-23-59

Kingston Technology ValueRAM is the best source for industry standard desktop and notebook memory, supplying the most reliable product, supported by an outstanding warranty and free tech support. Kingston Technology’s ValueRAM desktop and notebook memory is recognised and validated on all of the desktop and notebook motherboard manufacturer’s web sites including Asus, MSI, Gigabyte and more. Not all desktop and notebook memory is created equal – Kingston Technology invests $millions to ensure the quality of its modules to reduce your total cost of ownership. All ValueRAM desktop and notebook memory is design proven in functional testing.  Kingston Technology’s strong industry alliances make ValueRAM the most reliable desktop and notebook memory you can buy.

lowres-Desktop-System-Install-DDR3-desktop-system-install-DDR-09-05-2013-23-59







Specifications:

16 GB:

ValueRAM’s KVR26N19S8/16 is a 2G x 64-bit (16GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 1Rx8, memory module, based on eight 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

General Information
Product Name 16GB 2666MHZ DDR4 Non-ECC CL19 UDIMM 1RX8
Manufacturer Part Number KVR26N19S8/16
Product Line ValueRAM
Product Type 1Rx8, Memory Module
Technical Information
Memory Size 16 GB
Memory Technology DDR4 SDRAM
Memory Voltage 1.2 V
Memory Speed 2666 MHz
Memory Standard DDR4-2666/PC4-21333
Error Checking Non-ECC
Signal Processing Unbuffered
CAS Latency CL19
Physical Characteristics
Number of Pins 288-pin
Form Factor UDIMM
Warranty
Limited Warranty Lifetime
Miscellaneous
Environmentally Friendly Yes
Country of Origin Ireland
Other Information
Product Family ValueRAM
UL Rating                                                                                                   :94 V – 0
Operating Temperature 0C to +85C
Storage Temperature -55C to +100C
timing 19-19-19 at 1.2V
FBGA components based on eight 2G x 8-bit





4GB:
ValueRAM’s KVR26N19S6/4 is a 512M x 64-bit (4GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 1Rx16, memory module, based on four 512M x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
General Information
Product Name 16GB 2666MHZ DDR4 Non-ECC CL19 UDIMM 1RX8
Manufacturer Part Number KVR26N19S6/4
Product Line ValueRAM
Product Type 1Rx16, Memory Module
Technical Information
Memory Size 4 GB
Memory Technology DDR4 SDRAM
Memory Voltage 1.2 V
Memory Speed 2666 MHz
Memory Standard DDR4-2666/PC4-21333
Error Checking Non-ECC
Signal Processing Unbuffered
CAS Latency CL19
Physical Characteristics
Number of Pins 288-pin
Form Factor UDIMM
Warranty
Limited Warranty Lifetime
Miscellaneous
Environmentally Friendly Yes
Country of Origin Ireland
Other Information
Product Family ValueRAM
UL Rating                                                                                                   :94 V – 0
Operating Temperature 0C to +85C
Storage Temperature -55C to +100C
timing 19-19-19 at 1.2V
FBGA components based on four 512M x 16-bit
Weight 0.5 kg
Capacity

4GB, 16GB
