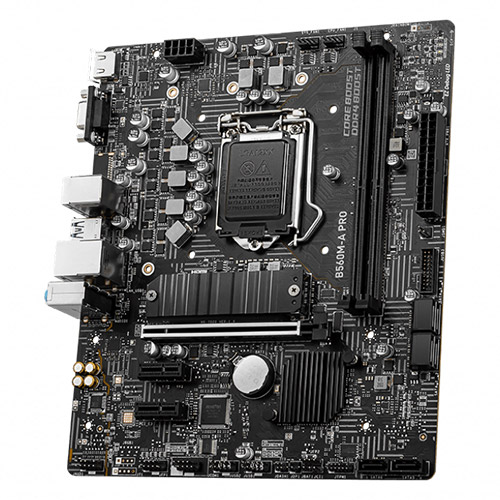

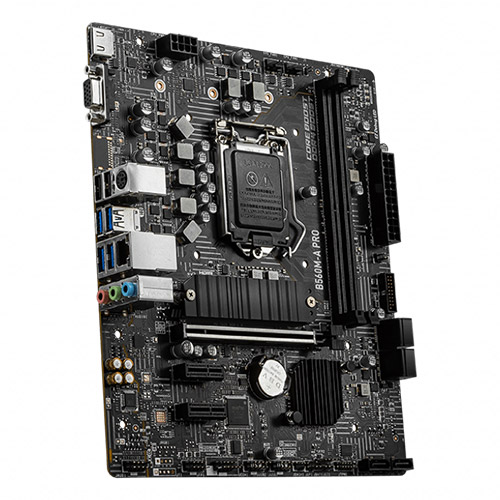

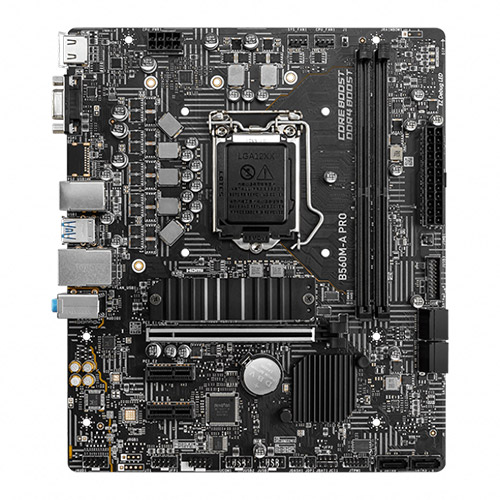

MSI B560M-A PRO 911-7D20-002 Motherboard

  • Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 5200(OC) MHz
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance.
  • DDR4 Boost : Advanced technology to deliver pure data signals for the best performance and stability.
  • Lightning Fast Experience : PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
  • 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
SKU: 911-7D20-002 Categories: , ,

Specification:

CPU (Max Support) i9
Socket 1200
Chipset Intel® B560 Chipset
DDR4 Memory 5200(OC) / 5066(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4533(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3333(OC) / 3200(JEDCE & POR) / 3000(JEDCE & POR) / 2933(JEDCE & POR) / 2800(JEDCE & POR) / 2666(JEDCE & POR) / 2400(JEDCE & POR) / 2133(JEDCE & POR) MHz
Memory Channel Dual
DIMM Slots 2
Max Memory (GB) 64
PCI-E x16 1
PCI-E Gen Gen4
PCI-E x1 2
SATAIII 6
M.2 Slot 1
TPM (header) 1

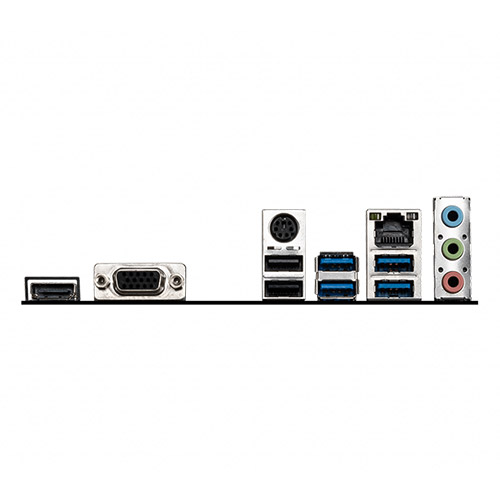

LAN 1x Realtek® 8125B 2.5Gbps LAN controller
USB 3.2 ports (Front) 2(Gen 1, Type A)
USB 3.2 ports (Rear) 4(Gen 1, Type A)
USB 2.0 ports (Front) 4
USB 2.0 ports (Rear) 2
Serial ports(Front) 1
Audio ports (Rear) Realtek® ALC897 Codec
VGA 1
HDMI 1
DirectX 12
Form Factor MATX
Operating System Support for Windows® 10 64-bit





PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.



M.2 SHIELD FROZR

World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.



HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.



A HUGE STEP OF DDR PERFORMANCE

MSI OC LAB does not merely work hard on extreme overclocking. Compare to B460 motherboard memory XMP profile, MSI does have great improvement on performance and efficiency for B560. Easy to enable XMP profile with auto power settings to get the best memory speed and stability.

Weight 0.5 kg
