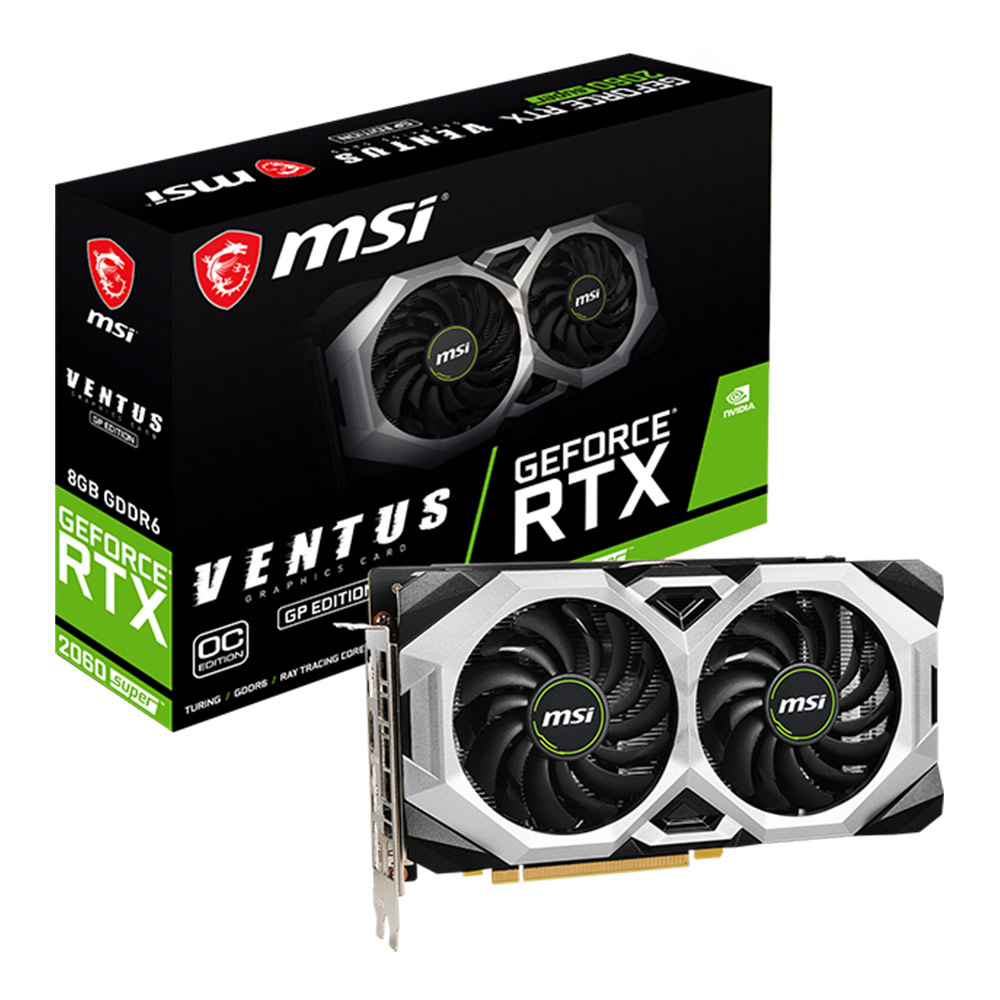

MSI GeForce RTX 2060 SUPER™ VENTUS GP OC – 912-V375-469
- Boost Clock / Memory Speed 1665 MHz / 14 Gbps
- 8GB GDDR6

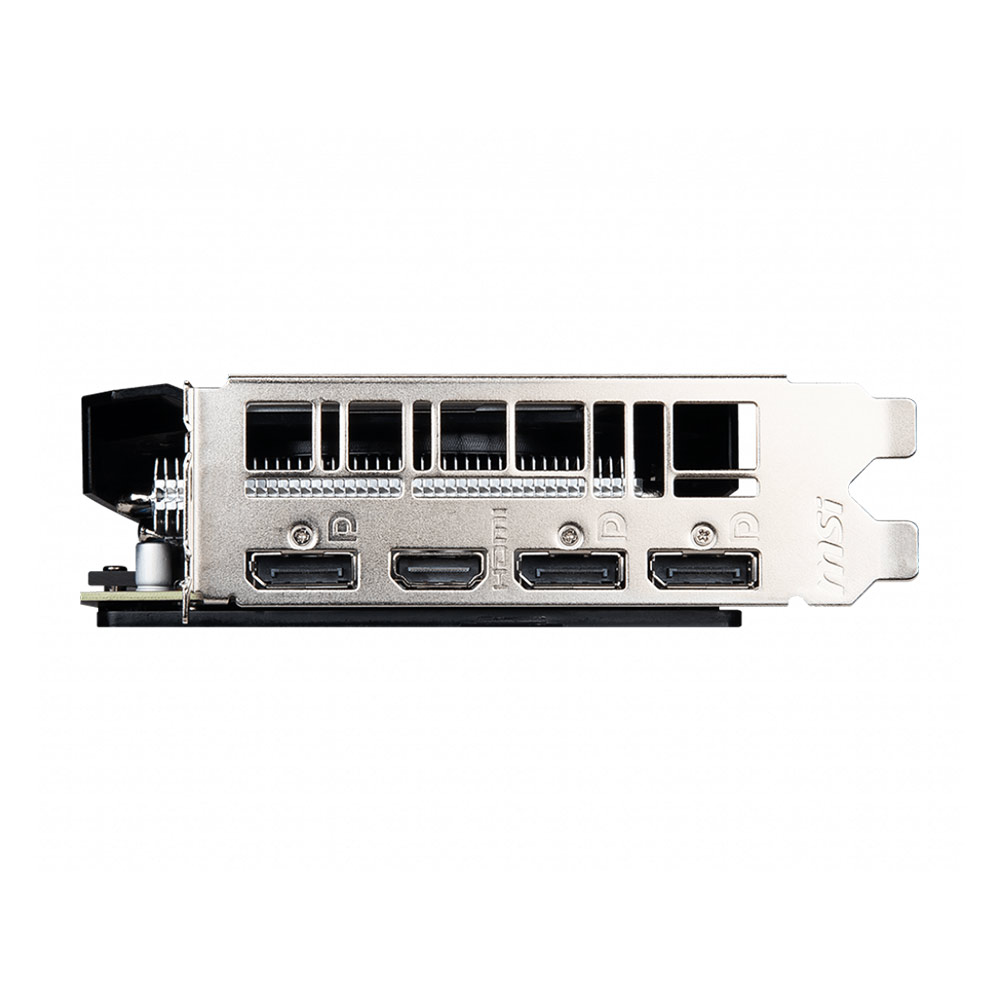

- DisplayPort x 3(v1.4a) HDMI x 1(Supports 4K@60Hz as specified in HDMI 2.0b)
- Dispersion fan blade: Steep curved blade accelerating the airflow
- Traditional fan blade: Provides steady airflow to massive heat sink below
Specifications
| Model Name |
GeForce® RTX 2060 SUPERTM VENTUS GP OC |
| Graphics Processing Unit |
NVIDIA® GeForce® RTX 2060 SUPER™ |
| Interface |
PCI Express x16 3.0 |
| Cores | 2176 Units |
| Core Clocks |
Boost:1665 MHz |
| Memory Speed | 14 Gbps |
| Memory | 8GB GDDR6 |
| Memory Bus | 256-bit |
| Output |
DisplayPort x 3 (v1.4a) HDMI x 1(Supports 4K@60Hz as specified in HDMI 2.0b) |
| HDCP Support | 2.2 |
| Power consumption | 184 W |
| Power connectors | 8-pin x 1 |
| Recommended PSU | 550 W |
| Card Dimension (mm) |
232x 127 x 42 mm |
| Weight (Card / Package) | 728g / 1161g |
| DirectX Version Support | 12 API |
| OpenGL Version Support | 4.5 |
| Maximum Displays | 4 |
| VR Ready | Y |
| G-SYNC technology | Y |
| Adaptive Vertical Sync | Y |
| Digital Maximum Resolution | 7680×4320 |
NVIDIA Turing™ Architecture
GeForce RTX is powered by Nvidia Turing, the world’s most advanced GPU architecture for gamers and creators. Get truly next-gen performance and features with dedicated AI and ray tracing cores for the ultimate experience.
Get SUPER Powers
The new GeForce RTX SUPER™ Series has even more cores and higher clocks, bringing you performance that’s up to 25% faster than the original RTX 20 Series and 6X faster than the previous-generation 10 Series GPUs. It’s time to gear up and get super powers
GeForce Experience
Capture and share videos, screenshots, and livestreams with friends. Keep your drivers up to date and optimize your game settings. GeForce Experience™ lets you do it all. It’s the essential companion to your GeForce graphics card.
PREMIUM DESIGN
A fresh new dual fan design, VENTUS proudly displays its industrial shapes in neutral colors to fit any build.
TORX FAN 2.0
Using two of the award-winning TORX Fans 2.0, MSI VENTUS graphics cards provide years of top-notch cooling performance.
AMPLIFIED PCB
Using thicker layers of copper enables faster and cleaner signal transmission for sustained performance.

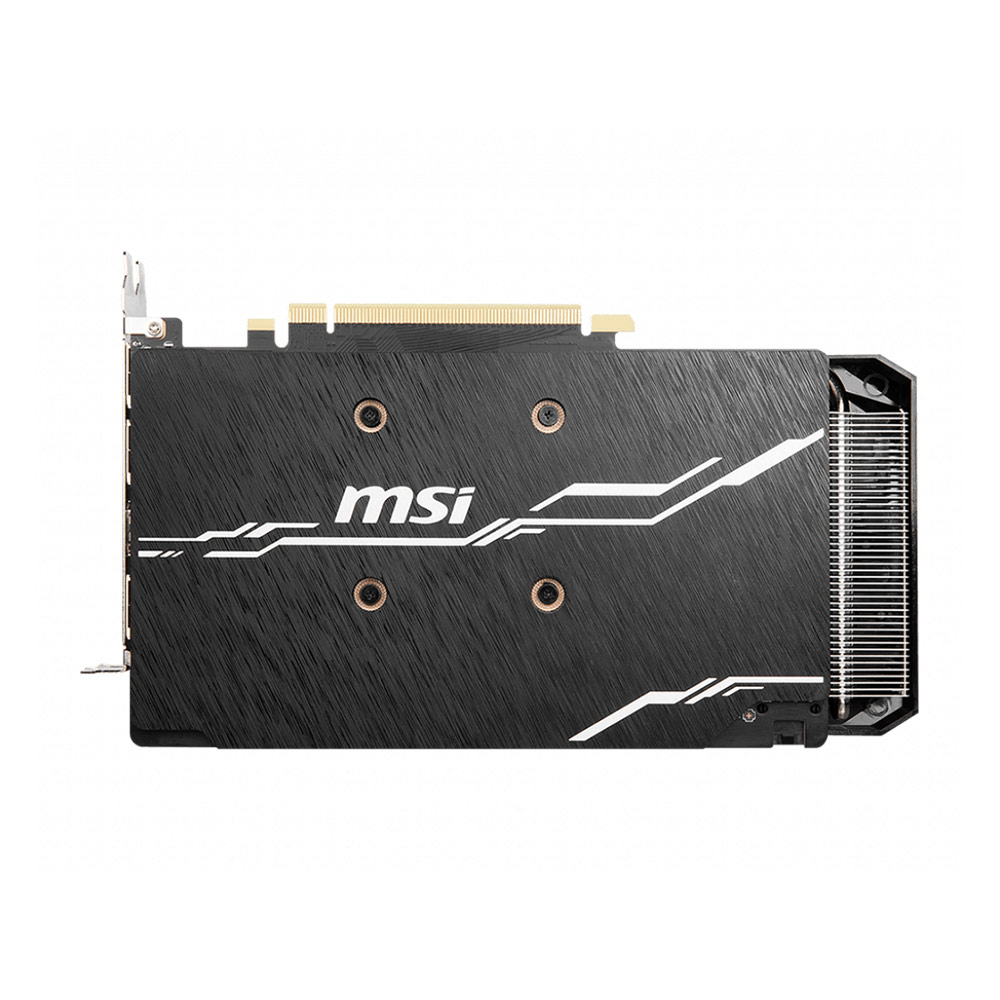

WE’VE GOT YOUR BACK
A sturdy backplate helps to strengthen the graphics card and complements the design to look even better.
THERMAL PADDING
Ample amounts of thermal pads are used to allow various components to transfer heat to the heatsink for better cooling.
DRAGON CENTER
To improve the experience with MSI software, we have embarked on a quest to consolidate as much of our software as possible into one unified suite. We are excited to share the first version of this gargantuan project which will be known as Dragon Center.
Eventually Dragon Center will be the only MSI software you need to install for full functionality of your MSI Desktop, Graphics Card, Motherboard or even Gaming Gear. Thanks to a modular concept, the application will automatically detect new MSI hardware once added. Based on the hardware in your system it will offer the relevant software drivers for your specific setup.
AFTERBURNER
MSI Afterburner is the world’s most recognized and widely used graphics card Overclocking software. It gives you full control of your graphics card and enables you to monitor your system’s key metrics in real-time.
OC SCANNER
The latest version of MSI Afterburner features OC Scanner for RTX 20 series graphics cards. OC Scanner is an automated function that will find the highest stable overclock settings for your card. Giving you a free performance boost for a smooth in-game experience thanks to higher FPS
| Weight | 0.5 kg |
|---|
