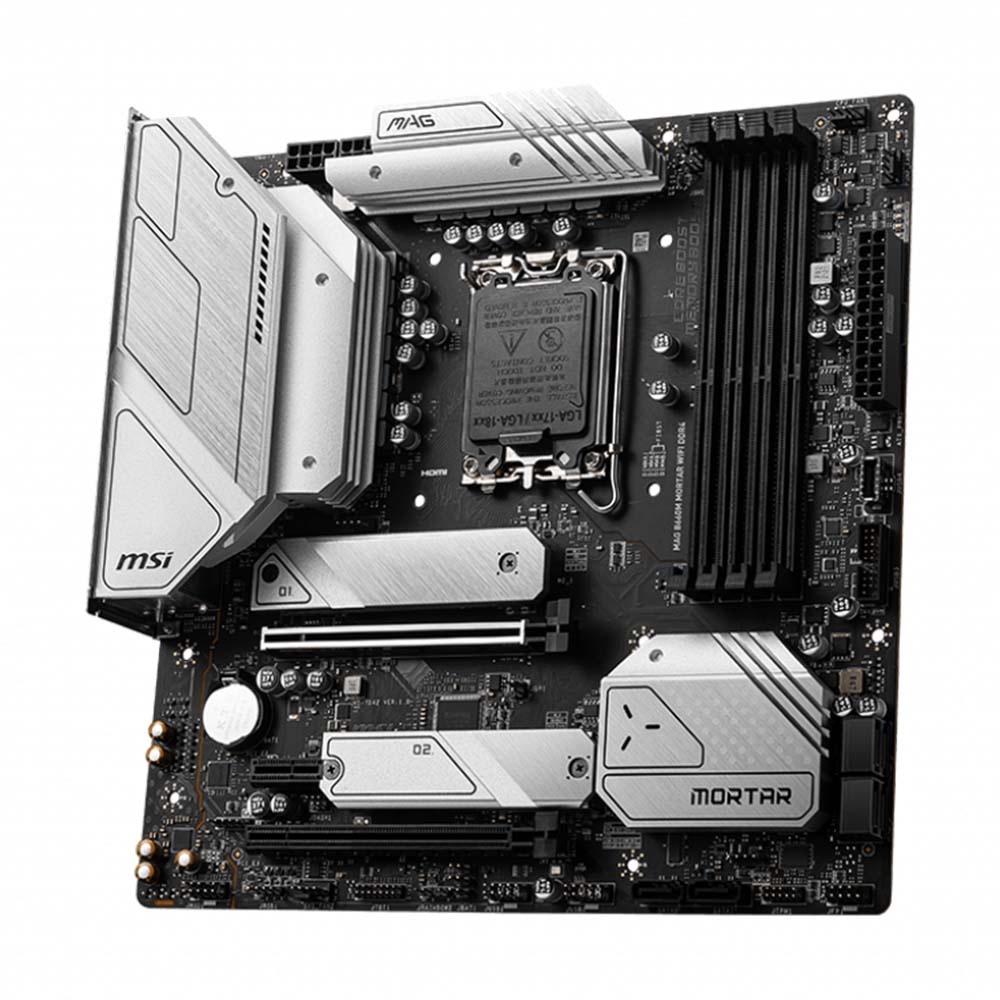

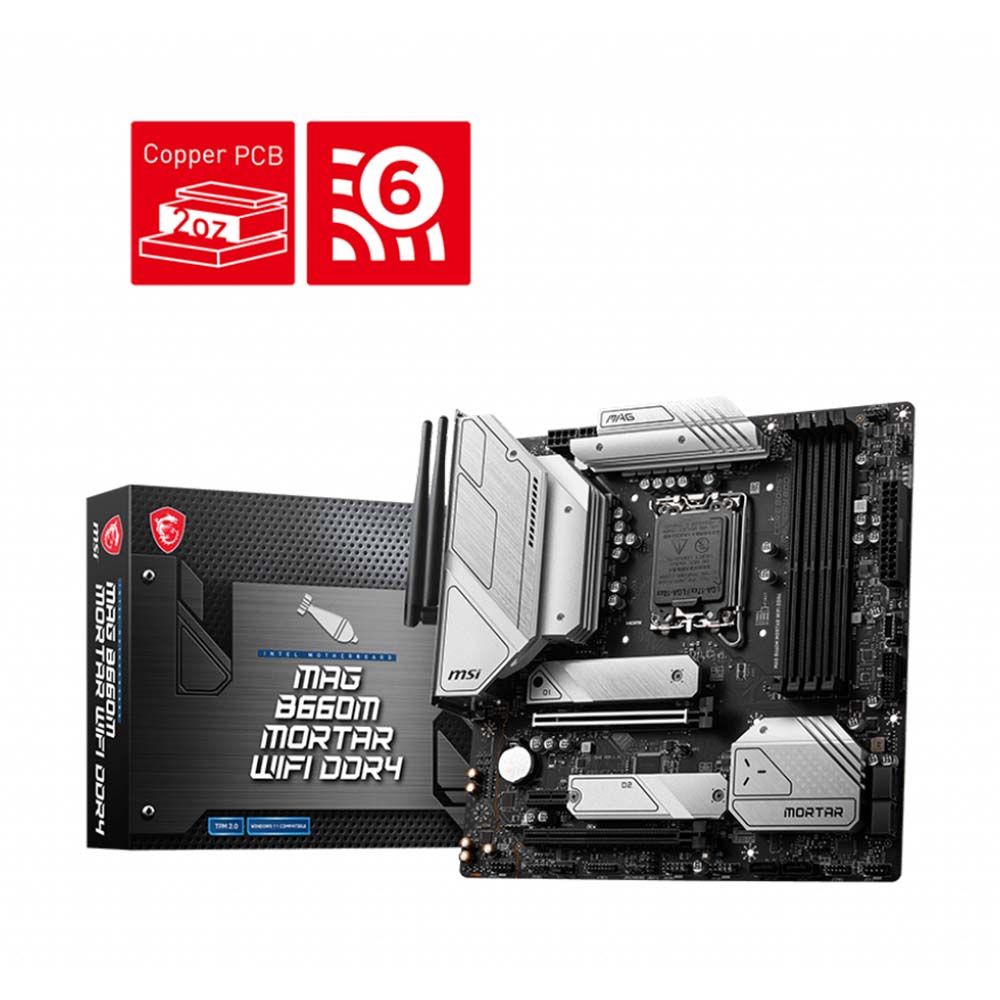

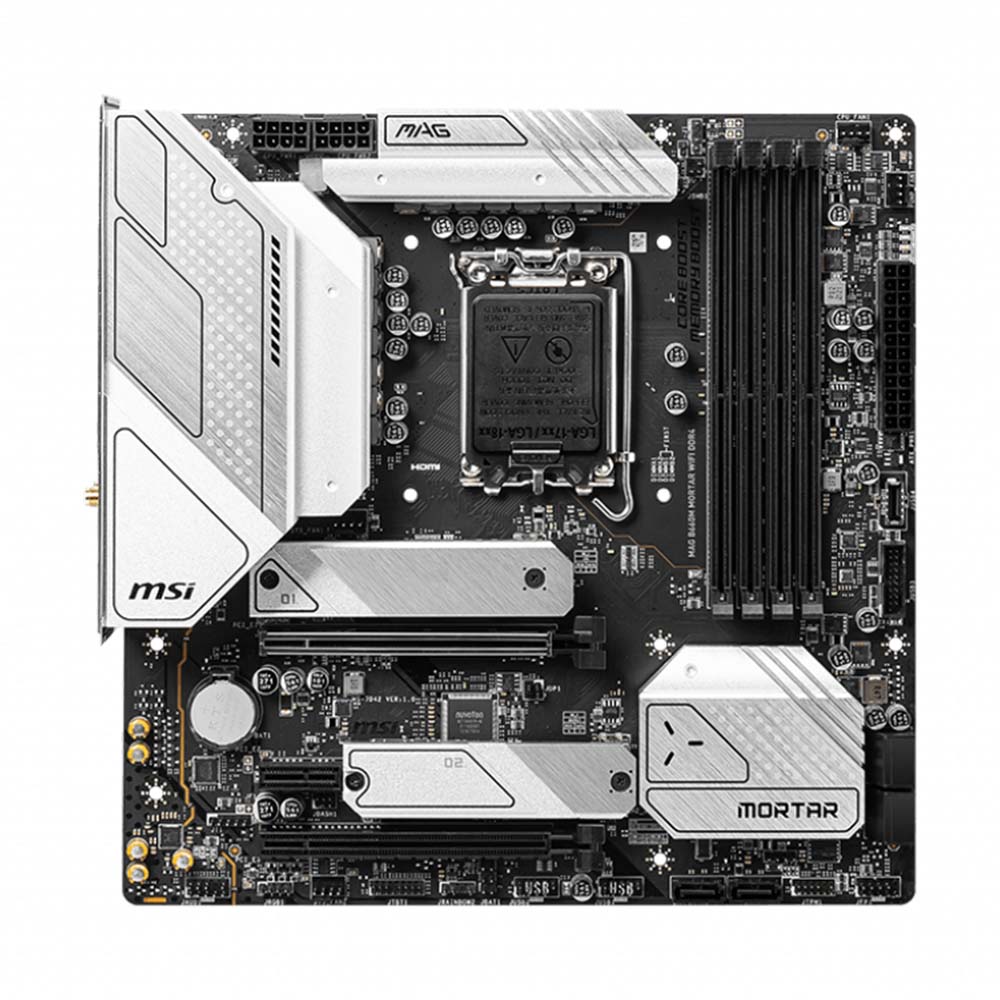

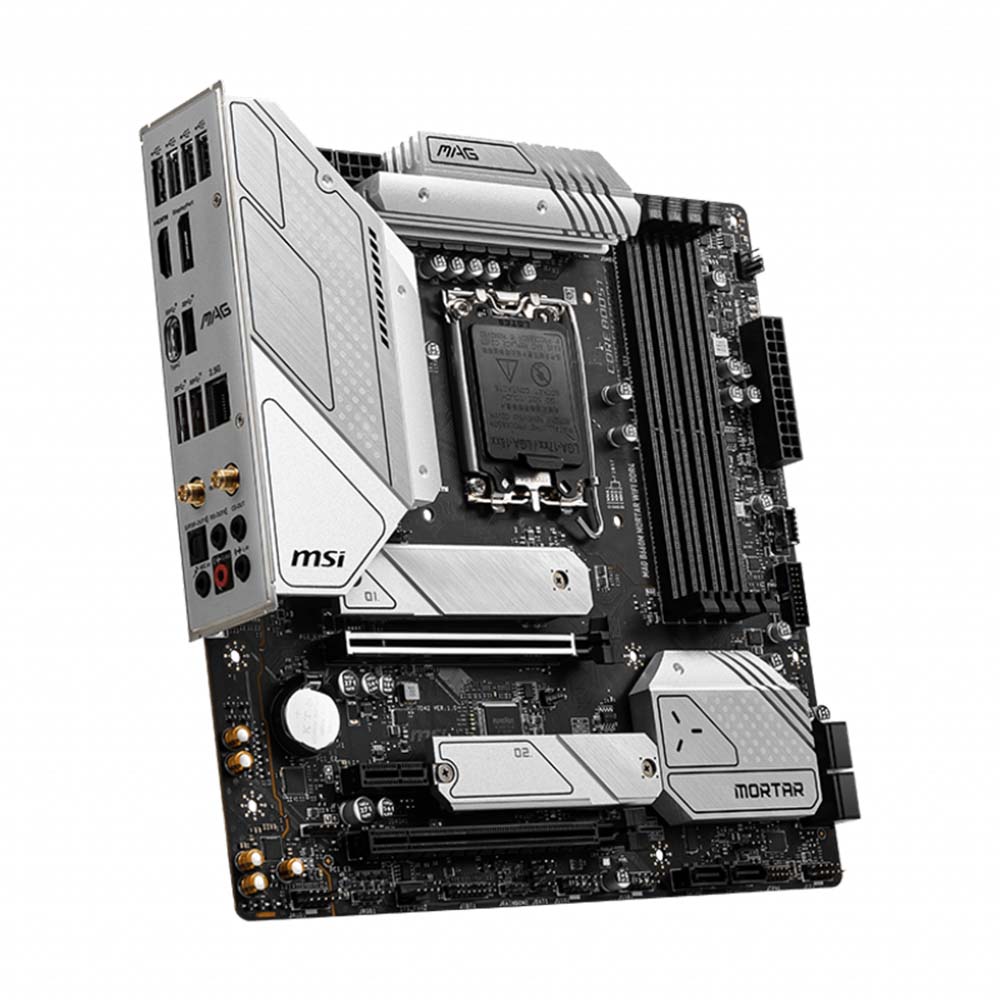

MSI MAG B660M MORTAR WIFI DDR4 Motherboard 911-7D42-004

  • CPU (Max Support) i9
  • Socket 1700
  • Chipset Intel® B660 Chipset
  • DDR4 Memory
  • Memory Channel Dual
  • DIMM Slots 4
  • Max Memory (GB) 128
SKU: 911-7D42-035 Categories: , ,

Specifications

CPU (Max Support) i9
Socket 1700
Chipset Intel® B660 Chipset
DDR4 Memory
4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
Memory Channel Dual
DIMM Slots 4
Max Memory (GB) 128
PCI-E x16 2
PCI-E x1 1
SATAIII 6
M.2 Slot 2
RAID 0/1/5/10
LAN 1x Realtek® 8125BG 2.5G LAN
WiFi & Bluetooth Intel® Wi-Fi 6 module
USB 3.2 ports (Front) 1(Gen 2, Type C), 2(Gen 1, Type A)

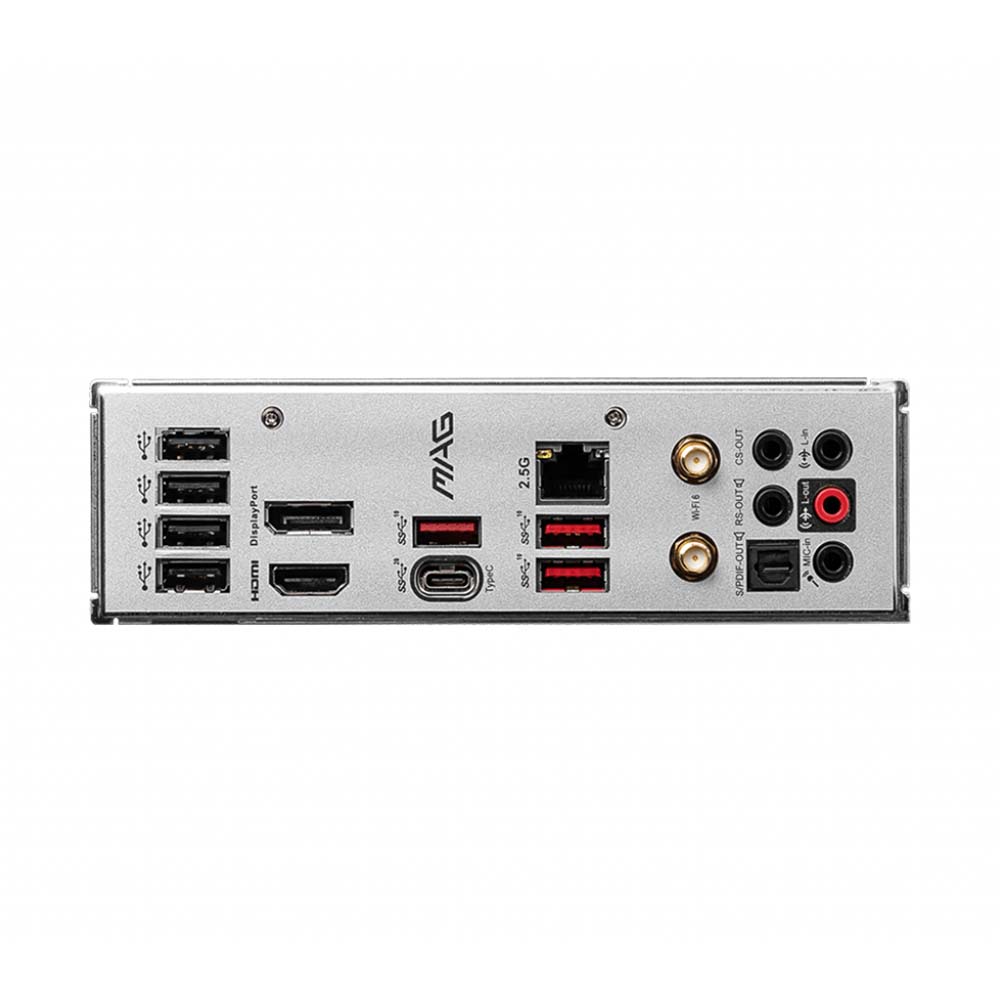

USB 3.2 ports (Rear)
1(Gen 2×2, Type C), 3(Gen 2, Type A)
USB 2.0 ports (Front) 4
USB 2.0 ports (Rear) 4
Audio ports (Rear) Realtek® ALC1200 Codec
DisplayPort 1
HDMI 1
DirectX 12
Form Factor mATX
CrossFire Y
Operating System
Support for Windows® 11 64-bit, Windows® 10 64-bit





THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE

With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end Intel CPU to run in full speed with MSI motherboards.



FULLY CONTROLLABLE IN BIOS AND SOFTWARE

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.



M.2 SHIELD FROZR

World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.



FROZR AI COOLING

Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.



OPTIMIZED FOR WATER COOLING

Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.



LIGHTNING GEN 4 M.2

Utilizing 12th Gen Intel processors, MSI B660 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.



HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.



  • Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
  • Supports DDR4 Memory, up to 4800+(OC) MHz
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • 2.5G LAN and Intel Wi-Fi Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
  • Lightning USB 20G: Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
  • AUDIO BOOST: Reward your ears with studio grade sound quality
  • Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire™



Weight 0.5 kg
