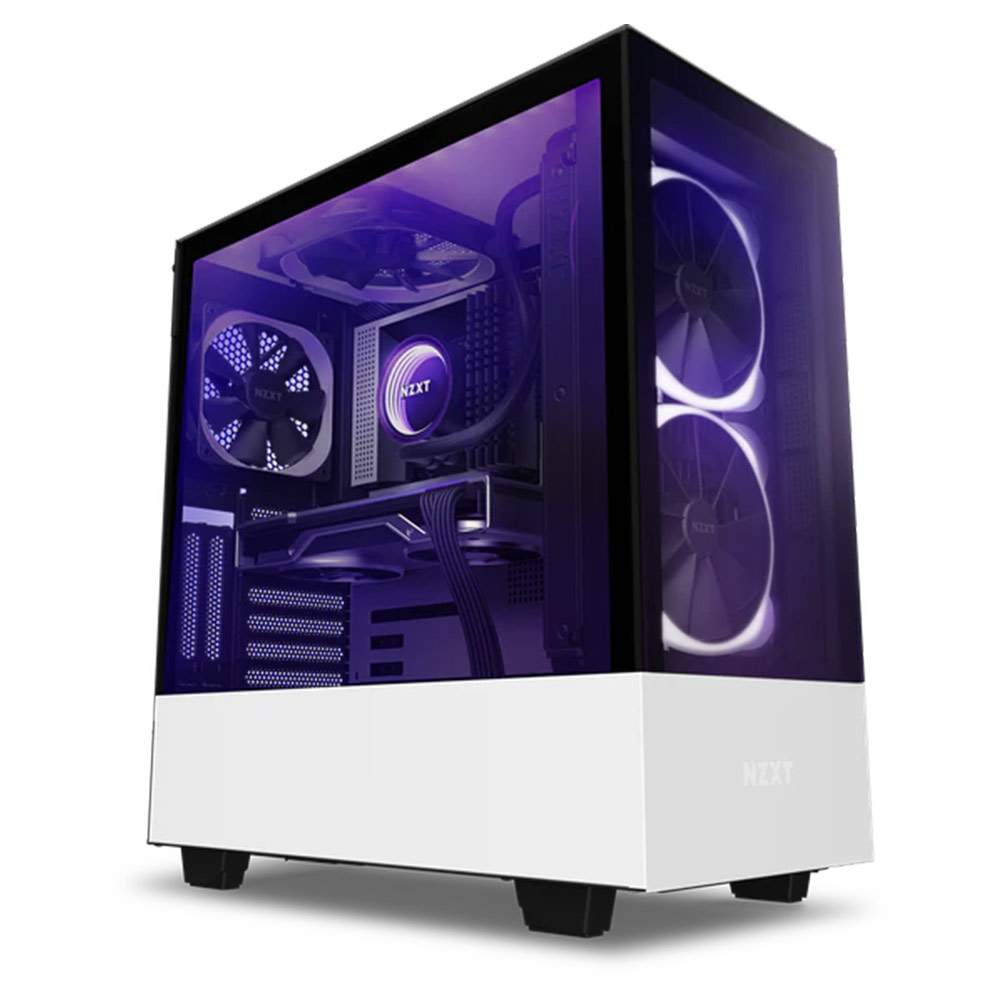

NZXT H510 Elite Tower Case – White – CA-H510E-W1

  • Two tempered glass panels for showcasing stunning RGB builds.
  • Two Aer RGB 2 fans and one RGB LED are included
  • Removable radiator mounting bracket and simple-to-use SSD trays
  • Patented cable management system
  • Smart Device 2 with two RGB lighting channels and three fan channels that support 0dB modes for voltage-regulated or PWM fans
  • USB 3.1 Gen 2-compatible USB-C connector
  • Iconic cable management bar
SKU: CA-H510E-W1 Categories: , ,

Specifications

Key Specs Motherboard Support Mini-ITX, MicroATX, ATX Enclosure Type Compact Mid-Tower Case Material SGCC Steel, Tempered Glass
Dimensions Height 460mm / 18.11 inches Width 210mm / 8.27 inches Depth 428mm / 16.85 inches Weight 7.5 kg / 16.53 lb
Compatibility & Clearance Max CPU Cooler Clearance 165mm Max GPU Clearance 338 – 368mm Front Fan & Radiator Clearance 60mm Vertical GPU Clearance 50.8mm Cable Management 19 – 23mm
Front I/O Ports USB 3.2 Gen 2 Type-A 1 USB 3.2 Gen 1 Type-C 1 Headset Audio Jack 1
Smart Device Fan Channels 3 (10W max per channel) NZXT RGB Connector 2 (Support up to 40 LEDs)
Expansion Slots Standard 7 Vertical 2
Drive Bays 2.5″ 2 + 1 3.5″ 2 + 1
Fan Support Front 2 x 120mm / 2 x 140mm Top 1 x 120mm / 1 x 140mm Rear 1 x 120mm Filters All air intakes
Radiator Support Front 280mm Top – Rear 120mm
Fan Specs Model Aer RGB 2 140mm Speed 500 – 1,500 ± 300RPM Airflow 30.39 – 91.19 CFM Static Pressure 0.17 – 1.52 mm-H₂O Noise 22 – 33 dBA Fan Connector 4-pin PWM
Fan Specs Model Aer P 140mm (Case Version) Speed 1,000 ± 200RPM Airflow 68.95 CFM Noise 28 dBA Fan Connector 3-pin
Fan Specs Model Aer P 120mm (Case Version) Speed 1,200 ± 200RPM Airflow 50.42 CFM Noise 28 dBA Fan Connector 3-pin
General  Model Number CA-H510E-W1 UPC 815671015112 EAN 5060301695294



Details

This compact mid-tower is ideal for highlighting RBG-focused builds with a front tempered glass panel that showcases included Aer 2 RGB fans along with the easy-to-build-in features of the H510.
  • Two tempered glass panels for showcasing stunning RGB builds.
  • Two Aer RGB 2 fans and one RGB LED are included
  • Removable radiator mounting bracket and simple-to-use SSD trays
  • Patented cable management system
  • Smart Device 2 with two RGB lighting channels and three fan channels that support 0dB modes for voltage-regulated or PWM fans
  • USB 3.1 Gen 2-compatible USB-C connector
  • Iconic cable management bar



Highlights

  • AER 2 RGB Fans
  • Up to 280mm Radiator Support
  • Built-in Cable Management
Weight 0.5 kg
