NZXT Kraken Z53 RGB 240mm Liquid Cooler with LCD Display – RL-KRZ53-R1

  • 2.36” LCD screen capable of displaying 24-bit color
  • Customize display with intuitive NZXT CAM controls
  • NZXT RGB Connector for NZXT RGB accessories
  • Two 120mm Aer RGB 2 radiator fans with fluid dynamic bearing
  • Fine nylon mesh sleeves strengthens rubber tubing to protect from leaks
  • LGA 1700 Bracket Request Form
SKU: RL-KRZ53-R1 Categories: , ,

Specifications

Water Block Dimensions Diameter: 79mm / H: 52mm Material (Block) Copper Material (Housing) Plastic
Pump Motor Speed 800 – 2,800 ± 300 RPM Power 12V DC, 0.3A
Radiator Dimensions 123 x 275 x 30mm Material Aluminum
Tube Length 400mm Material Ultra-low Evaporation Rubber with Nylon Braided Sleeve
Cap Material Aluminum, Plastic Fan Control Yes NZXT RGB Channel Connector 1 Rotation Orientation Software adjustable Default, +90, +180, and -90 Degrees
LCD Display Panel Active Area 2.36” (60mm) Diameter Color 24-bit True Color LCD Resolution 320 x 320px Brightness 650 cd/m²
Fan Specs Model Aer RGB 2 120mm Quantity 2 Dimension 120 x 120 x 26mm Speed 500 – 1,500 ± 300RPM Airflow 17.48 – 52.44 CFM Air Pressure 0.14 – 1.35 mm-H₂O Noise 22 – 33 dBA Bearing Fluid Dynamic Bearing Power Consumption 12V DC, 0.18A, 2.2W Fan Connector 4-pin PWM Life 60,000 hours / 6 Years
Compatible Socket & CPU Intel Socket LGA 1200, 115X, 1366, 2011, 2011-3, 2066 AMD AMD Socket AM4, sTRX4*, TR4* (*Threadripper bracket not included)
General  Model Number RL-KRZ53-RW (White) / RL-KRZ53-R1 (Black) UPC 815671016645 (White) / 815671016614 (Black) EAN 5060301696567 (White) / 5060301696536 (Black)



Details

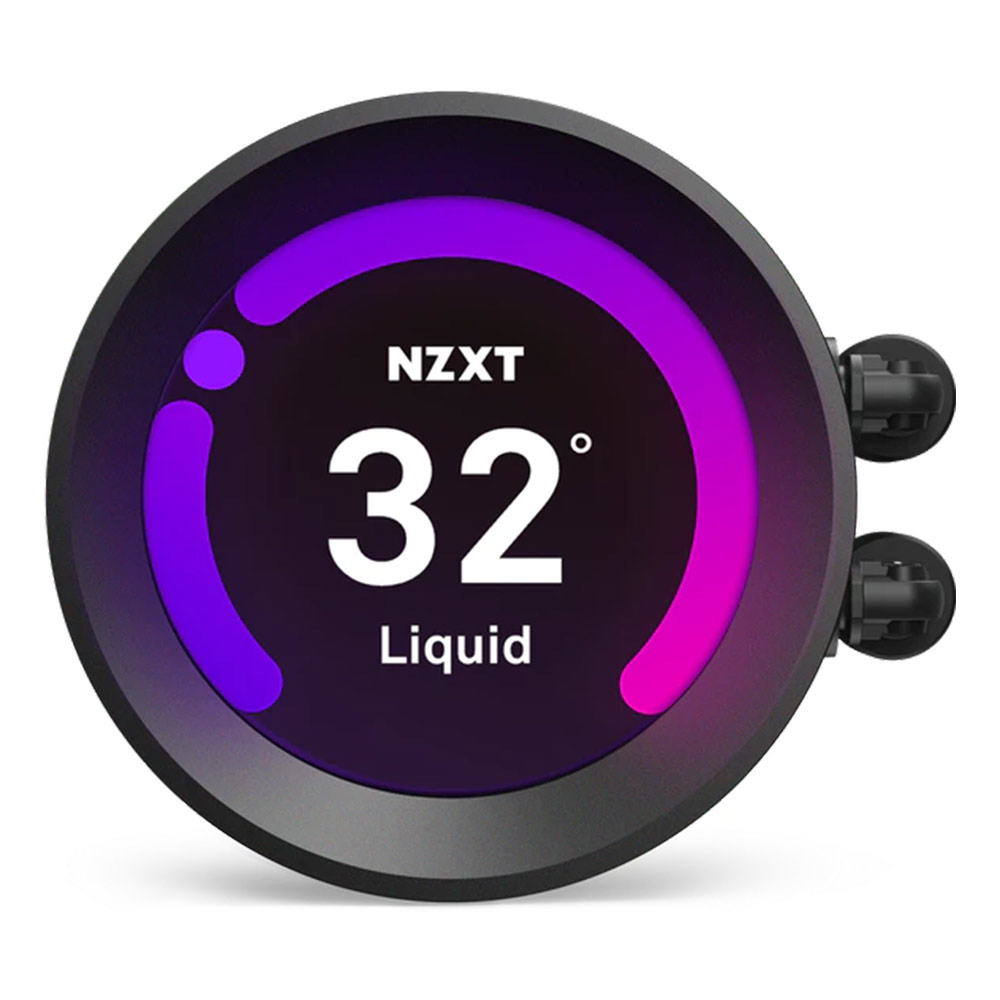

This All-in-One (AIO) liquid cooler is designed with the ability to fit comfortably in most cases. Show CPU/GPU temperatures or customize with GIFs with the Kraken Z LCD display.
  • 2.36” LCD screen capable of displaying 24-bit color
  • Customize display with intuitive NZXT CAM controls
  • NZXT RGB Connector for NZXT RGB accessories
  • Two 120mm Aer RGB 2 radiator fans with fluid dynamic bearing
  • Fine nylon mesh sleeves strengthens rubber tubing to protect from leaks
  • LGA 1700 Bracket Request Form

The display orientation can be adjusted within CAM from Default to a -90° orientation

Weight 0.5 kg
