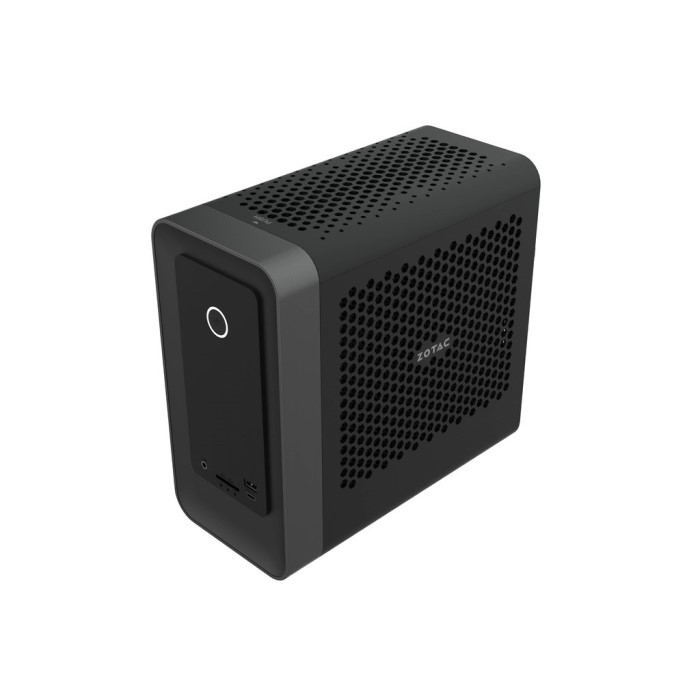

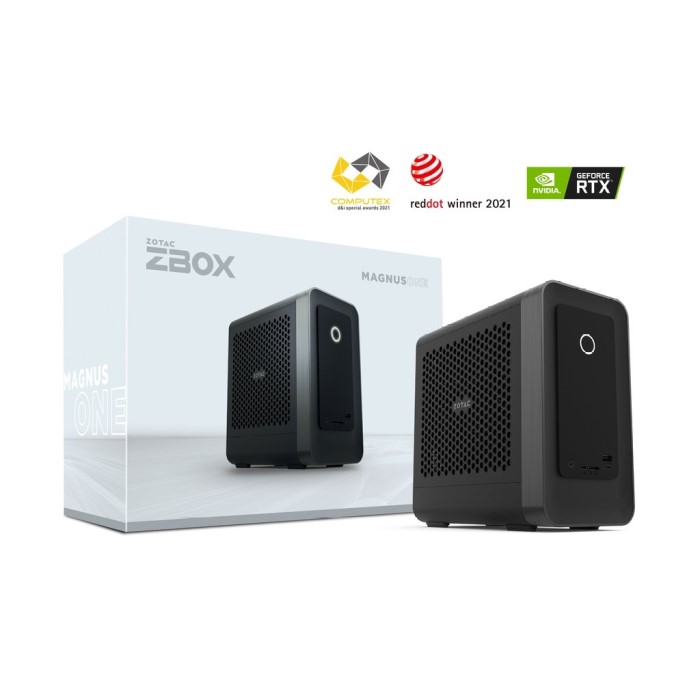

Zotac ZBOX MAGNUS ONE ECM73070C (Barebone) Mini PC

– 8.3 liter compact chassis
– 10th Gen Intel Core i7 processor
– ZOTAC GAMING GeForce RTX 3070 8GB GDDR6
– Up to 64GB DDR4-2933/2666 memory support
– 1 x HDMI 2.1, 3 x DisplayPort 1.4a, 1 x HDMI 1.4 (integrated)
– 4 x USB 3.1 GEN2, 4 x USB 3.0 (1 Type-C)
– Killer WiFi, Gigabit and 2.5Gbps Ethernet
– 500W 80+ Platinum power supply
– Creator Ready / 4K Ready / Gaming Ready / VR Ready

SKU: ZBOX-ECM73070C-BE Categories: , , ,

Empower everything in one incredibly powerful, versatile Mini PC. MAGNUS ONE boasts the ultimate performance in an all-new and compact design. It is the first Mini PC taking advantage of the ZOTAC GAMING GeForce RTX™ 3070 graphics card for high-fidelity ray-traced graphics and cutting-edge AI features with DLSS. Paired with a 10th Gen Intel® Core™ i7 processor, upgradable memory and storage support, full-range connectivity options with Killer networking, MAGNUS ONE has the do-it-all capability to deliver the best experience for daily tasks, gaming, entertainment, content creation and business.

Computing System

  • Processor
    Intel Core i7-10700 (8-core 2.9 GHz, up to 4.8 GHz)
  • Chipset
    Intel, NVIDIA
  • System Memory
    2 x DDR4-2933/2666 SODIMM Slots (up to 64GB)

Graphics

  • Graphics Engine
    ZOTAC GAMING GeForce RTX 3070 8GB GDDR6 256-bit
  • Video Output
    1 x HDMI 1.4 (up to 3840×2160@30Hz) (integrated)
    1 x HDMI 2.1* (up to 7680×4320@60Hz)
    3 x DisplayPort 1.4a (up to 7680×4320@60Hz)
    Up to Quad Display Support
    *Ultra High Speed HDMI Cable is required to support 8K/60FPS or 4K/120FPS

Storage

  • Hard Drive
    1 x 2.5-inch SATA 6.0 Gbps HDD/SSD bay
  • Mass Storage
    N/A
  • Optical Drive
    N/A
  • mSATA
    N/A
  • M.2
    1 x M.2 PCIe x4 / SATA SSD slot (2242,2280), 1 x M.2 PCIe x4 SSD / Intel Optane memory slot (2242, 2280, 22110)
  • Card Reader
    3-in-1 (SD/SDHC/SDXC)

I/O Ports

  • Audio
    Microphone, Headphone, HDMI
  • USB Port
    4 x USB 3.1
    4 x USB 3.0 (1 Type-C)
  • LAN
    Dual LAN (Gigabit Ethernet, 2.5Gbps Ethernet)
  • Antenna
    Dual WiFI SMA connetor
  • Wifi
    WiFi 6 AX1650
  • Bluetooth
    Bluetooth 5
  • Legacy I/O
    N/A
  • CIR Infrared Port
    N/A
  • Thunderbolt
    N/A
  • USB
    N/A
  • IDE
    N/A
  • VGA
    N/A

Mechanical

  • Kensington Lock
    Yes
  • LED Indicators
    Power, HDD, WiFi
  • Power Supply
    500W 80+ Platinum
  • Cooling system
    Fan + Heatsink
  • ZBOX Dimensions
    265.5mm x 126mm x 249mm (10.45in x 4.96in x 9.8in)
  • Case Mounting
    None

Miscellaneous

  • Supported OS
    Windows 10 64-bit
  • Accessories
    2 x WiFi antenna
    Power Cord (bundled cable type dependent on region)
    Warranty Card
    Quick Install Guide
    USB drive with O/S driver
    Nylon Cable Tie (optional)
Weight 0.5 kg
