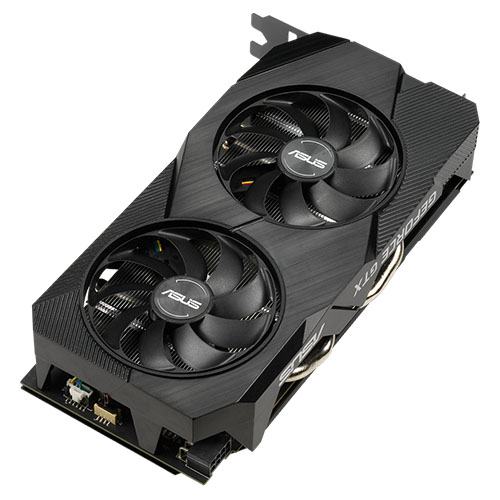

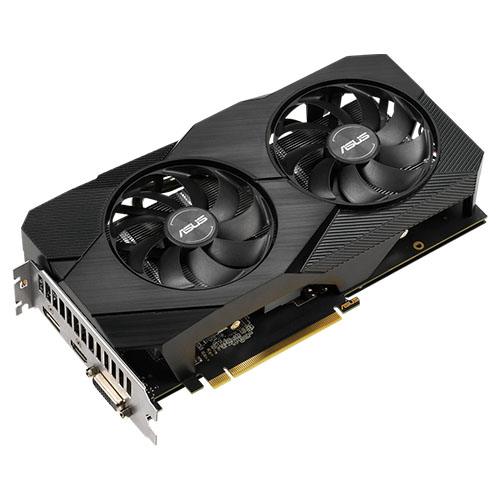

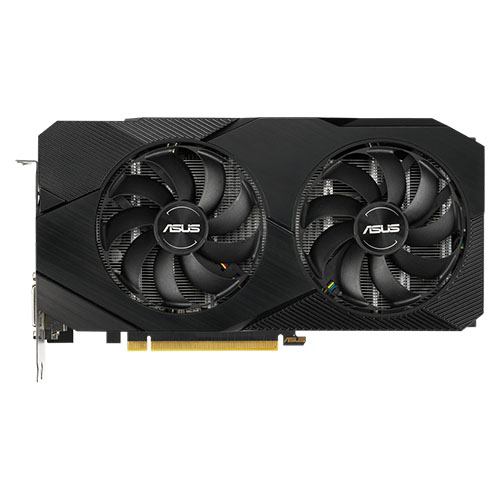

ASUS DUAL-GTX1660S-6G-EVO Graphic Card

  • Model DUAL-GTX1660S-6G-EVO
  • Graphic Engine NVIDIA® GeForce® GTX 1660 SUPER™
  • Bus Standard PCI Express 3.0
  • OpenGL OpenGL®4.6
  • Video Memory 6GB GDDR6
  • CUDA Core 1408
  • Memory Speed 14002 MHz
  • Memory Interface 192-bit
  • Resolution Digital Max Resolution 7680 x 4320
SKU: 90YV0DS5-M0NA00 Categories: , , ,

Specifications

Model DUAL-GTX1660S-6G-EVO
Graphic Engine NVIDIA® GeForce® GTX 1660 SUPER™
Bus Standard PCI Express 3.0
OpenGL OpenGL®4.6
Video Memory 6GB GDDR6
Engine Clock OC Mode – 1815 MHz (Boost Clock) Gaming Mode (Default) – GPU Boost Clock : 1785 MHz , GPU Base Clock : 1530 MHz
CUDA Core 1408
Memory Speed 14002 MHz
Memory Interface 192-bit
Resolution Digital Max Resolution 7680 x 4320

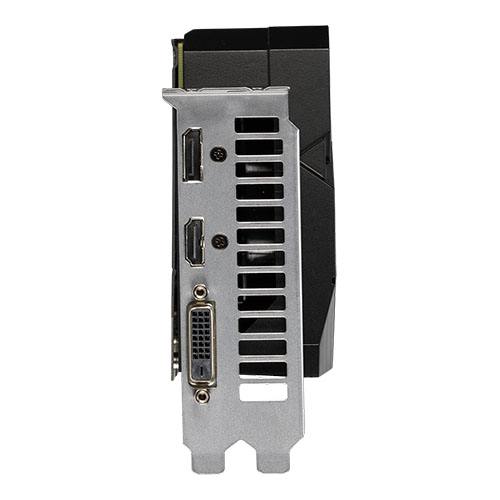

Interface Yes x 1 (Native DVI-D) Yes x 1 (Native HDMI 2.0b) Yes x 1 (Native DisplayPort 1.4) HDCP Support Yes (2.2)
Maximum Display Support 3
NVlink/ Crossfire Support No
Accessories Yes x 1
Software ASUS GPU Tweak II & Drivers: please download all software from the support site.
Dimensions 9.5 ” x 5.1 ” x 2.1 ” Inch 24.2 x 13 x5.3 Centimeter
Recommended PSU 450W
Power Connectors 1 x 8-pin
Slot 2.3 Slot
AURA SYNC RGB



ASUS Dual GeForce® GTX 1660 SUPER™ 6GB GDDR6 EVO rocks high refresh rates for an FPS advantage without breaking a sweat.
  • The GeForce GTX 1660 SUPER is up to 20% faster than the original GTX 1660 and up to 1.5X faster than the previous-generation GTX 1060 6GB. Powered by the award-winning NVIDIA Turing™ architecture and ultra-fast GDDR6 memory, it’s a supercharger for today’s most popular games. Time to gear up and get SUPER.
  • Ultra-fast GDDR6 with over 50% more memory bandwidth for high-speed gaming.
  • GeForce Experience: Capture and share videos, screenshots, and livestreams with friends. Keep your drivers up-to-date and optimize game settings. GeForce Experience lets you do it all, making it the essential companion to your GeForce graphics card.
  • Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
  • 2.7-slot Design expands cooling surface area to make the most of the two powerful Axial-tech fans.
  • 0dB technology lets you enjoy light gaming in relative silence.
  • DirectCU II brings copper heatpipes into direct contact with the die for better cooling.
  • Auto-Extreme Technology uses automation to enhance reliability.
  • protective backplate secures components during transportation and installation.
  • 144-hour validation program puts cards through a series of stringent tests to ensure compatibility with the latest games.



2x Fans. 2x Fun.

The ASUS Dual GeForce® GTX 1660 SUPER™ EVO sets you up with a serious advantage for high definition AAA gaming. Marathon gaming session? Multi-hour raid? With Axial-tech fans and Auto-Extreme technology, the Dual will keep pumping out frames long after competitors have bitten the dust. If you’re looking for a solid, reliable gaming experience, this is it.



Axial-tech Fan Design

Better, faster, stronger

Newly designed for the latest generation of top-end ROG graphics cards, these fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure.



2.7-Slot Design

Sink your heat into this

The Dual leverages a 2.7-slot design to gain more heatsink surface area. The extra thermal headroom increases overclocking potential and allows fans to run at even lower speeds in light scenarios.



0dB Technology

Quiet intelligence

An advanced onboard controller brings fans to a standstill when the GPU core temperature is below 55 Celsius, letting you enjoy light gaming in relative silence. As temps rise past the threshold, the fans automatically start up again.



DirectCU II

First contact

Copper heatpipes make direct contact with the die for improved thermal transfer.



Auto−Extreme Technology

Precision automated manufacturing

Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.

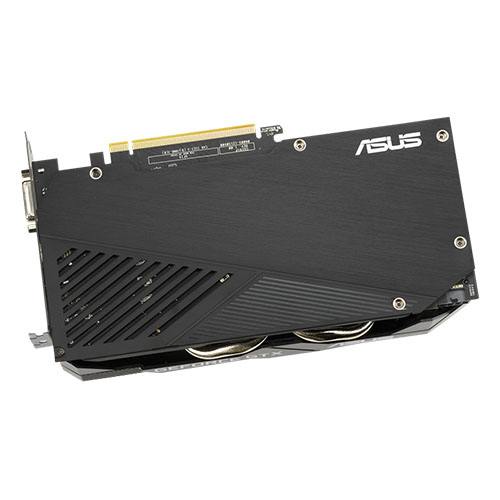

Protective Backplate

That’s so metal!

The PCB is reinforced by an aluminum backplate that adds structural rigidity, helping to prevent flex and protect components and trace pathways from damage.



GPU Tweak II

Monitor, tweak, and tune

The ASUS GPU Tweak II utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.



XSplit

Premium streaming

XSplit offers a premium streaming experience with in-game annotations and other advanced features. Enjoy a free license with the purchase of select ASUS graphics cards. See you online!



wtfast

Play lag-free

We’ve partnered with wtfast to help you to play free from lag, latency issues, and lost packets. With a 6-month subscription to the wtfast Gamers Private Network, you’ll enjoy lower ping for a smoother, more fluid online gaming experience. Buy an ASUS graphics card – and don’t be left waiting!



Quantumcloud

Profit from GPU power

Quantumcloud is a simple and secure service that lets you effortlessly earn extra money by putting your idle GPU to work. Through an easy-to-use app, your computer can help run cloud-based applications, making you money in the process. Earnings are automatically transferred to your WeChat or PayPal account, and your privacy remains intact because Quantumcloud doesn’t collect your personal data. Get started making money today!



144−hour Validation Program

“Extensive” may be an understatement

Each card must meet rigorous performance and reliability standards before it ships. Performance and stress tests are run with the latest chart-topping titles like Fortnite, League of Legends, Overwatch, and PlayerUnknown’s Battlegrounds. We also carry out reliability trials that include a 144-hour stability test and a series of 3DMark benchmarking runs to ensure the card performs well when pushed to the limits.



Subtle Lighting

Gradient accent

The shroud features a subtle illuminated strip, adding a stylish accent to any build.



NVIDIA® G−SYNC Technology

Smooth operator

This graphics card supports NVIDIA® G-SYNCTM display technology for a super-smooth variable refresh rate experience. Enjoy AAA games without the nuisance of screen tearing or stuttering.

Weight 5 kg
