SPECIFICATIONS:
- PRODUCT NUMBER MAM-D6PS-314PK-R1
- EXTERIOR COLOR Black
- CPU SOCKET LGA2066, LGA2011-v3, LGA2011, LGA1700*, LGA1200, LGA1366, LGA1156, LGA1155, LGA1151, LGA1150, AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1
- DIMENSIONS (L X W X H) 144.9 x 153.2 x 160 mm / 5.7 x 6 x 6.3 inch
- HEAT SINK MATERIAL 6 Heat Pipes, Aluminum Fins
- FAN DIMENSIONS (L X W X H) 140 mm Fan – 140 x 140 x 25 mm / 5.5 x 5.5 x 1 inch, 120 mm Fan – 120 x 120 x 25 mm / 4.7 x 4.7 x 1 inch
- FAN QUANTITY 140 mm Fan – 2 PCS, 120 mm Fan – 1 PC
- FAN SPEED 140 mm Fan – 650-1400 RPM (PWM) ± 5%, 120 mm Fan – 650-1800 RPM (PWM) ± 5%
- FAN AIRFLOW 140 mm Fan – 67 CFM (Max), 120 mm Fan – 62 CFM (Max)
- FAN NOISE LEVEL
140 mm Fan – 10 ~ 27 dBA, 120 mm Fan – 8 ~ 27 dBA - FAN AIR PRESSURE 140 mm Fan – 2.25 mmH2O (Max), 120 mm Fan – 2.5 mmH2O (Max)
- FAN MTTF 160,000 Hours
- FAN POWER CONNECTOR 4-Pin (PWM)
- FAN RATED VOLTAGE 12VDC
- FAN RATED CURRENT 0.15A
- FAN SAFETY CURRENT 140 mm Fan – 0.4A, 120 mm Fan – 0.37A
- FAN POWER CONSUMPTION 1.8W
- SERIES MasterAir
- COOLER TYPE Air Cooler
- HEATPIPES 6
- NOTE *LGA1700 mounting kit included since 11/2021, mounting kit required (Free) for products purchased before this date.

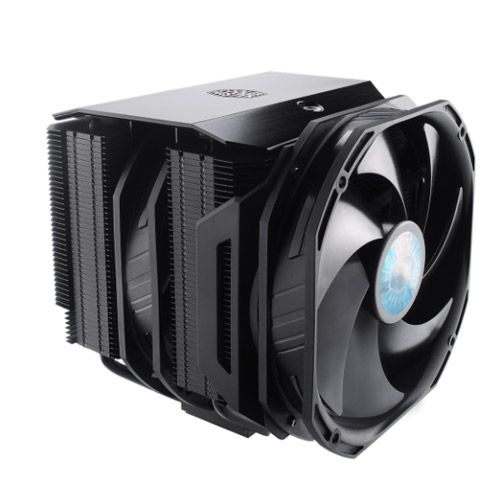

- Premium Aluminum Black Top Cover
- Dual Tower Heat Sink
- 6 Heat Pipes with Nickel Plated Base
- Dual SickleFlow 140 Fan
- 3rd 120 mm fan for RAM Clearance
- Easy Mounting System
PREMIUM AESTHETICS
Stealth black aluminum top cover matches all-black hardware throughout to offer a premium finish
RELENTLESS COOLING POWER
6 heat pipes and full coverage of nickel-plated copper base provides seamless contact with CPU for excellent heat dissipation.
TWICE THE SURFACE AREA
Dual tower heatsinks provide twice the surface area for better cooling
Best combination of fin thickness and distance between layers ensures maximum airflow through the heatsink
QUIET AND POWERFUL
Twin SickleFlow 140 fans provide optimal airflow and pressure using Push-Pull setup for excellent performance at inaudible noise levels
INCLUDES DUAL SICKLEFLOW 140 & ONE SICKLEFLOW 120
Optional 3rd SickleFlow 120 fan included for necessary RAM clearance
COMPATIBILITY & CLEARANCE
Optimized design for graphic cards’ compatibility on ATX and M-ATX platforms.
Fan Configuration:
SickleFlow 120 x 1 & SickleFlow 140 x 1
Allows 40mm RAM height for clearance and compatibility.
SickleFlow 140 x1
Concave heatsink design provides up to 70mm RAM compatibility.
EASY MOUNTING SYSTEM
Exclusive All-In-One mounting design for easy installation
| Weight | 0.5 kg |
|---|
