The MasterBox TD500 ARGB approaches PC lighting in a completely new perspective. The front and side panels feature a crystalline structure, designed to uniquely interact with hardware lighting depending on the viewing angle. To make the most of the panels’ structure, three ARGB fans come pre-installed behind the front panel.
To avoid interrupting the front panel design, seamless implementation of mesh ventilation makes up the entire perimeter of the panel. Hidden by the front bezel, considerable airflow is provided to the system almost completely out of view. Joined by the top panel ventilation and rear exhaust, the MasterBox TD500 ARGB delivers efficient cooling and spectacular aesthetics without compromising one for the other.

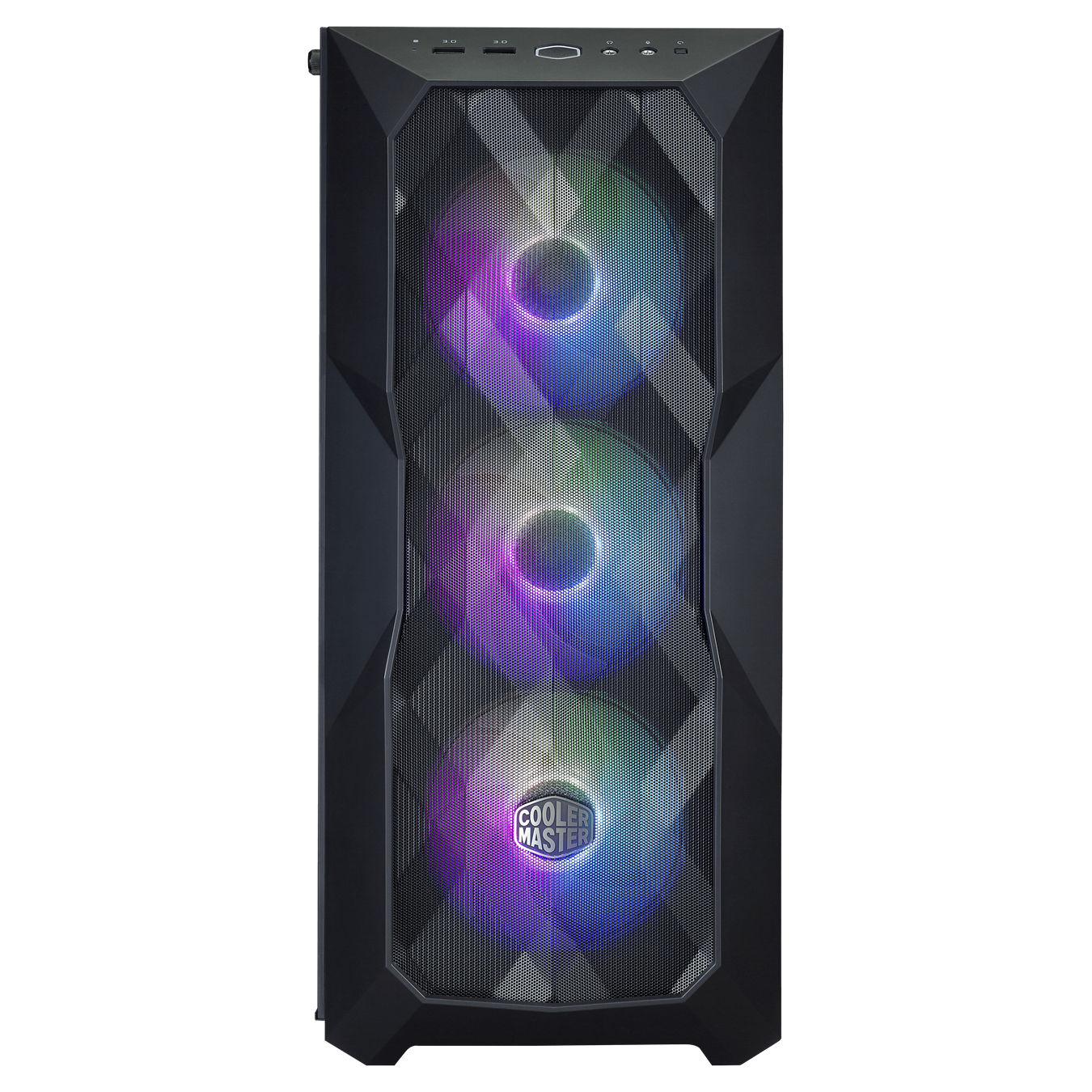

The front and side panels feature a three-dimensional, crystalline design that refracts light differently depending on the viewing angle.
The entire perimeter of the front panel is ventilated with mesh, placed behind the front bezel and hidden out of view.
ARGB LIGHTING SYSTEM
Three pre-installed ARGB fans can be managed by either the motherboard or an included controller, connected by the included splitter, to create a comprehensive ARGB lighting system.
EDGE-TO-EDGE ACRYLIC SIDE PANEL
Gaming hardware, cooling components, and the pure pride of the builder is shown in panoramic view through an edge-to-edge acrylic side panel.
VERSATILE COOLING OPTIONS
Support for up to seven 120mm fans and dual 360mm radiators on the top and front panel ensure that even the most extreme systems stay cool.
The small ARGB Controller is a mini-sized controller that allows your Addressable RGB such as fans and LED strips to be powered and controlled even in PC systems without an A-RGB capable motherboard.
The controller comes with 14 lighting presets to make full use of the Addressable LEDs in the system and also allows to be completely switched off by long pressing its button.
It is also possible to attach any external 2pin button to it to be able to switch presets without having to open the system. For ease of use, Cooler Master allows the RESET button to be optionally connected to the controller and used as an external ARGB preset switch button.
Steel, Plastic, Acrylic
DIMENSIONS (L X W X H)
493 x 217 x 468 mm
5.6 kg / 12.3 lbs
Mini ITX, Micro ATX, ATX, E-ATX*, (*support for up to 12″ x 10.7″, will limit cable management features)
5.25″ DRIVE BAYS
2.5″ / 3.5″ DRIVE BAYS (COMBO)
2.5″ DRIVE BAYS
4 (2+2 combo)
2x USB 3.2 Gen 1 (formerly USB 3.0), 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack, 1x ARGB Controller, 1x ARGB 2-to-3 splitter
PRE-INSTALLED FANS – FRONT
3x 120mm ARGB Fans
PRE-INSTALLED FANS – REAR
FAN SUPPORT – TOP
3x 120mm, 2x 140mm
FAN SUPPORT – FRONT
3x 120mm, 2x 140mm
FAN SUPPORT – REAR
RADIATOR SUPPORT – TOP
120mm, 240mm, 360mm, (44mm max motherboard component height)
