AIRFLOW SHOWS ITS TRUE COLOR
Appearing in arctic white, the H Series embraces the golden rule of PC building: to never stop upgrading. The MasterCase H500P Mesh White is no exception, now with two pre-installed 200mm ARGB fans. Addressable RGB fans were previously only available with the MasterCase H500M, the lineup’s premium flagship model.
The same premium lighting is now present in the Mesh White variant, without having to separately purchase the highly sought-after 200mm ARGB fans. The MasterCase H500P Mesh White ARGB preserves all of its award-winning advantages of airflow performance, component versatility, and trademark aesthetics of the H Series, while improving the customization potential of ARGB fans out of the box.

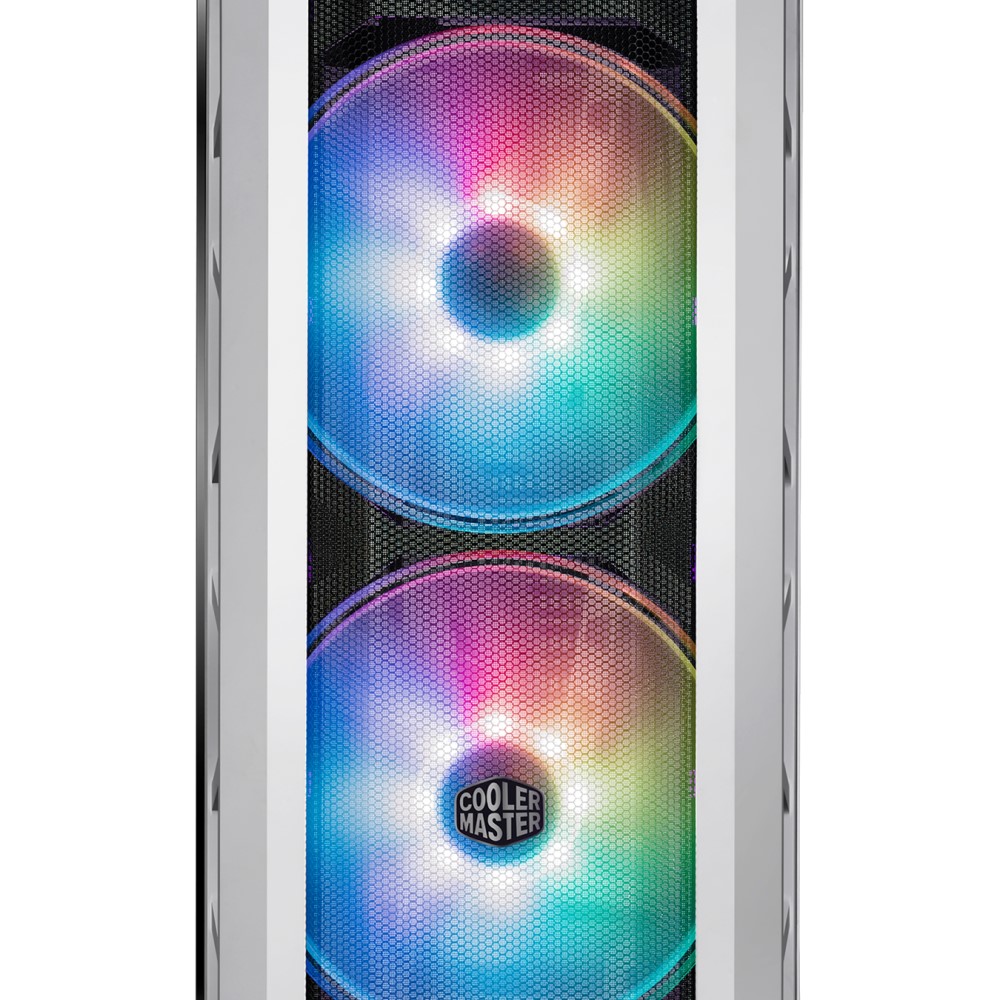

DUAL 200MM ARGB FANS
The iconic, addressable RGB fans are the core of the H-Series in design and function, capable of operating quietly while moving high volumes of air due to their size.
MESH FRONT PANEL
Two layers of mesh make up the entire front panel to maximize airflow. A finer layer filters out dust while the steel mesh reinforces its structure.
BUILD BY DESIGN
Transparent panels and a tempered glass side panel flaunt the hardware & fans, while the cable covers, PSU shroud, and cable management space hide the clutter.
ARGB LIGHTING SYSTEM
The pre-installed ARGB fans can be managed by either the motherboard or an included controller, connected by the included splitter, to create a comprehensive ARGB lighting system.
TEMPERED GLASS SIDE PANEL
Gaming hardware, custom-loop cooling, and the pure pride of the builder is shown in panoramic view through an edge-to-edge tempered glass side panel.
ARGB CONTROLLER
The small ARGB Controller is a mini-sized controller that allows your Addressable RGB such as fans and LED strips to be powered and controlled even in PC systems without an A-RGB capable motherboard.
The controller comes with 14 lighting presets to make full use of the Addressable LEDs in the system and also allows to be completely switched off by long pressing its button.
It is also possible to attach any external 2pin button to it to be able to switch presets without having to open the system. For ease of use, Cooler Master allows the RESET button to be optionally connected to the controller and used as an external ARGB preset switch button.
SPECIFICATIONS
- MODEL NUMBER
- MCM-H500P-WGNN-S01
- SERIES
- MasterCase Series
- SIZE
- Mid Tower
- AVAILABLE COLOR(S)
- Gun Metal Grey
- MATERIALS
- Steel, Plastic, Tempered Glass, Mesh
- DIMENSIONS (L X W X H)
- 544 x 242 x 542mm / 21.4 x 9.5 x 21.3 inch
- WEIGHT
- 11.3 kg
- MOTHERBOARD SUPPORT
- Mini ITX, Micro ATX, ATX, E-ATX*, (*support for up to 12″ x 10.7″, will limit cable management features)
- EXPANSION SLOTS
- 7+2, (Supports vertical graphics card installation)
- 5.25″ DRIVE BAYS
- N/A
- 2.5″ / 3.5″ DRIVE BAYS (COMBO)
- 2
- 2.5″ DRIVE BAYS
- 2 (Max.4)
- I/O PANEL
- 2x USB 3.2 Gen 1 (formerly USB 3.0), 2x USB 2.0, 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack, 1x ARGB Controller, 1x ARGB 2-to-3 splitter
- PRE-INSTALLED FANS – FRONT
- 2x 200mm ARGB Fan
- PRE-INSTALLED FANS – REAR
- 1x 140mm, 1200RPM
- FAN SUPPORT – TOP
- 3x 120/140mm, 2x 200mm
- FAN SUPPORT – FRONT
- 3x 120/140mm, 2x 200mm
- FAN SUPPORT – REAR
- 1x 120/140mm
- RADIATOR SUPPORT – TOP
- 120mm, 140mm, 240mm, 280mm, 360mm
- RADIATOR SUPPORT – FRONT
- 120mm, 140mm, 240mm, 280mm, 360mm
- RADIATOR SUPPORT – REAR
- 140mm, 120mm
- CLEARANCE – CPU COOLER
- 190mm
- CLEARANCE – PSU
- 220mm
- CLEARANCE – GFX
- 412mm/16.2″
- DUST FILTERS
- Top, Front, Bottom
- POWER SUPPLY SUPPORT
- Bottom mount, ATX
- WARRANTY
- 2 years
