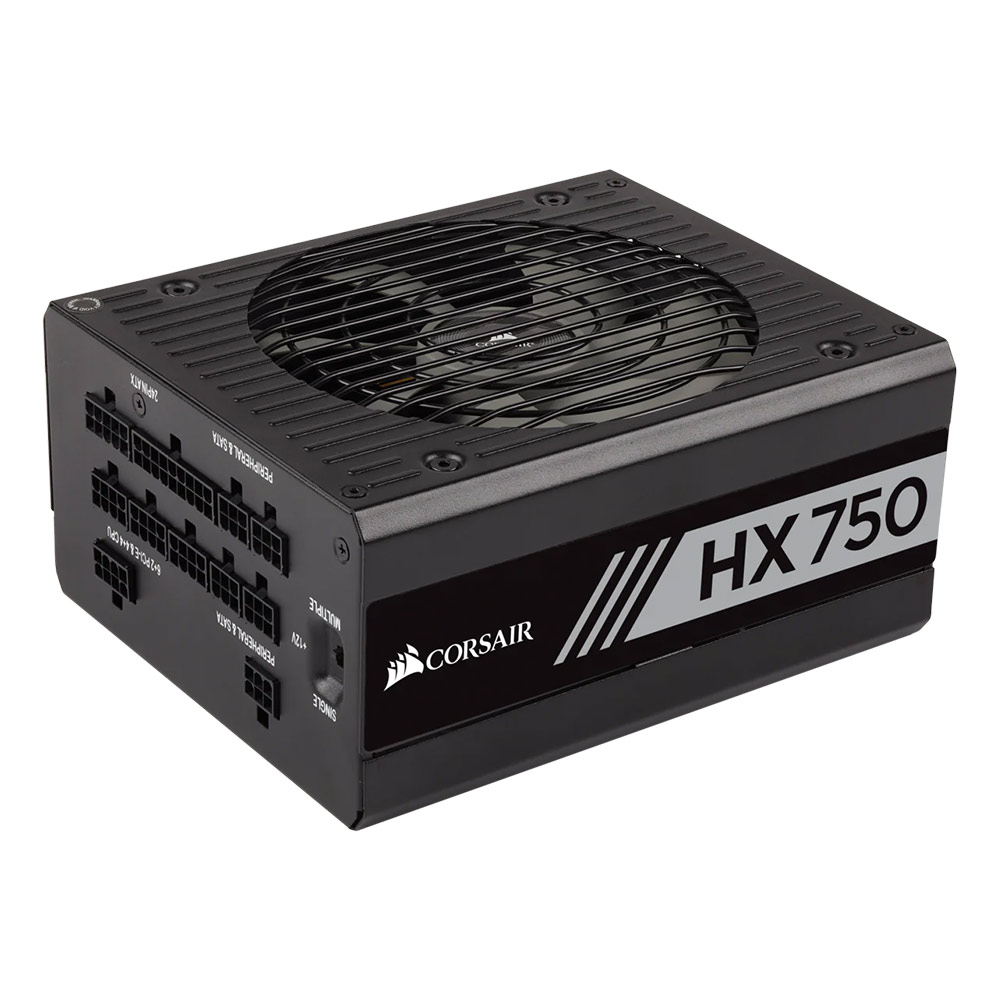

Corsair HX Series™ HX750 – 750 Watt 80 PLUS® PLATINUM Certified Fully Modular PSU (UK)

Specifications

Weight	1.92
Adjustable Single/Multi 12V Rail	No
ATX Connector	1
ATX12V Version	v2.4
Continuous output rated temperature C	50°C
Continuous power W	750 Watts
Fan bearing technology	Fluid Dynamic Bearing
Fan size mm	135mm
MTBF hours	100,000 hours
Multi-GPU ready	YES
80 PLUS Efficiency	Platinum
PSU Form Factor	ATX
iCUE Compatibility	No
Zero RPM Mode	Yes
Cable Type	Low-Profile, All Black
EPS12V Connector	2
EPS12V Version	v2.92
Floppy Connector	1
Intel C6C7 sleep state compatible	Yes
Modular	Fully
PCIe Connector	4
SATA Connector	16
Special Technology	OVP (Over Voltage) UVP (Under Voltage) SCP (Short Circuit) OTP (Over Temp) OPP (Over Power)
Protections	OVP (Over Voltage) UVP (Under Voltage) SCP (Short Circuit) OTP (Over Temp) OPP (Over Power)





PLATINUM EFFICIENCY, FULLY MODULAR AND VIRTUALLY SILENT

CORSAIR HX series power supplies give you extremely tight voltage regulation, quiet operation, Platinum-certified efficiency, and a fully modular cable set. Built with all Japanese 105°C capacitors, they’re a great choice for high performance PCs where reliability is essential.



QUIET, EFFICIENT OPERATION

80 PLUS Platinum efficiency reduces operating cost and excess heat, and Zero RPM fan mode ensures virtual silence at low and medium loads.



100% JAPANESE 105°C CAPACITORS

Premium internal components ensure solid power delivery and long term reliability.

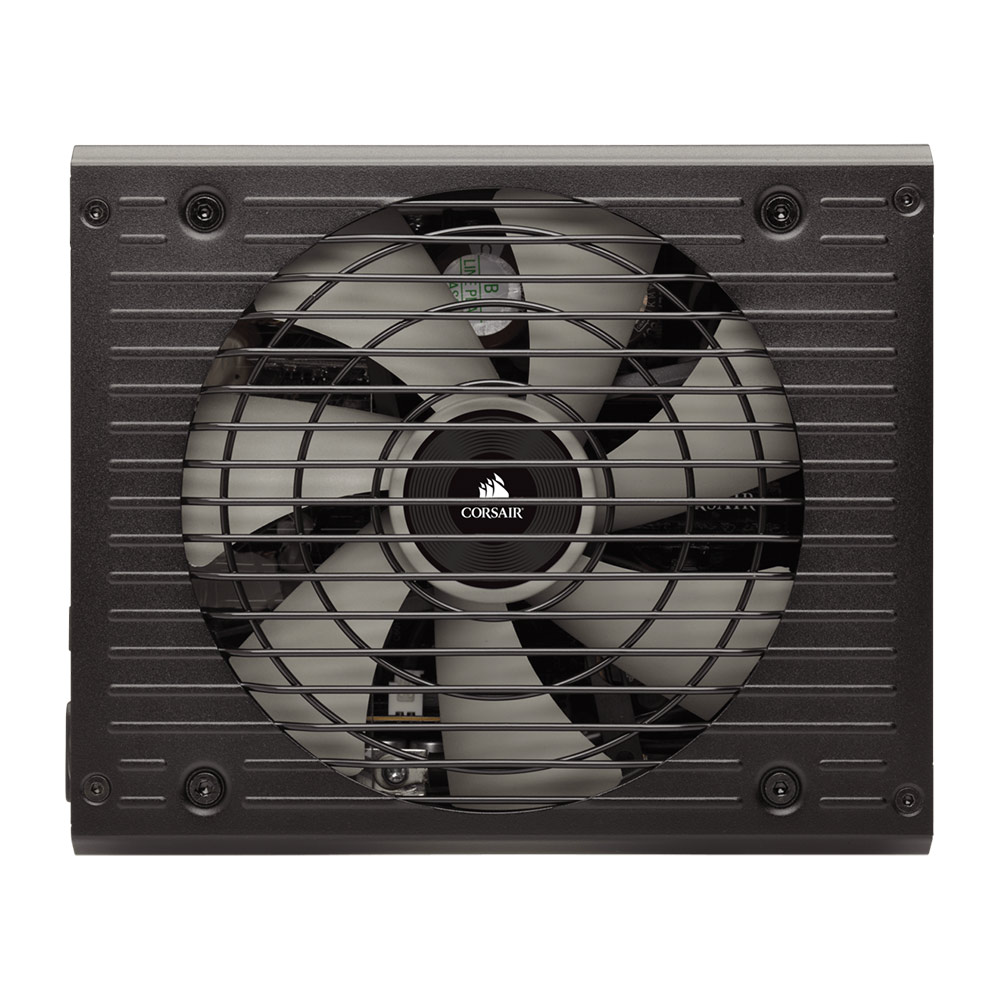

ZERO RPM FAN MODE

Since the fan doesn’t turn on until it’s needed, you’ll enjoy virtually silent operation at low and medium loads.



POWER IN YOUR HANDS

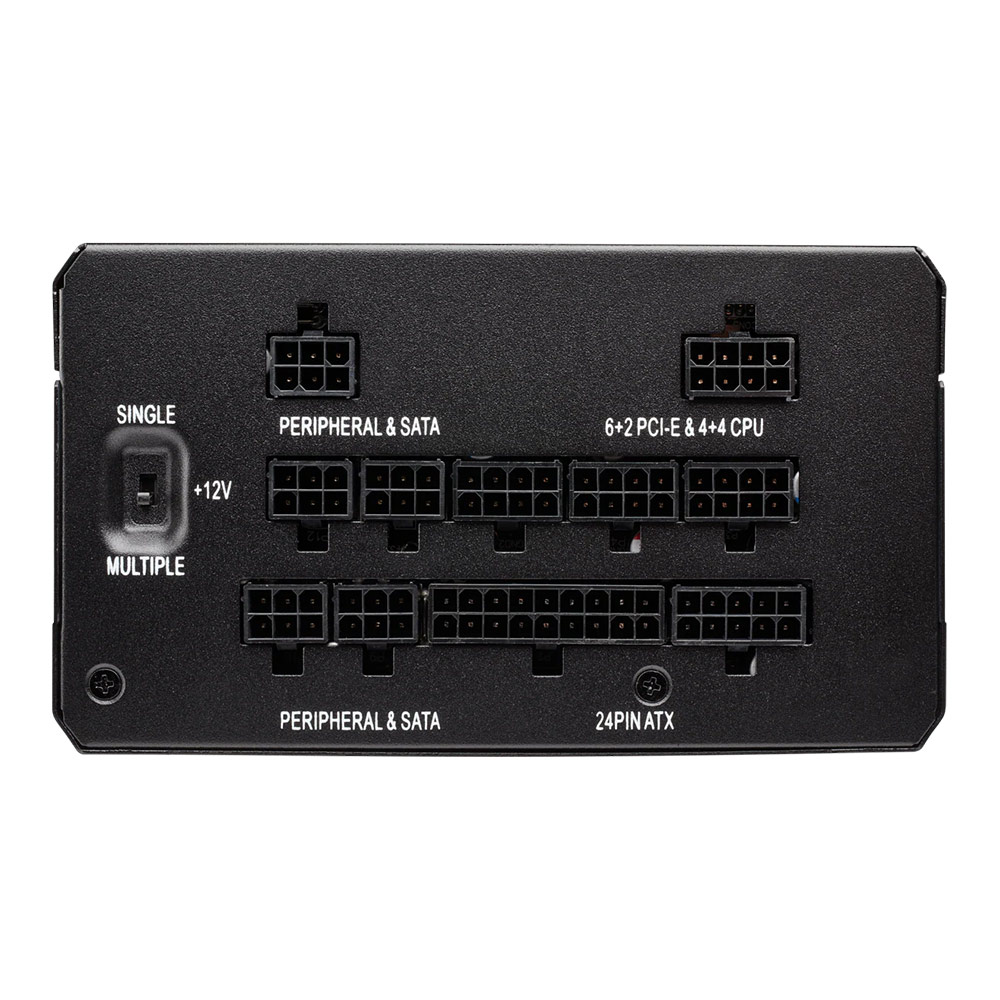

Toggle single +12V rail or multi +12V rail mode. In the “SINGLE” position, the full output capability of the power supply’s +12V rail is available to any and all connectors, while in the “MULTIPLE” position, each individual connector has Over-Current Protection so no more than 40A of current can be delivered on any given cable.

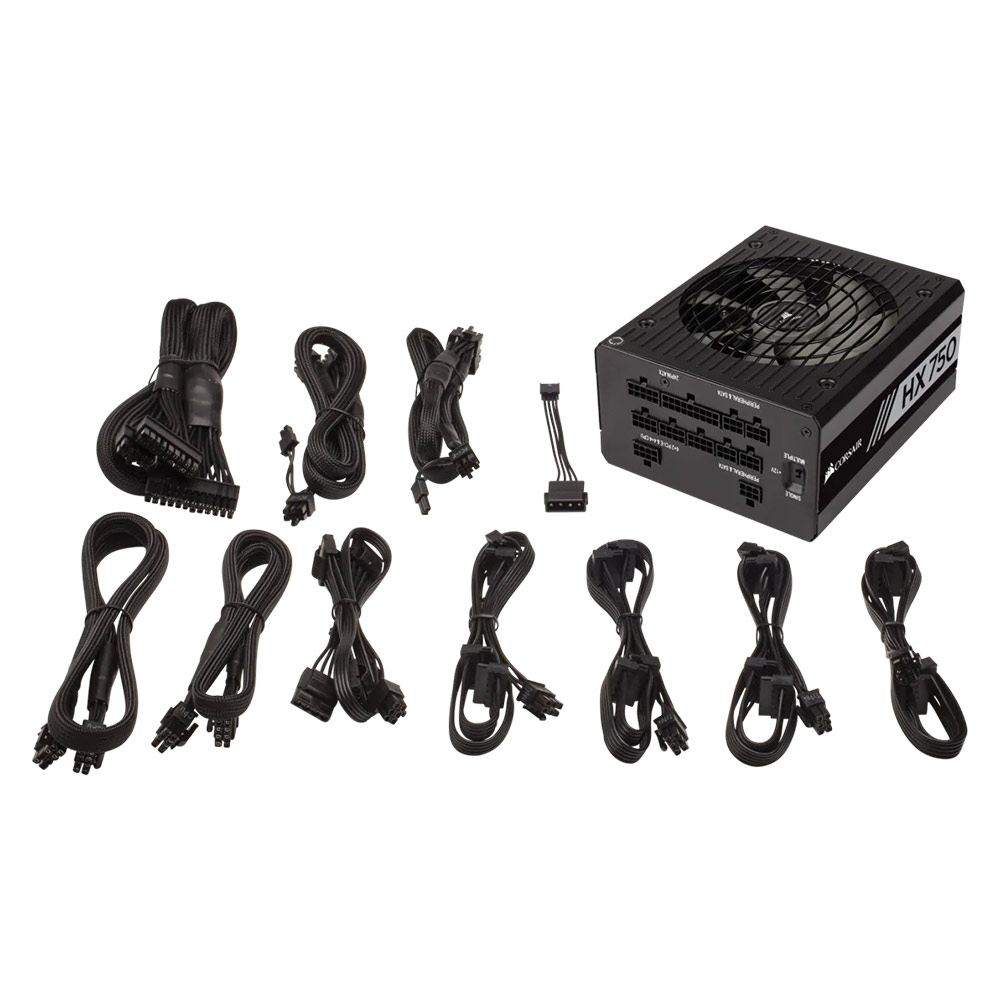

EASY INSTALLATION

The fully modular DC cables make builds and upgrades easy, with clean, great-looking results.
