Specifications
| Cold Plate Material | Copper |
| Radiator Material | Aluminum |
| PWM | Yes |
| CORSAIR iCUE Compatibility | Yes |
| Tubing Length | 380mm |
| Coldplate Dimensions | 56 x 56mm |
| Tubing Material | White Sleeved Low-Permeation Rubber |
| Radiator Dimensions | 277mm x 120mm x 27mm |
| Fan Dimensions | 120mm x 25mm |
| Fan Speed | 2400 RPM |
| Weight | 0.91 |
| Number of Fans | 2 |
| Cooling Socket Support | Intel 1700, 1200, 1150, 1151, 1155, 1156, 1366, 2011, 2066 AMD AM5, AM4, sTRX4, sTR4 (*Intel LGA1700 is supported with purchase of CW-8960091 or CW-8960093 spare parts.) |
| Lighting | RGB |
| Radiator Size | 240mm |
| Fan Model | ML RGB Series |
| Fan Control Method | PWM |
| AMD Processors Supported | Ryzen Threadripper, Ryzen, Phenom II, Athlon II, FX, A-Series, Opteron, Sempron, Athlon 64 |
| Intel Processors Supported | Core i9, i7, i5, i3, Pentium, Celeron |
| Fan Airflow | 75 CFM |
| Fan Static Pressure | 4.2 mm-H2O |
| Noise Level | 10 – 37 dBA |
HIGH-PERFORMANCE RGB PUMP HEAD
The ELITE CAPELLIX cooler pump head houses 33 ultra-bright CAPELLIX RGB LEDs to go along with its RGB fans. When you add powerful, low-noise cooling to the mix, your system will look great and will run even better.
SPLIT-FLOW COPPER COLD PLATE
An optimal cold plate design and a high-density stack of 128 micro-skived fins-per-inch provides highly efficient cooling at all loads.
LOW-NOISE CENTRIFUGAL PUMP
Delivers a flow rate of up to 0.82L/min while generating less than 20 dBA, for extreme cooling with low noise.
CHANGE UP YOUR LOOK
Each ELITE CAPELLIX CPU cooler includes two separate pump caps. The pre-installed pump cap is a stylish, glossy white, while the alternate pump cap is more transparent to let your CAPELLIX LEDs shine through.
TURN ANY CASE INTO A SMART CASE
Harness the power of iCUE with the included iCUE Commander CORE to control the fan speed and RGB lighting for the included ML RGB fans, with the potential to control additional CORSAIR RGB fans, up to a total of six.
POWERFUL CORSAIR iCUE SOFTWARE
Adjust fan and pump speeds, control and synchronize your cooler’s RGB lighting with all iCUE-compatible devices, and monitor CPU and coolant temperatures, all from a single intuitive interface.

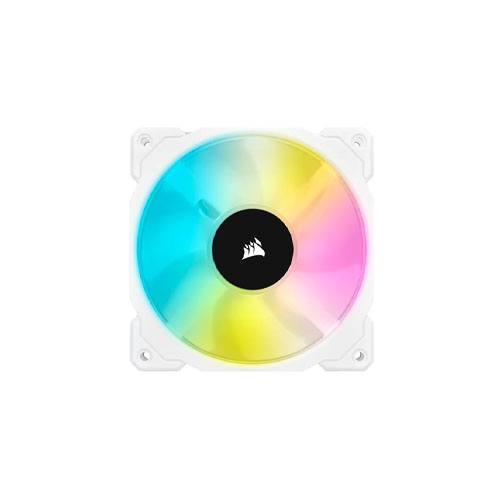

MAGNETIC LEVITATION RGB FANS
CORSAIR ML RGB Series PWM fans deliver powerful airflow for extreme CPU cooling performance, with eight RGB LEDs per fan. These premium magnetic levitation bearing fans are available for the first time with a beautiful white finish in iCUE ELITE CAPELLIX coolers.
ZERO RPM MODE
Zero RPM cooling profiles in CORSAIR iCUE software allow fans to stop entirely at low temperatures, eliminating fan noise.
AVAILABLE IN TWO SIZES AND PERFORMANCE LEVELS
240mm (H100i) for great compatibility and 360mm (H150i) for high cooling performance.
EASY TO INSTALL
Modular, tool-free mounting bracket for quick and painless installation on all modern Intel and AMD sockets.
UNITE YOUR SETUP
CORSAIR iCUE software brings your entire setup together, creating a fully immersive ecosystem with intuitive control.
| Weight | 5 kg |
|---|
