Dahua Bundle Offer: 27” FHD 1920×1080 (FHD) LED Monitor + 10-Port Fast Ethernet Switch with 8-Port PoE

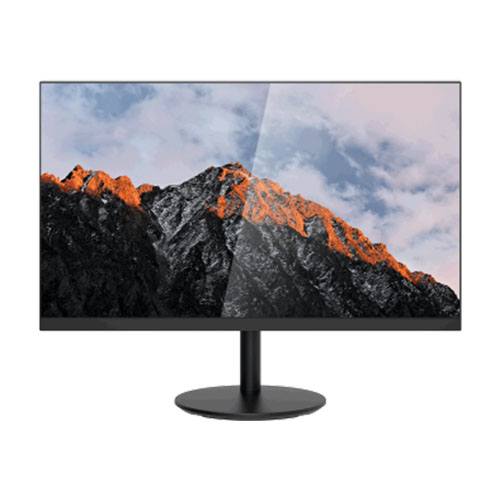

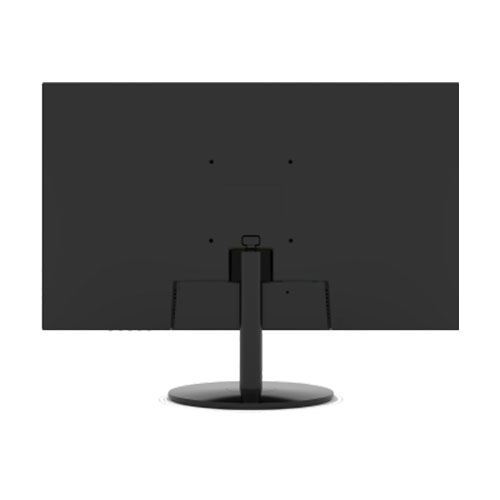

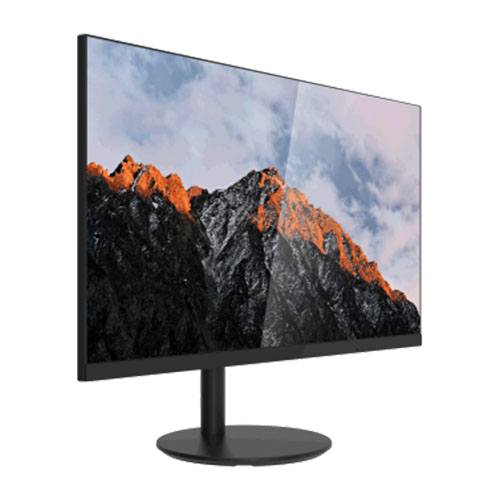

Dahua LM27-A200 27” FHD 1920×1080 (FHD) LED Monitor

Specifications

Display

Screen Size	27″
Panel type	VA
Aspect Ratio	16:9
Resolution	1920×1080 (FHD)
Backlight	LED
Brightness/Luminance	250 cd/㎡
Contrast	4000:1
Display Color	16.7M(8bit)
Viewing Angle(H/V)	178°(H)/178°(V)
Response time(typ.)	5ms
Refresh Rate	TYP. 60Hz, MAX. 75Hz

Signals

Input

VGA×1, HDMI×1

General

Power Supply	DC 12V,3A
Consumption (Standard)	36W
Consumption (Standby)	≤0.5W
Tilt	-5°~15°
Net Weight	3.63 kg (8.00 lb)
Gross Weight	4.7 kg (10.36 lb)
Bezel Width	3.6mm(U/R/L), 12.5mm(B)
Wall Mount	100×100mm
Dimension without standard (W×H×D)	616 × 447 × 192 mm (24.25″ × 17.6″ × 7.56″)
Package(W×H×D)	680 × 140 × 442 mm (26.77″ × 5.51″ × 17.4″)
Work Environment	Temperature 0℃~40℃ (32°F~104°F)
	Humidity 20%~80%

Accessory

Standard	HDMI cable, power cable, base
Optional	Gas spring desk bracket

Certifications

Certifications

CE/FCC

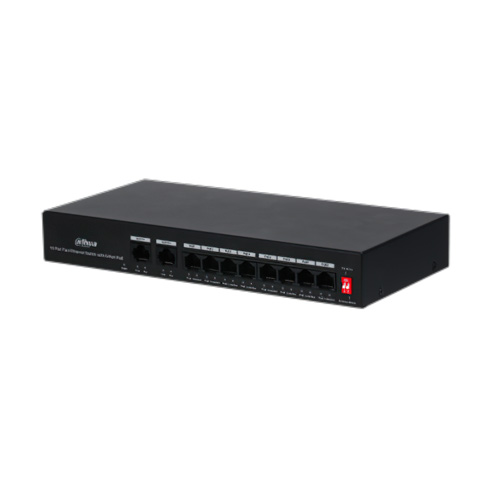

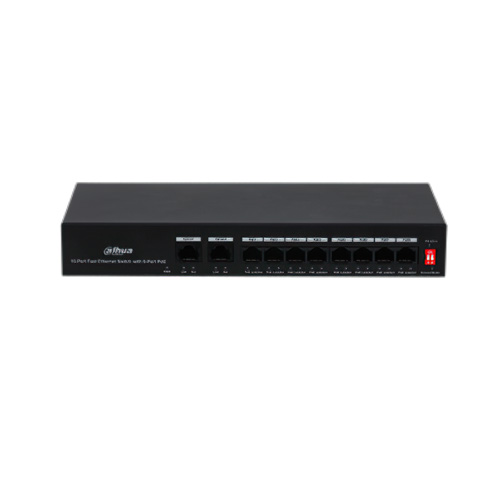

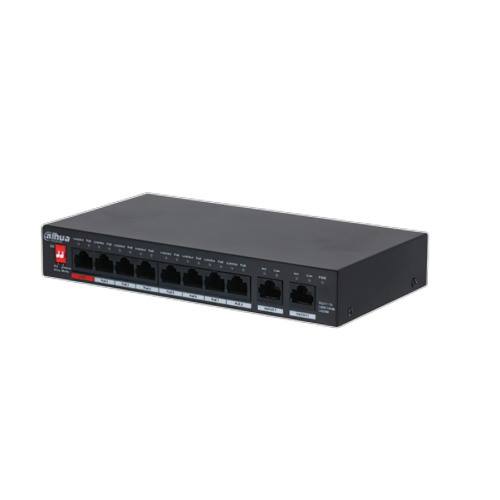

Dahua PFS3010-8ET-65 10-Port Fast Ethernet Switch with 8-Port PoE

Specifications

Hardware

• Data Transmission Port 8 PoE ports with 10/100 Mbps Base-TX 2 uplink ports with 10/100Mbps Base-TX
• Power Supply AC100–AC240V
• Operating Temperature -10°C to +55°C (-14°F–131°F)
• Operating Humidity 10%–90%
• Power Consumption Idling: 1.0W Full load: 65W

PoE

• PoE Budget Port1-8 ≤30W, whole PoE budget ≤65W
• PoE Standard IEEE802.3af, IEEE802.3at
• PoE Pin Assignment PoE: 1, 2, 4, 5(V+), 3, 6, 7, 8(V-)

Performance

• Switching Capacity 2.0 Gbps
• Packet Forwarding Rate 1.49 Mpps
• MAC Table Size 2 K
• Jumbo Frame 2048 byte
• Communication Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3X

Performance

• ESD Air discharge: 8kV Contact discharge: 6kV
• Thunderproof Common mode: 6kV Differential mode: 4kV
• Net Weight 0.76 kg (1.68 lb)
• Gross Weight 1.3 kg (2.87 lb)
• Product Dimensions (W × L × H) 242.5 mm × 122.9 mm × 35.0 mm (9.55″ × 4.84″ × 1.38″)
• Packaging Dimensions (W × L × H) Packing box: 303 mm × 262 mm × 72 mm (11.92″ ×10.31″ × 2.83″) Protective box: 549 mm × 325 mm × 397 mm (21.61″ ×12.80″ × 15.63″)
• Package 10 devices in one package
• Certifications CE: EN60950; FCC
