Dahua Bundle Offer: LM19-A200 19.5’’ 1600×900 LED Monitor + 5-Port Unmanaged Ethernet Switch

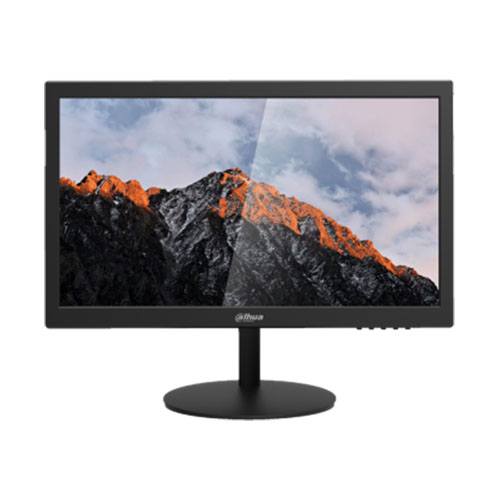

Dahua LM19-A200 19.5’’ 1600×900 LED Monitor

Specifications

Display

Screen Size	19.5″
Panel type	TN
Aspect Ratio	16:9
Resolution	1600×900
Backlight	LED
Brightness/Luminance	200cd/㎡
Contrast Ratio	600:1
Display Color	16.7M
Viewing Angle(H/V)	90°(H)/65°(V)
Response time	5ms
Refresh Rate	TYP. 60Hz, MAX. 75Hz

Signals

input

VGA×1，HDMI×1

General

Power Supply	DC 12V，2A
Consumption (Standard)	18W
Consumption (Standby)	≤0.5W
Net Weight	2.2 kg (4.85 lb)
Gross Weight	3.4 kg (7.50 lb)
Bezel Width	20mm(U), 18mm(R/L), 25mm(B)
VESA	75×75mm
Dimension without base (W×H×D)	468×284×41mm
Package(W×H×D)	520x105x410mm
Work Environment	Temperature 0℃~40℃ (32°F~104°F)
	Humidity 10%~85%

Accessory

Standard

VGA Cable, Power Adapter, Base

Certifications

Certifications

CE/FCC



Dahua PFS3005-5ET-L 5-Port Unmanaged Ethernet Switch

Specifications

Hardware

• Included Power Adapter Yes
• Ethernet Port 5
• Ethernet Port Speed 100 Mbps
• Description of Function Slots Port 1–5: 5 × 10/100 Base-T
• Power Supply 5 VDC; 1 A
• Operating Temperature 0 °C to +45 °C (+32 °F to +113 °F)
• Operating Humidity 5%–95% (RH)
• Storage Temperature –40 °C to +70 °C (–40 °F to +158 °F)
• Storage Humidity 5%–95% (RH)
• Power Consumption Idling: 0.1 W; Full load: 0.5 W

Performance

• MTBF 952.50 years
• Switching Capacity 1 Gbit
• Packet Forwarding Rate 0.744 Mpps
• Packet Buffer Size 768 kbit
• MAC Table Size 2K

General

• Statics Protection Air discharge: 8 kV Contact discharge: 4 kV
• Lighting Protection Common mode: 2 kV
• Net Weight 0.12 kg (0.26 lb)
• Gross Weight 0.23 kg (0.51 lb)
• Product Dimensions 86.4 mm × 52.0 mm × 23.0 mm (3.40″ × 2.05″ × 0.91″)
• Packaging Dimensions 94.0 mm × 111.0 mm × 67.0 mm (3.70″ × 4.37″ × 2.64″)
• Casing Material Plastic
• Installation Desktop mount
• Certifications CE; FCC
