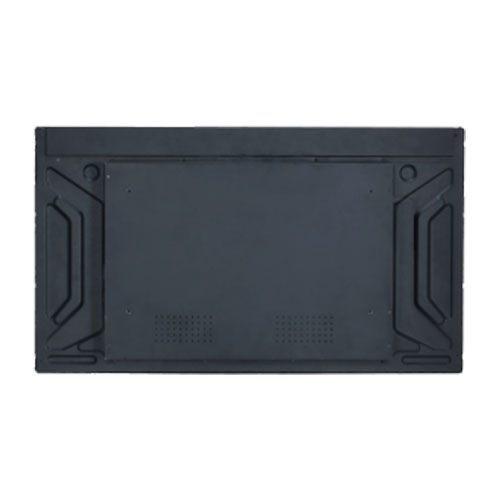

Dahua LDH32-SAI200K 32” Wall-mounted Digital Signage

Specifications

Display

• Model LDH32-SAI200K
• Backlight LED
• Screen Size 32”
• Aspect Ratio 16:9
• Resolution 1920×1080
• Display Colors 16.7M(8 bits)
• Brightness 250 cd/m²
• Contrast Ratio 4000:1
• Viewing Angle(H ×V ) 178°/178°
• Display Mode Landscape/Portrait
• Response Time 6.5ms
• Lifespan 30,000h

Connectivity

• Input RJ45 ×1, USB ×2, TF Slot ×1, HDMI ×1, Audio In×1
• External Control IR, RJ45(LAN), USB
• Wi-Fi Not Support
• Speaker 5W×2
• Smart Signage Platform Media Publish System 3.0

Power & Environmental Conditions

• Power Supply AC100-240V, 50/60Hz
• Type Internal
• Consumption 32W(Typical),60W(Max)
• Consumption(Standby) Less than 0.5W
• Operating Temperature 0 ℃ ~+40 ℃ （32 ℉~104℉ )
• Operating Humidity 10%~85%

Mechanical Specification

• Dimensions 718.2× 412.7× 48.2mm
• Package 816× 511× 146mm
• Bezel Width 7.9mm(T/L/R/B)
• Net Weight TBD
• Gross Weight 8.2kg

Accessory

• Included in Box Power cord, bracket
• Wall Mount Kit Yes
• VESA Mount 400mm × 200mm

Internal Player

• Processor Quad-core Cortex-A17 up to 1.6GHz
• Operating System Android 8.1
• RAM 2GB
• Storage 16GB
• Material Type Video, audio, image, time, weather, countdown, txt, web page, stream media, pdf
• Video mp4,avi,mov,asf,wmv,mkv A single file can upload up to 2G, and the resolution cannot exceed 4K
• Audio mp3,wma,wav A single file can upload up to 500M
• Image jpg,jpeg,gif,bmp,png A single file can upload up to 30M, and the resolution cannot exceed 4K
• Documents pdf, doc, docx, ppt, pptx, xls, xlsx and txt. A single filecan can upload up to 200 MB
• Decoding Capacity 1ch@4K or 4ch@1080P
