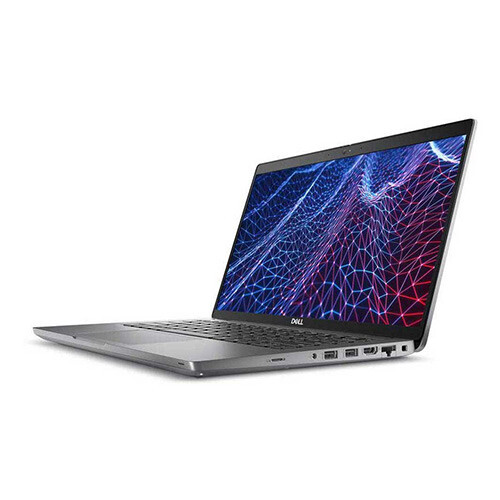

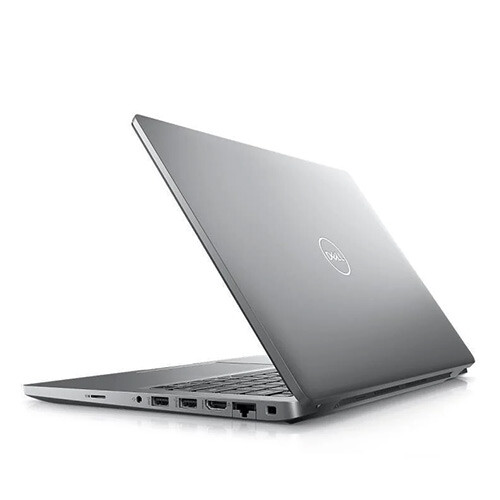

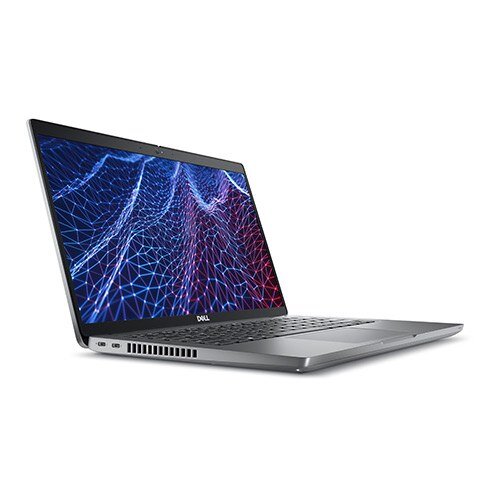

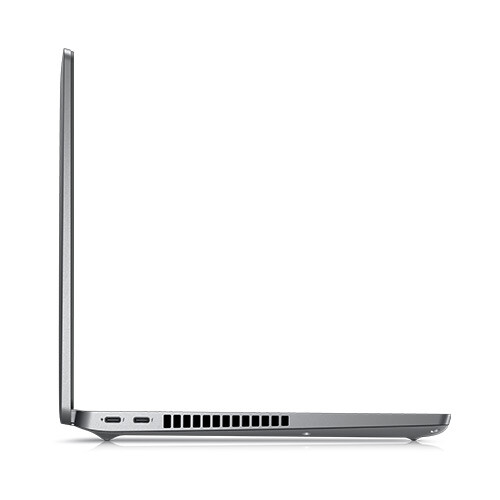

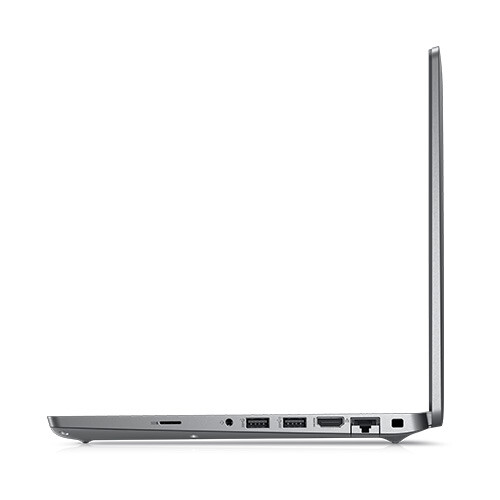

Dell Latitude 5430 14″ i7-1255U/16GB/512GB SSD Laptop

Specifications:

Design:

• Product type: Notebook
• Form factor: Clamshell
• Intel® vPro™ Platform Eligibility: Yes

Display:

• Display diagonal: 35.6 cm (14´´)
• Display resolution: 1920 x 1080 pixels
• HD type: Full HD
• Panel type: WVA
• LED backlight: Yes
• Native aspect ratio: 16:9
• Anti-glare screen: Yes
• Display brightness: 250 cd/m²
• Pixel pitch: 0.179 x 0.179 mm
• Pixel density: 157 ppi
• RGB colour space: NTSC
• Colour gamut: 45%
• Display response rise/fall: 25 ms
• Maximum refresh rate: 60 Hz
• Contrast ratio (typical): 700:1

Processor:

• Processor manufacturer: Intel
• Processor generation: 12th gen Intel® Core™ i7
• Processor model: i7-1255U
• Processor boost frequency: 4.7 GHz
• Processor family: Intel® Core™ i7
• Processor cores: 10
• Processor threads: 12
• Processor cache: 12 MB

Memory:

• Internal memory: 16 GB
• Internal memory type: DDR4-SDRAM
• Memory clock speed: 3200 MHz
• Memory form factor: SO-DIMM
• Memory layout (slots x size): 2 x 8 GB
• Memory slots: 2x SO-DIMM
• Maximum internal memory: 64 GB

Storage:

• Total storage capacity: 512 GB
• Storage media: SSD
• Total SSDs capacity: 512 GB
• Number of SSDs installed: 1
• SSD capacity: 512 GB
• SSD interface: NVMe,PCI Express
• SSD form factor: M.2
• SSD performance class: 35
• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC

Graphics:

• On-board graphics card: Yes
• On-board graphics card model: Intel Iris Xe Graphics

Audio:

• Audio chip: Realtek ALC3204
• Audio system: MaxxAudio Pro
• Number of built-in speakers: 2
• Speaker power: 2 W
• Built-in microphone: Yes
• Number of microphones: 2

Camera:

• Front camera: Yes
• Front camera resolution (numeric): 0.92 MP
• Front camera resolution: 1920 x 1080 pixels
• Front camera HD type: Full HD
• Video capturing speed: 30 fps
• Infrared (IR) camera: Yes
• Privacy camera: Yes
• Privacy type: Privacy shutter

Network:

• Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
• Wi-Fi standards: 802.11a,Wi-Fi 5 (802.11ac),802.11b,Wi-Fi 6 (802.11ax),802.11g,Wi-Fi 4 (802.11n),Wi-Fi 6E (802.11ax)
• Wi-Fi data rate (max): 2400 Mbit/s
• Antenna type: 2×2
• WLAN controller model: Intel Wi-Fi 6E AX211
• WLAN controller manufacturer: Intel
• Ethernet LAN: Yes
• Ethernet LAN data rates: 10,100,1000 Mbit/s
• Bluetooth: Yes
• Bluetooth version: 5.2
• WWAN: Yes

Ports & interfaces:

• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• Ethernet LAN (RJ-45) ports: 1
• HDMI ports quantity: 1
• HDMI version: 2.0
• Thunderbolt 4 ports quantity: 2
• Intel® Thunderbolt 4: Yes
• Combo headphone/mic port: Yes
• Charging port type: USB Type-C
• USB Type-C DisplayPort Alternate Mode: Yes
• USB Power Delivery: Yes
• PowerShare: Yes
• Number of USB ports with PowerShare support: 1

Keyboard:

• Pointing device: Clickpad
• Keyboard language: English/Arabic
• Keyboard backlit: Yes

Processor special features:

• Intel Flex Memory Access: Yes
• Intel Trusted Execution Technology: Yes
• Intel VT-x with Extended Page Tables (EPT): Yes
• Execute Disable Bit: Yes
• CPU configuration (max): 1
• Intel Virtualization Technology for Directed I/O (VT-d): Yes
• Intel Virtualization Technology (VT-x): Yes

Battery:

• Battery technology: Lithium-Ion (Li-Ion)
• Number of battery cells: 4
• Battery capacity (Watt-hours): 58 Wh
• Battery voltage: 7.6 V
• Battery recharge time: 4 h
• Fast charging: Yes
• Battery weight: 230 g

Power:

• AC adapter power: 65 W
• AC adapter frequency: 50/60 Hz
• AC adapter input voltage: 100 240 V
• USB charging voltage: 20,5,9,15 V
• USB charging current: 3.25 A

Security:

• Cable lock slot: Yes
• Fingerprint reader: Yes
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Password protection: Yes

Operational conditions:

• Operating temperature (T-T): 0 35 °C
• Storage temperature (T-T): -40 65 °C
• Operating relative humidity (H-H): 10 90%
• Storage relative humidity (H-H): 0 95%
• Operating altitude: -15.2 3048 m
• Non-operating altitude: -15.2 10668 m
• Operating shock: 110 G
• Non-operating shock: 160 G
• Operating vibration: 0.66 G
• Non-operating vibration: 1.3 G

Weight & dimensions:

• Width: 321.4 mm
• Depth: 212 mm
• Height (front): 1.93 cm
• Height (rear): 2.09 cm
• Weight: 1.36 kg
