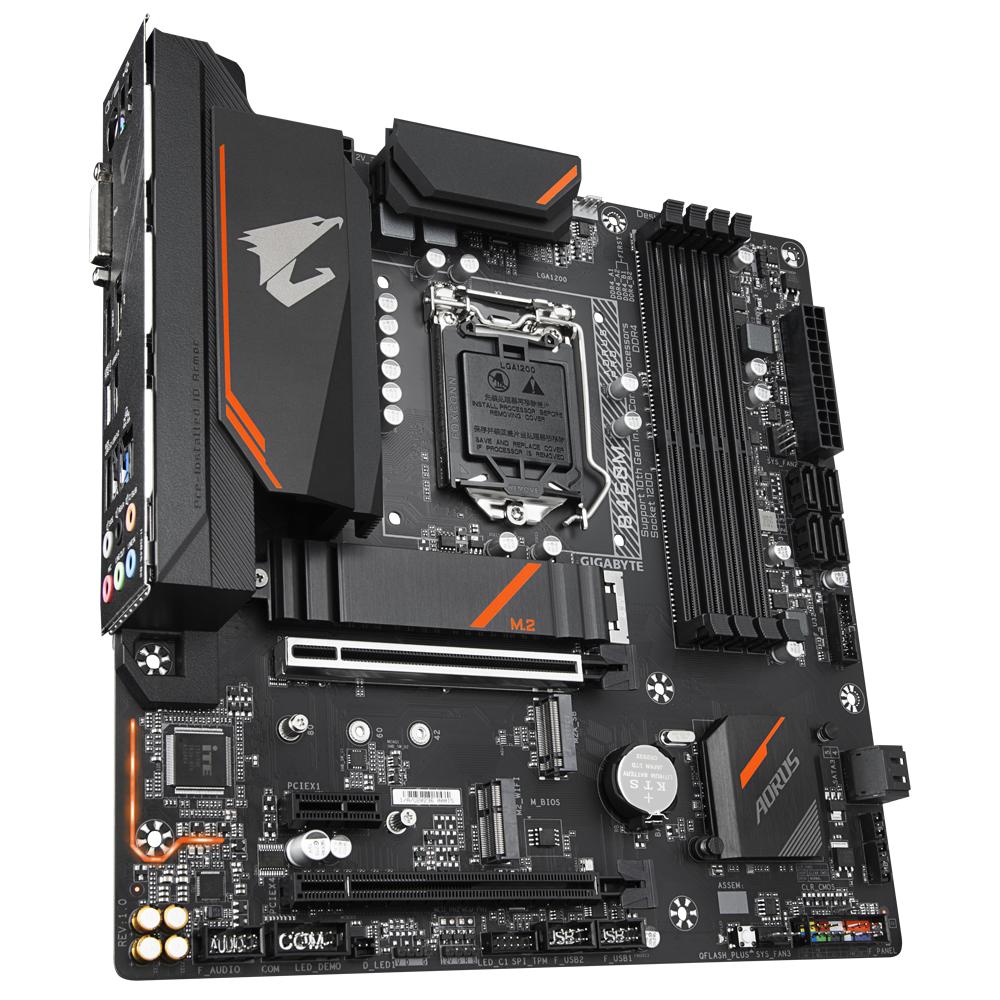

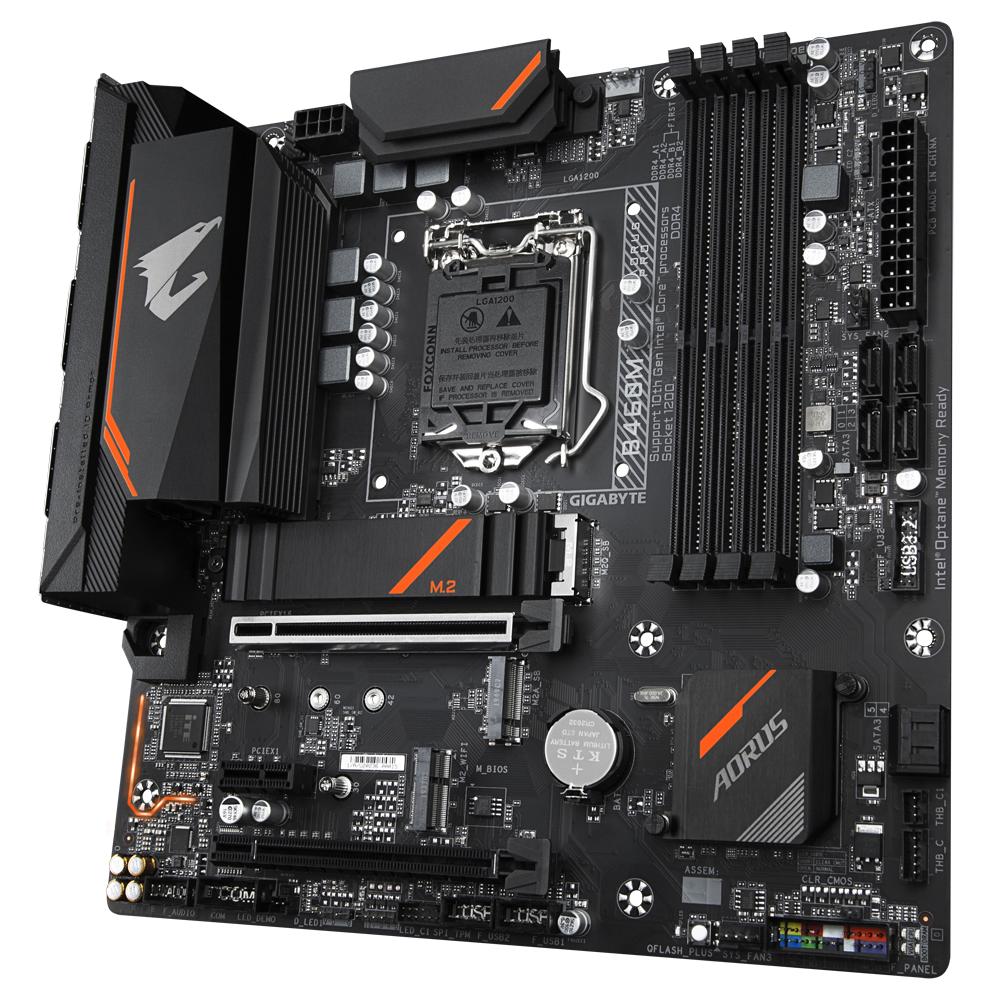

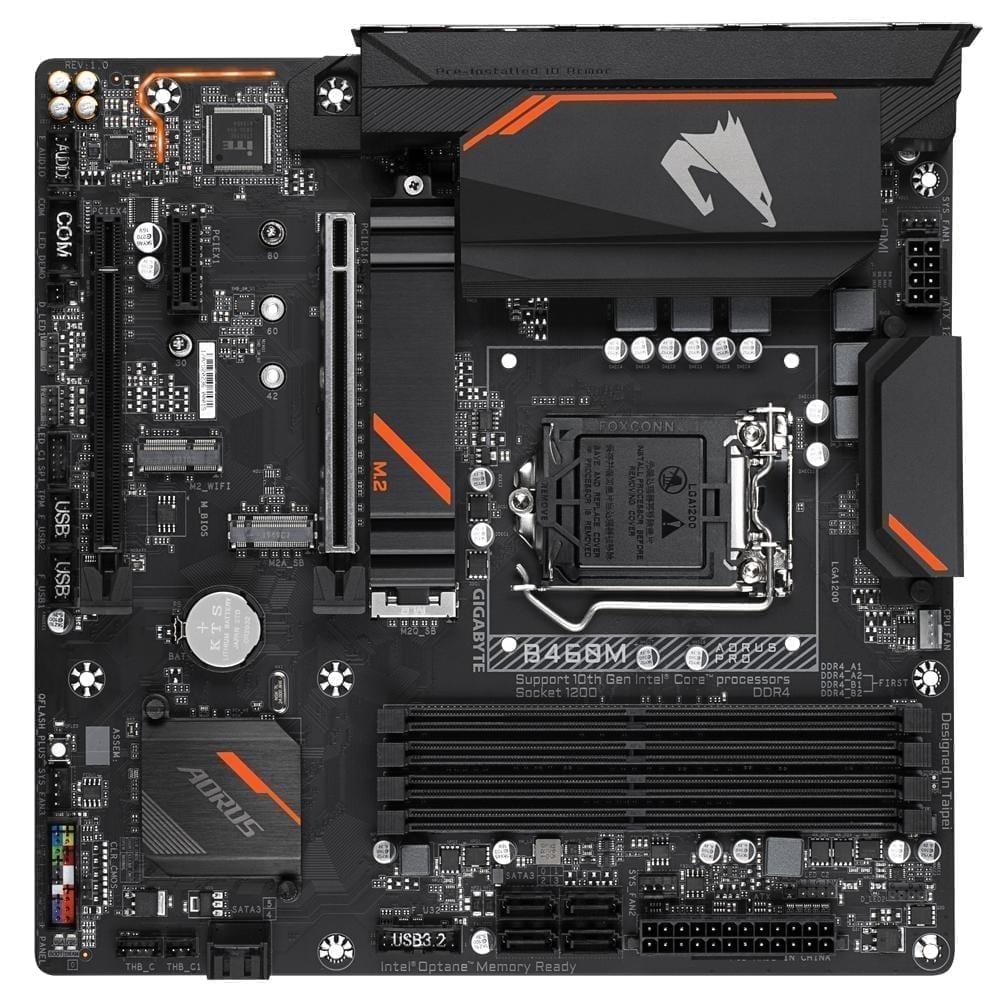

Gigabyte B460M AORUS PRO (rev. 1.0) Motherboard

Gigabyte B460M AORUS PRO (rev. 1.0) Motherboard

Out of stock

549 ر.س

Intel® B460 AORUS Motherboard with RGB Fusion 2.0 with Digital LEDs, Intel® GbE LAN with cFosSpeed, Advanced Thermal Design with Enlarged Heatsink, USB 3.2 Gen1 Type-C , Dual M.2 Slots, M.2 E-key Slot for PCIe WIFI Module Upgradable

  • Supports 10th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Advanced Thermal Design with Enlarged Heatsink
  • Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Ultra-Fast NVMe PCIe 3.0 x4 M.2 with Thermal Guard
  • Blazing Fast Intel® GbE LAN with cFosSpeed
  • Intel® USB 3.2 Gen1 Type-C™ Support
  • M.2 E-key Slot for PCIe WIFI Module Upgradable
  • AMP-UP Audio with ALC1200 with Nichicon MW Audio Capacitors
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Pre-installed IO Shield for Easy and Quick Installation
  • Q-Flash Plus Update BIOS without Installing the CPU、Memory and Graphics Card
  • Intel® Optane™ Memory Ready

Out of stock

SKU: M/B B460M AORUS PRO Categories: , ,
CPU
  1. Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
  2. L3 cache varies with CPU

(Please refer to “CPU Support List” for more information.)

Chipset
  1. Intel® B460 Express Chipset
Memory
  1. Intel® Core™ i9/i7 processors:
    Support for DDR4 2933/2666/2400/2133 MHz memory modules
  2. Intel® Core™ i5/i3/Pentium®/Celeron® processors:
    Support for DDR4 2666/2400/2133 MHz memory modules
  3. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules

(Please refer to “Memory Support List” for more information.)

Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:

  1. 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
    * The DVI-D port does not support D-Sub connection by adapter.
  2. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
    * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
  3. 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
    * Support for HDMI 1.4 version and HDCP 2.3.

Support for up to 3 displays at the same time
Maximum shared memory of 512 MB

Audio
  1. Realtek® ALC1200 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
LAN
  1. Intel® GbE LAN chip (1000 Mbit/100 Mbit)
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
  3. 1 x PCI Express x1 slot
    (All of the PCI Express slots conform to PCI Express 3.0 standard.)
  4. 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)

Supports up to ASPM L1.2 power management protocols.

Storage Interface
    1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q_SB)
    2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2A_SB)
    3. 6 x SATA 6Gb/s connectors
    4. Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
      * Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
    5. Intel® Optane™ Memory Ready
    6. * System Acceleration with Intel

Optane™ Memory enabled on the M2Q_SB connector only.M.2 connectors support up to ASPM L1.2 PCIe power management protocols.

USB
Chipset:

  1. 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 1 support
  2. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
  3. 2 x USB 2.0/1.1 ports on the back panel

Chipset+USB 2.0 Hub:

  1. 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 3 x system fan headers
  5. 2 x addressable LED strip headers
  6. 2 x RGB LED strip headers
  7. 6 x SATA 6Gb/s connectors
  8. 2 x M.2 Socket 3 connectors
  9. 1 x front panel header
  10. 1 x front panel audio header
  11. 1 x USB 3.2 Gen 1 header
  12. 2 x USB 2.0/1.1 headers
  13. 2 x Thunderbolt™ add-in card connectors
  14. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  15. 1 x serial port header
  16. 1 x Clear CMOS jumper
  17. 1 x Q-Flash Plus button

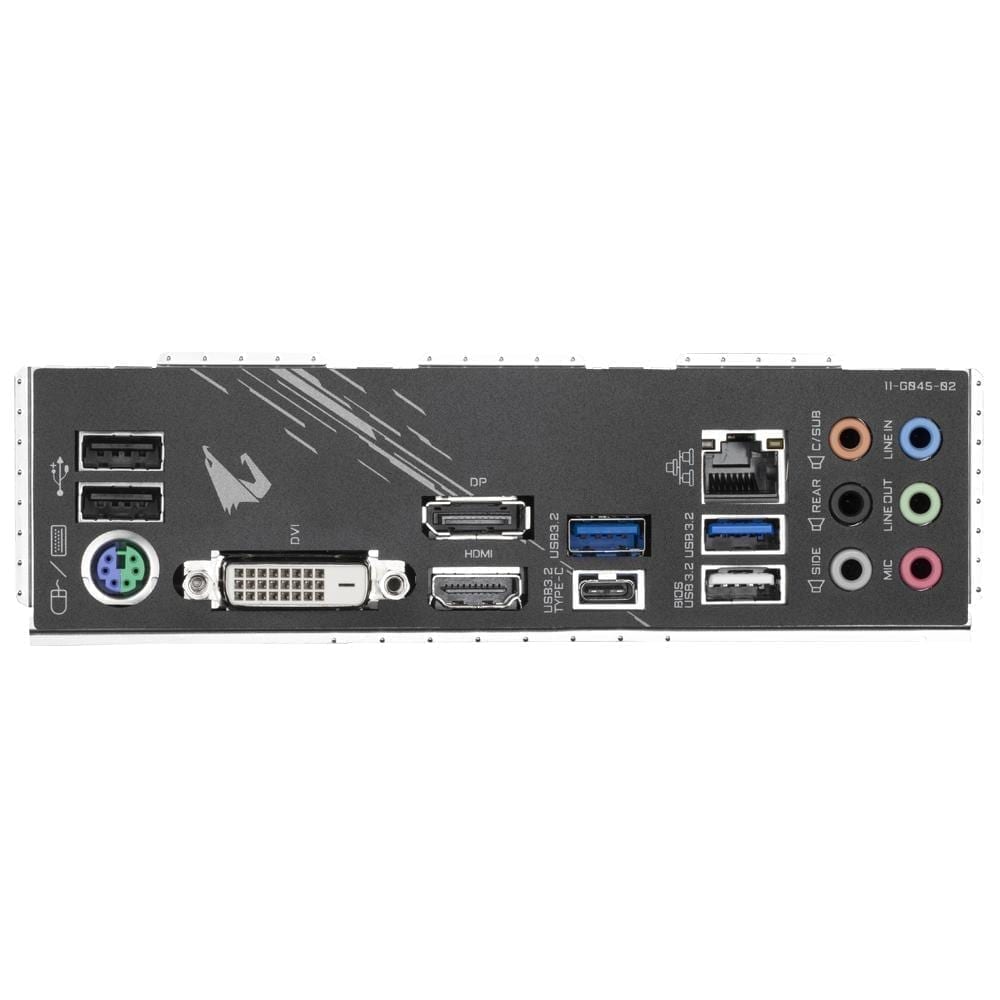

Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x DVI-D port
  3. 1 x DisplayPort
  4. 1 x HDMI port
  5. 1 x USB Type-C™ port, with USB 3.2 Gen 1 support
  6. 3 x USB 3.2 Gen 1 ports
  7. 2 x USB 2.0/1.1 ports
  8. 1 x RJ-45 port
  9. 6 x audio jacks
I/O Controller
  1. iTE® I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Overheating warning
  5. Fan fail warning
  6. Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  1. 1 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install
Bundled Software
  1. Norton® Internet Security (OEM version)
  2. cFosSpeed
Operating System
  1. Support for Windows 10 64-bit
Form Factor
  1. Micro ATX Form Factor; 24.4cm x 24.4cm
Weight 0.5 kg
