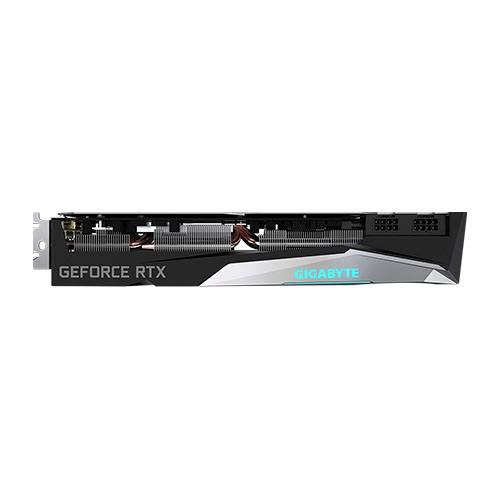

Gigabyte GeForce RTX™ 3060 Ti GAMING OC D6X 8G

Specifications

• Graphics Processing GeForce RTX™ 3060 Ti
• Core Clock 1755 MHz (Reference Card: 1665 MHz)
• CUDA® Cores 4864
• Memory Clock 19000 MHz
• Memory Size 8 GB
• Memory Type GDDR6X
• Memory Bus 256 bit
• Memory Bandwidth (GB/sec) 608 GB/s
• Card Bus PCI-E 4.0
• Digital max resolution 7680×4320
• Multi-view 4
• Card size L=286 W=115 H=51 mm
• PCB Form ATX
• DirectX 12 Ultimate
• OpenGL 4.6
• Recommended PSU 750W
• Power Connectors 8 pin * 2
• Output DisplayPort 1.4a *2 HDMI 2.1 *2
• SLI Support N/A
• Accessories Quick guide





ALTERNATE SPINNING

Reduce the turbulence of adjacent fans and increase air pressure.



SMOOTH AIRFLOW

GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.



3D ACTIVE FAN

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.



UNIQUE BLADE FAN

The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.



GRAPHENE NANO LUBRICANT

Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.



SCREEN COOLING

Extended heatsink design allows air flow to pass through, providing better heat dissipation.



HEAT PIPES DIRECT TOUCH

The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.



RGB FUSION

With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.



PROTECTION METAL BACK PLATE

The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.



FRIENDLY PCB DESIGN

Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.



EXTREME OVERCLOCKING AND ULTRA DURABLE

The graphics card features excellent power phase design to allow the MOSFETs to operate at lower temperatures and provide a more stable voltage output. Load balancing of each MOSFET can effectively improve the overclocking performance and extend the life of the card. Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.



GIGABYTE CONTROL CENTER

GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
