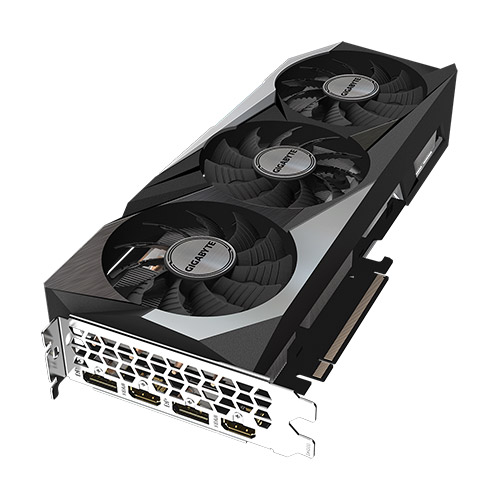

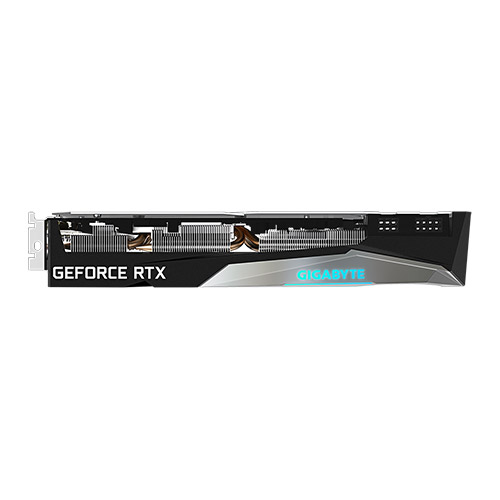

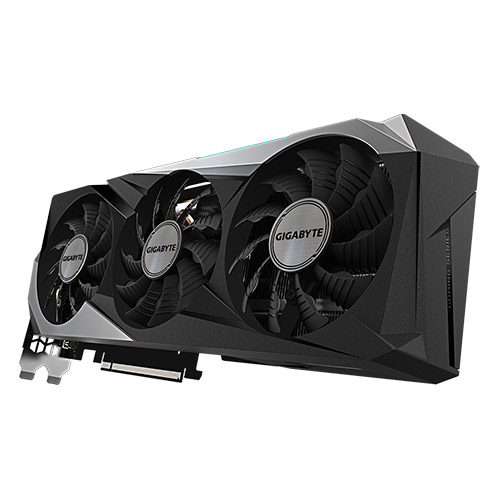

Gigabyte GeForce RTX™ 3060 Ti Gaming OC PRO 8G Graphic Card LHR

  • NVIDIA Ampere Streaming Multiprocessors
  • 2nd Generation RT Cores
  • 3rd Generation Tensor Cores
  • Powered by GeForce RTX™ 3060 Ti
  • Integrated with 8GB GDDR6 256-bit memory interface
  • WINDFORCE 3X Cooling System with alternate spinning fans
  • RGB Fusion 2.0
  • Protection metal back plate
SKU: GV-N306TGAMINGOC PRO-8GD Categories: , , ,
  • Graphics Processing GeForce RTX™ 3060 Ti
  • Core Clock 1770 MHz (Reference Card: 1665 MHz)
  • CUDA® Cores 4864
  • Memory Clock 14000 MHz
  • Memory Size 8 GB
  • Memory Type GDDR6
  • Memory Bus 256 bit
  • Memory Bandwidth (GB/sec) 448 GB/s
  • Card Bus PCI-E 4.0 x 16
  • Digital max resolution 7680×4320
  • Multi-view 4
  • Card size L=286 W=115 H=51 mm
  • PCB Form ATX
  • DirectX 12 Ultimate
  • OpenGL 4.6
  • Recommended PSU 650W
  • Power Connectors 8 pin*1 + 6 pin*1

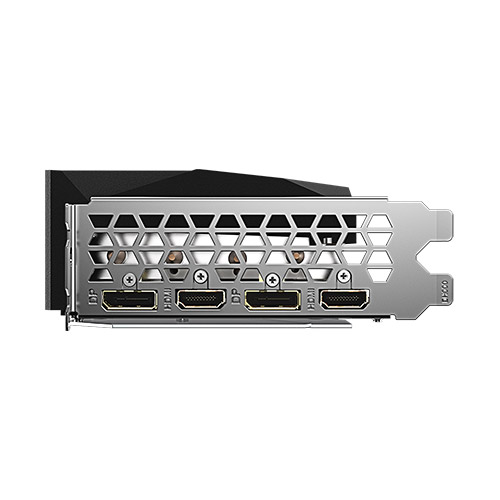

  • Output DisplayPort 1.4a *2 HDMI 2.1 *2
  • SLI Support N/A
  • Accessories Quick guide



FEATURES

NVIDIA Ampere Streaming Multiprocessors
2nd Generation RT Cores
3rd Generation Tensor Cores
Powered by GeForce RTX™ 3060 Ti
Integrated with 8GB GDDR6 256-bit memory interface
WINDFORCE 3X Cooling System with alternate spinning fans
RGB Fusion 2.0
Protection metal back plate



CORE CLOCK

1770 MHz (Reference Card: 1665 MHz)

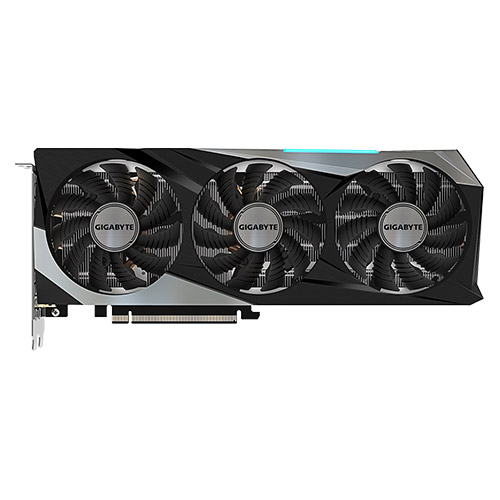

WINDFORCE 3X COOLING SYSTEM

The WINDFORCE 3X cooling system features 3X80mm unique blade fans, alternate spinning, 5 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.



ALTERNATE SPINNING

Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure.



SMOOTH AIRFLOW

GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.



3D ACTIVE FAN

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.



UNIQUE BLADE FAN

The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.



GRAPHENE NANO LUBRICANT

Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.



SCREEN COOLING

Extended heatsink design allows air flow to pass through, providing better heat dissipation.



HEAT PIPES DIRECT TOUCH

The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.



RGB FUSION 2.0

With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.

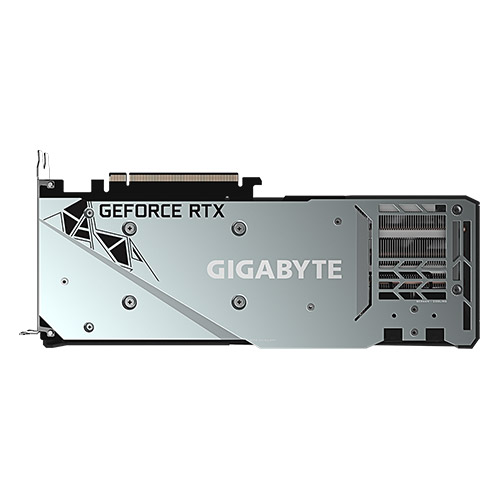

PROTECTION METAL BACK PLATE

The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.



DUAL BIOS

Silent mode will provide a quieter experience. The mode switch requires a reboot to take effect. The default is OC mode.



EXTREME DURABILITY AND OVERCLOCKING

The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.



FRIENDLY PCB DESIGN

Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.



AORUS ENGINE

The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.



Weight 0.5 kg
