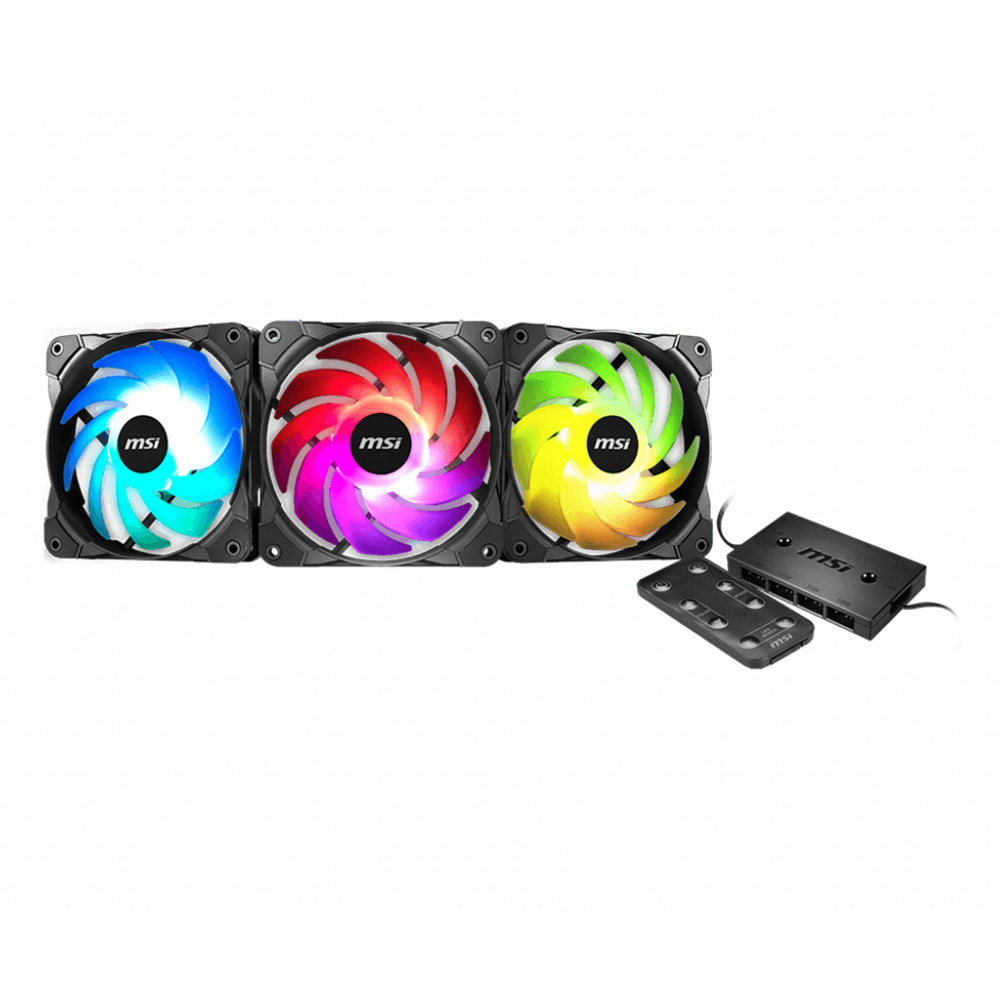

MSI MAX F12A-3H – ARGB Fan – OE3-7G09F04-W57

  • Fan Included Addressable RGB Fan x 3
  • Fan Dimension 120 x 120 x 25 mm/ 4.7 x 4.7 x 1 inch
  • Light Addressable RGB
  • Fan Speed 600 ± 200 (30%DUTY) ~ 1500 ± 10% RPM
SKU: OE3-7G09F04-W57 Categories: , , ,


Fan Included
Addressable RGB Fan x 3
Fan Speed
600 ± 200 (30%DUTY) ~ 1500 ± 10% RPM
Fan Noise Level 20.0 ~ 28.0 dBA
Fan Connector
3-Pin (Addressable RGB) / 4-Pin (PWM)
Addressable RGB
Air Flow 8 ~ 40.1 CFM
Air Pressure
0.30 ~ 1.50 mmH2O
Rated Voltage 12 VDC
Rated Current 0.15A ± 20%
Bearing Type Hydro Bearing
ARGB Controller Dimension
80 x 46 x 12 mm/ 3.1 x 1.8 x 0.5 inch
ARGB Controller Connector
SATA Power x 1/ 3-Pin (Addressable RGB) x 8
RF Remote Selectable Effect Speed Support Yes
RF Remote Selectable ARGB Color Support Yes
RF Remote Selectable Effect Mode Support Yes

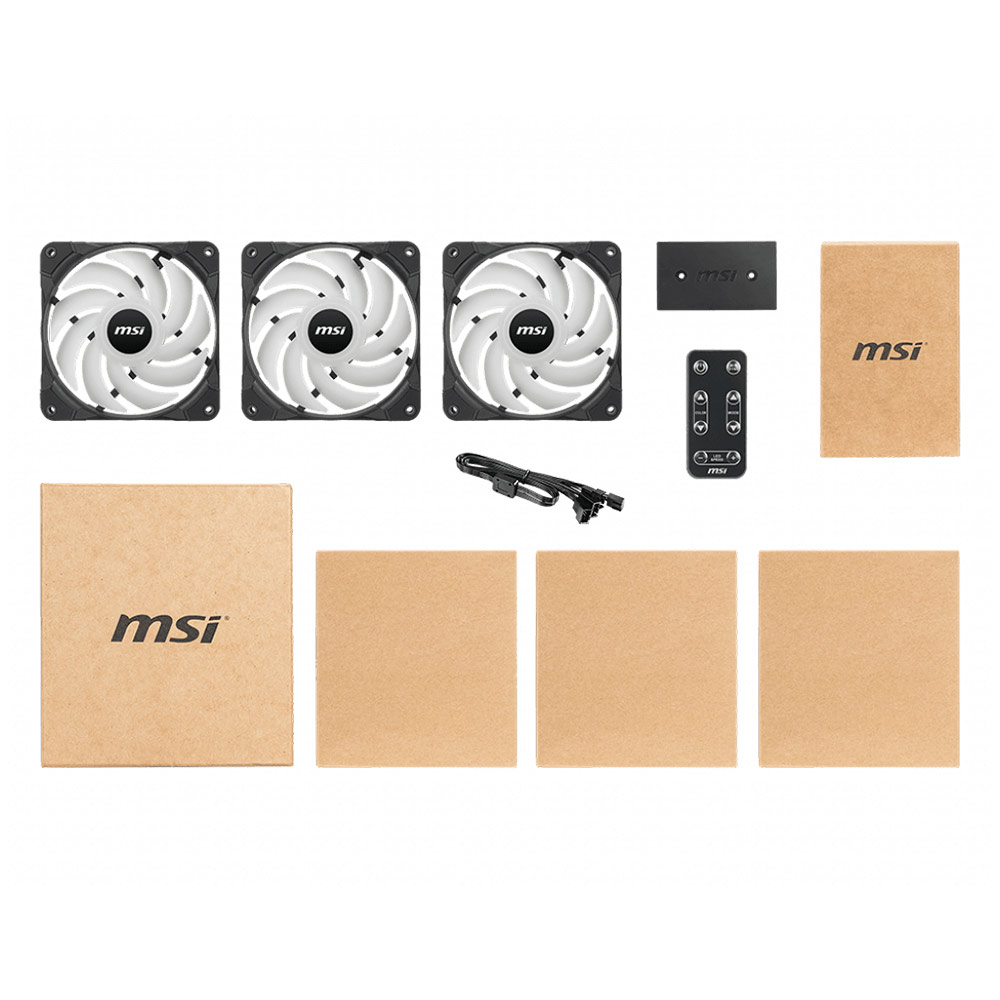

Package Contents
Addressable RGB Fan x 3 ARGB Controller x 1 RF Remote x 1 1 to 3 PWM Fan Splitter Cable 450 mm x 1 Screw x 14
Weight 161 g x 3
120 x 120 x 25 mm/ 4.7 x 4.7 x 1 inch


Control is in Your Hands

The 4-PIN PWM design fully supports speed control via the MSI Dragon Center or BIOS setting. This gives users a more complete overview of their fans’ performance as well as the option to decide what they want for their fans.


Less is More

The 1 to 3 cable provides multiple positive attributes. By decreasing the total number of cables from 3 to 1, it saves up more space and makes it easier to keep things organized. This leads to a more embellished case interior as well as solving the issue of not having enough sys fan power pin on the motherboard.


Anti-Vibration Gasket Pads

Noise and vibration are both reduced with the brand new anti-vibration gasket pad. The silicone made pad is shock-absorbing and is capable of reducing the vibration of the fan to the minimum. This decreases the fans’ noise and improves the overall users’ experiences.



MSI Mystic Light SYNC built with open SDK for all the peripherals. With Mystic Light application, you can easily control all the color and effect in one application.



The Addressable RGB Controller with RF Remote easily fits inside your case. It conveniently attaches to any metallic surface with its built in magnet, and allows users to cycle through lighting effects, effect speeds, and colors with remote control.


Sync With the motherboard

Connect the LED Switch port on the hub to the front panel of the chassis to make the reset button an LED effect button. (The reset button and the led effect button cannot work at the same time)


LED effects control Button

Keep pressing the LED button for three seconds, and then users can control the lighting effects via syncing with the motherboard by MSI mystic light app.



The included 1 to 8 LED HUB can manage system lights via the LED effects control button and provides seven different modes of lighting effects.



The MAG MAX F12A-3H features addressable RGB LEDs function that controls fans’ lighting effects through the motherboard and supports plug-and-play functionality to showcase vibrant lighting and bright lighting changes.

Fans of MSI ARGB Series are compatible with 5V JRainbow headers.

Please checks the compatibility list for more information.

Weight 0.5 kg
