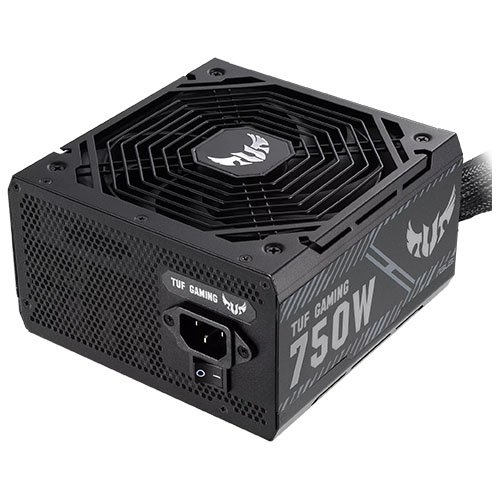

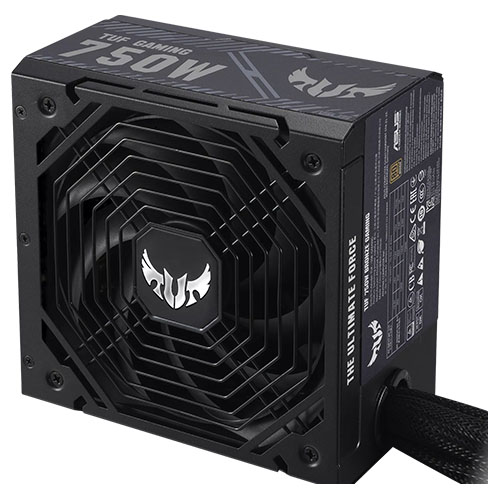

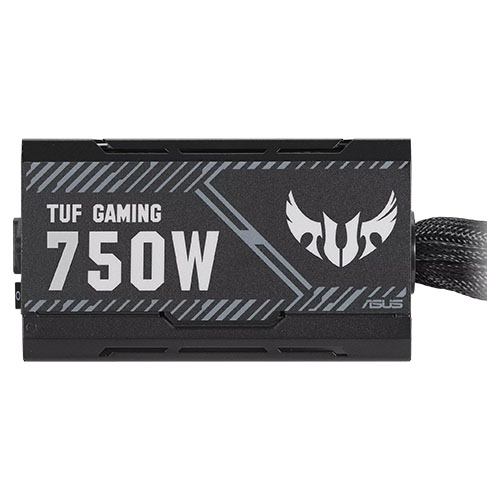

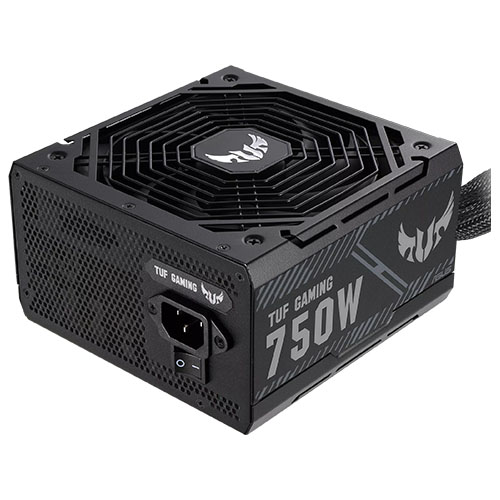

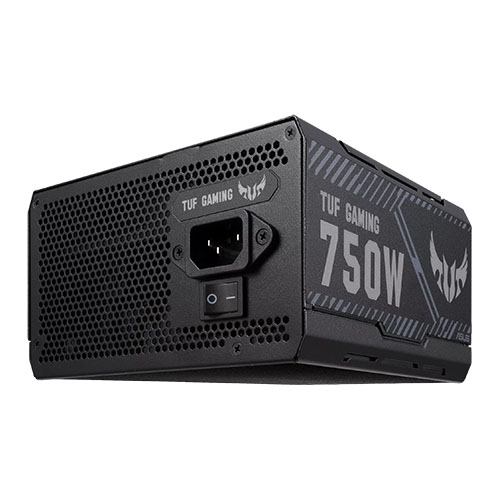

ASUS TUF-GAMING-750B Power Supply
- Model TUF-GAMING-750B
- Dimensions 15 x 15 x 8.6 Centimeter
- Efficiency 80Plus Bronze
- Protection Features OPP/OVP/UVP/SCP/OCP/OTP
- Hazardous Materials ROHS
- AC Input Range 100-240Vac
- DC Output Voltage #ERROR!
- Maximum Load 25A 25A 62A 0.8A 3A
- Combined Load 130W 130W 744W 9.6W 15W
- Total Output 750W
Specifications
| Model | TUF-GAMING-750B |
| Dimensions | 15 x 15 x 8.6 Centimeter |
| Efficiency | 80Plus Bronze |
| Protection Features | OPP/OVP/UVP/SCP/OCP/OTP |
| Hazardous Materials | ROHS |

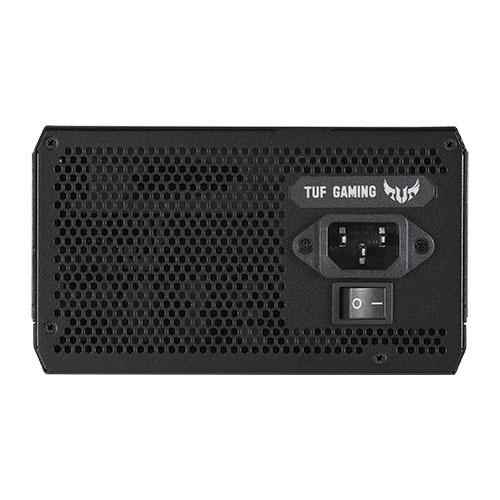

| AC Input Range | 100-240Vac |
| DC Output Voltage | #ERROR! |

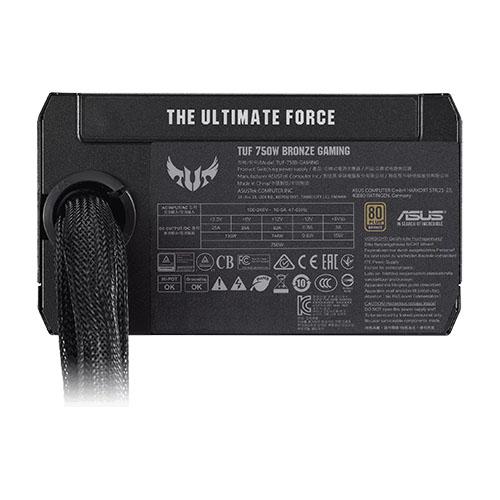

| Maximum Load | 25A 25A 62A 0.8A 3A |
| Combined Load | 130W 130W 744W 9.6W 15W |
| Total Output | 750W |
| Connectors | MB 24/20-pin x1 CPU 4+4-pin x2 PCI-E 6+2-pin x4 SATA x8 Periplheral x4 |
| Package Contents | Power Cord x 1 Motherboard Power Cable x 1 (600mm) CPU Cable x 2 (800mm) PCI-E 1-to-2 Cable x 2 (600mm) SATA 1-to-4 Cable x 2 (400+120+120+120mm) Peripheral 1-to-4 Cable x 1 (400+150+150+150mm) TUF Gaming sticker x1 |
| Weight | Single PSU : 2.18KG Product Weight (with packing) : 2.87KG |
| 0dB Fan Button | No |
- Capacitors and chokes pass demanding tests to achieve Military-grade Certification.
- Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
- A protective PCB coating protects against moisture, dust, and extreme temperatures.
- An 80 Plus Bronze Certification is earned with high-quality components that pass rigorous testing.
- Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
- 0dB technology lets you enjoy light gaming in relative silence.
- Sleeved cables leave your rig looking tactically clean.
- 80cm 8-pin CPU connector (EPS 12V)
Built For The Long Haul
TUF Gaming series PSUs bring military-grade components and a robust cooling solution together to create a power platform you can depend on. High-quality capacitors and chokes undergo a myriad of tests, including extreme temperatures and vibration tests, to ensure they meet rigorous military specifications. An Axial-tech fan with a dual ball fan bearing design offers more longevity than other fan types, increasing the overall lifespan of the product. It’s the perfect PSU to slot into a TUF Gaming rig or any DIY build designed to power through AAA games for years to come.
Military−grade Certification
Top marks
All critical capacitors and chokes in TUF Gaming PSUs are certified to military-grade specifications, ensuring reliable operation over a wide range of temperatures.
Dual Ball Fan Bearings
2x longer lifespan

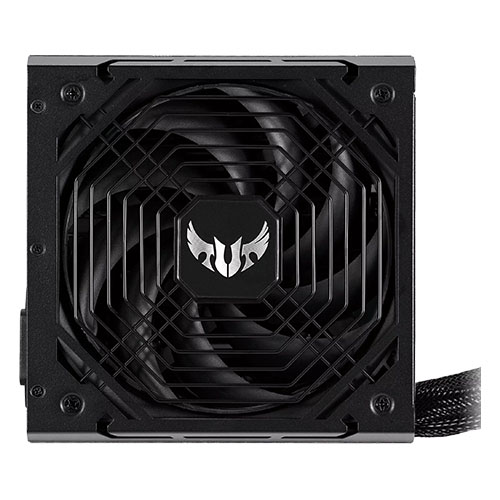

Exemplary cooling is provided by a 135mm fan spinning on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.
Protective PCB Coating
All wrapped up
A protective conformal coating envelops the PCB to protect against short-circuits caused by moisture, dust, and debris.
0dB Technology
Quiet intelligence
An onboard controller brings the 135mm fan to a standstill when thermal design power (TDP) is below 30%, letting you enjoy light gaming in relative silence. Above 30% TDP, the fans automatically start up again.
Axial−tech Fan Design
Better, faster, stronger
Originally developed for top-end ROG graphics cards, Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. For TUF Gaming series PSUs, we’ve scaled that design to 135mm so it keeps things cool at low RPMs while producing less noise.
0dB Technology
Quiet intelligence
An onboard controller brings the 135mm fan to a standstill when thermal design power (TDP) is below 30%, letting you enjoy light gaming in relative silence. Above 30% TDP, the fans automatically start up again.
Sleeved Cables
Slim-fit
Cables swathed in black sleeving leave your rig looking tactically clean.
| Weight | 5 kg |
|---|
