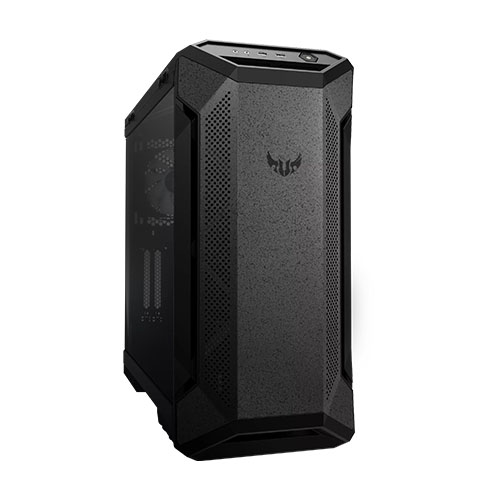

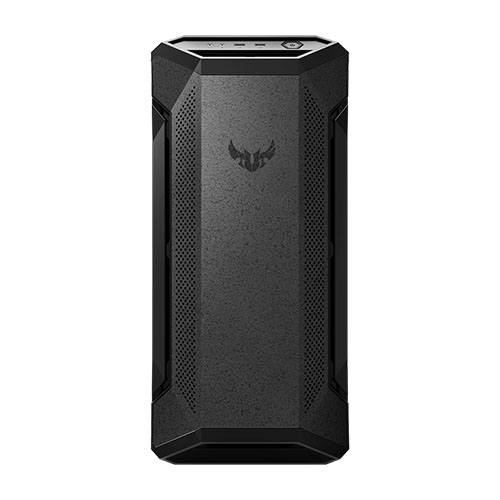

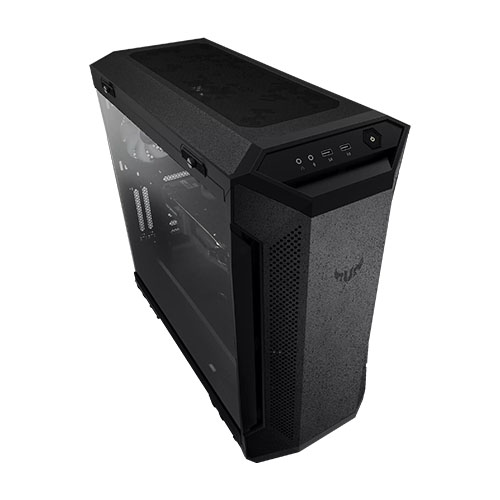

ASUS TUF Gaming GT501VC Tower Case
- Model TUF Gaming GT501VC
- Case Size Mid Tower
- Motherboard Support EATX (12″x10.9″) ATX Micro-ATX Mini-ITX
- Drive Bays 3 x 2.5″ Bay 4 x 2.5″/3.5″ Combo Bay
- Expansion Slots 7 2 (additional vertical)
- Front I/O Port 1 x Headphone 1 x Microphone 2 x USB 3.1 Gen1
- Tempered Glass Left Side
Specifications
| Model | TUF Gaming GT501VC |
| Case Size | Mid Tower |
| Motherboard Support | EATX (12″x10.9″) ATX Micro-ATX Mini-ITX |
| Drive Bays | 3 x 2.5″ Bay 4 x 2.5″/3.5″ Combo Bay |
| Expansion Slots | 7 2 (additional vertical) |
| Front I/O Port | 1 x Headphone 1 x Microphone 2 x USB 3.1 Gen1 |
| Tempered Glass | Left Side |
| Radiator Support (Front) | 120 mm 140 mm 240 mm 280 mm 360 mm |
| Radiator Support (Top) | 120 mm 140 mm 240 mm 280 mm 360 mm |
| Radiator Support (Rear) | 120 mm 140 mm |
| Cooling Support (Front) | 3 x 120 mm 2 x 140 mm |
| Cooling Support (Top) | 3 x 120 mm 2 x 140 mm |
| Cooling Support (Rear) | 1 x 120 mm 1 x 140 mm |
| Pre-installed Fans (Front) | None |
| Pre-installed Fans (Rear) | None |
| Maximum CPU Cooler Height | 180 mm |
| Maximum GPU Length | 420 mm |
| Maximum PSU Length | 240 mm |
| Removable Dust Filters | Front Top Bottom |
| Maximum Cable Management Space | 30 mm |
| Dimensions | 251 x 545 x 552 mm |
| Weight | 9.9Kg |
ASUS TUF Gaming GT501VC case supports up to EATX with metal front panel, tempered-glass side panel, 360mm water-cooling radiators space reserved, and USB 3.1 Gen 1
- Designed to be noticed: Metal front panel with custom TUF Gaming spatter pattern, and 4mm-thick, smoked, tempered-glass side panel to showcase your build’s internals.
- Space reserved: For both front- and top-mounted 360mm water-cooling radiators plus a 140mm radiator at the rear.
- Show off your build: Its shell is made of SGCC steel with durable fluorocarbon paint that provides stable protection for the components and the smoked style of the tempered glass inherits the restrained style of TUF Gaming GT501, allow gamers to better showcase their personalized build.
Show Your TUF Personality
With a full-height, smoked-glass side panel, GT501VC lets you show off your build from top to bottom – so your components, customizations and Aura illuminations are all clearly visible. This panel is tempered for strength, and hinged at the bottom for opening ease.
Cooling Fan Design
It’s easy to upgrade cooling when you need, with up to seven mounting points for the installation of fans.
Easy PC DIY
GT501VC makes PC DIY easier than ever. Integrated cable-management ensures neatness, while pre-installed physical supports for the motherboard eliminates additional costs and mean you’re ready to build from the get-go. It all adds up to design with you in mind for an unrivaled PC-building experience.
Keep Your Build Like New
Removable dust filters effectively prevent airborne particulates from entering TUF Gaming GT501VC, keeping your system’s internals looking as good as new for longer. The top and front filter are magnetic for a tight seal, and quick removal and cleaning, while the lower dust-trap is easily slid in and out to enable fast maintenance.
| Weight | 5 kg |
|---|
