ASUS TUF Gaming GT501 Tower Case

  • Designed to be noticed
  • Mobile battle station
  • Efficient cooling
  • Space reserved for both front- and top-mounted 360mm water-cooling radiators
  • Perfect for TUF Gaming motherboards
SKU: 90DC0012-B49000 Categories: , ,

Specifications

Model TUF Gaming GT501
Case Size Mid Tower
Motherboard Support EATX (12″x10.9″) ATX Micro-ATX Mini-ITX
Drive Bays 3 x 2.5″ Bay 4 x 2.5″/3.5″ Combo Bay
Expansion Slots 7 2 (additional vertical)
Front I/O Port 1 x Headphone 1 x Microphone 2 x USB 3.1 Gen1
Tempered Glass Left Side
Radiator Support (Front) 120 mm 140 mm 240 mm 280 mm 360 mm
Radiator Support (Top) 120 mm 140 mm 240 mm 280 mm 360 mm
Radiator Support (Rear) 120 mm 140 mm
Cooling Support (Front) 3 x 120 mm 2 x 140 mm
Cooling Support (Top) 3 x 120 mm 2 x 140 mm
Cooling Support (Rear) 1 x 120 mm 1 x 140 mm
Pre-installed Fans (Front) 3 x 120 mm RGB
Pre-installed Fans (Rear) 1 x 140 mm PWM
Maximum CPU Cooler Height 180mm
Maximum GPU Length 420mm
Maximum PSU Length 240mm
Removable Dust Filters Front Top Bottom
Maximum Cable Management Space 30 mm
Dimensions 552 x 251 x 545 mm
Weight 10.5Kg
AURA Sync RGB



ASUS TUF Gaming GT501 case supports up to EATX with metal front panel, tempered-glass side panel, 120 mm RGB fan, 140 mm PWM fan, radiator space reserved, and USB 3.1 Gen 1

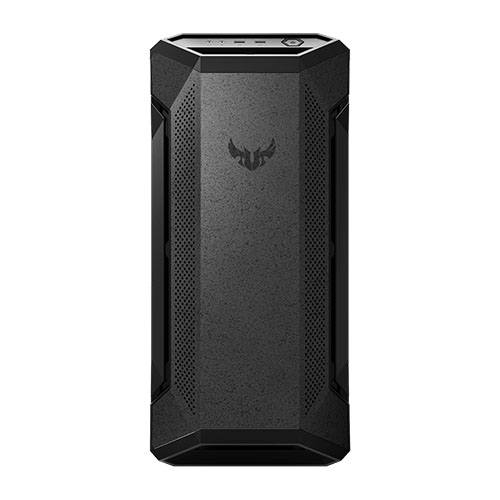

  • Designed to be noticed: Metal front panel with custom TUF Gaming spatter pattern, and 4mm-thick, smoked, tempered-glass side panel to showcase your build’s internals.
  • Mobile battle station: Ergonomic, woven-cotton carry handles enable easy and safe transport up to 30Kg.
  • Efficient cooling: Equipped with three 120mm Aura Sync RGB-illuminated fans and one 140mm rear PWM fan, plus up to seven fan-mounting points for targeted airflow.
  • Space reserved for both front- and top-mounted 360mm water-cooling radiators plus a 140mm radiator at the rear.
  • Perfect for TUF Gaming motherboards: Fan and cable placement optimized for TUF Gaming gear, and ready for perfect cooling control via our Fan Xpert 4 software.

Outstanding Gaming Style

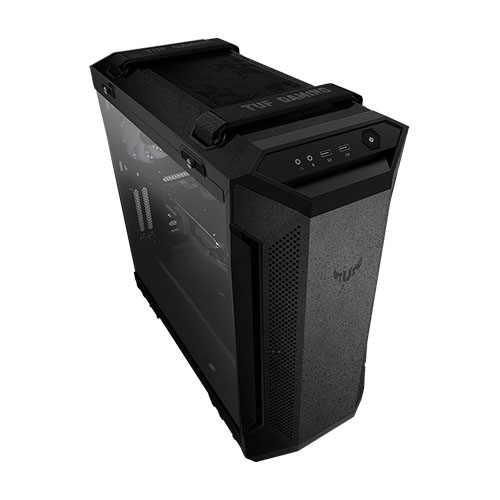

TUF Gaming GT501 is crafted from up to 1.5mm-thick galvanized steel for enhanced durability in understated industrial style, and has a special coating that resists scuffs and scratches. It’s fitted with two ergonomic, woven-cotton handles, rigorously tested to support up to 30kg – so it’s both easy and safe to transport your completed build.



Show Your TUF Personality

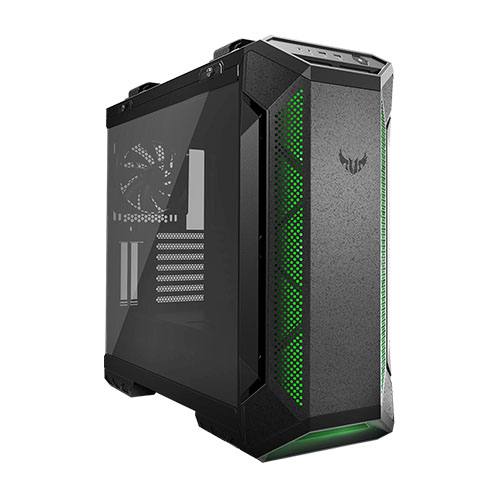

With a full-height, smoked-glass side panel, TUF Gaming GT501 lets you show off your build from top to bottom – so your components, customizations and Aura illuminations are all clearly visible. This panel is tempered for strength, and hinged at the bottom for opening ease.



OUTSHINE THE COMPETITION

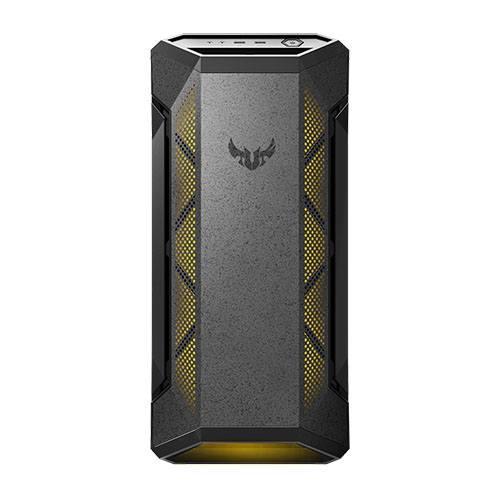

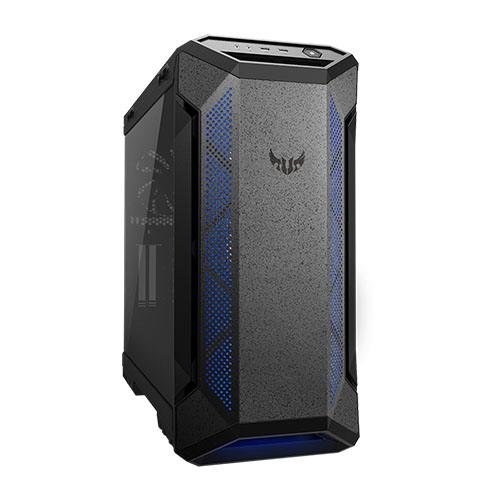

Fitted RGB-enabled fans enable to work with the Aura-supported motherboards. With exclusive ASUS Aura Sync lighting technology*, TUF Gaming GT501 provides ambient lighting that can be synchronized with other Aura Sync-enabled components.



OPTIMIZED COOLING SOLUTION

TUF Gaming GT501’s trio of 120mm Aura Sync RGB fans each contains 11 blades, and deliver high-static-pressure flow for targeted cooling. There’s also a high-airflow 140mm PWM fan for wider heat removal. It’s also easy to upgrade cooling when you need, with up to seven mounting points for the installation of additional fans.



Easy PC DIY

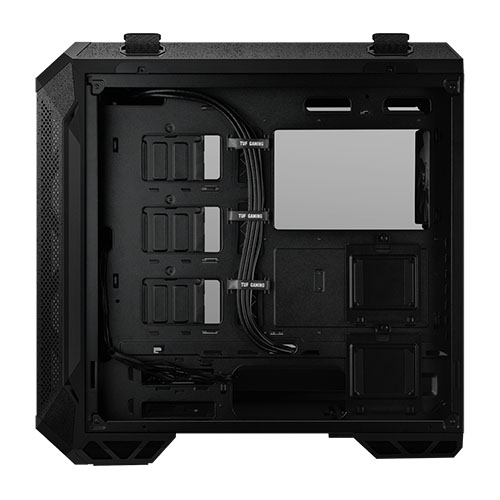

TUF Gaming GT501 makes PC DIY easier than ever. Integrated cable-management ensures neatness, while pre-installed physical supports for the motherboard eliminates additional costs and mean you’re ready to build from the get-go. It all adds up to design with you in mind for an unrivaled PC-building experience.



Keep Your Build Like New

Removable dust filters effectively prevent airborne particulates from entering TUF Gaming GT501, keeping your system’s internals looking as good as new for longer. The top and front filter are magnetic for a tight seal, and quick removal and cleaning, while the lower dust-trap is easily slid in and out to enable fast maintenance.

Weight 5 kg
