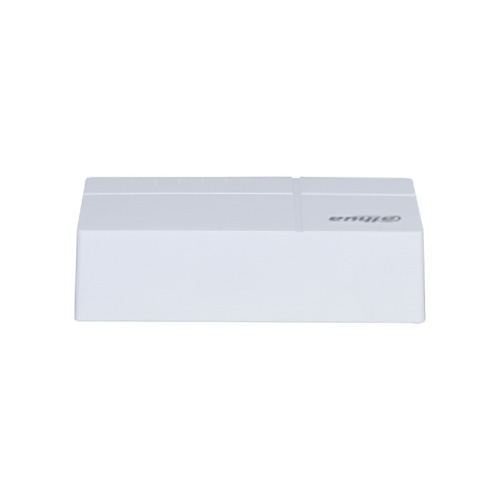

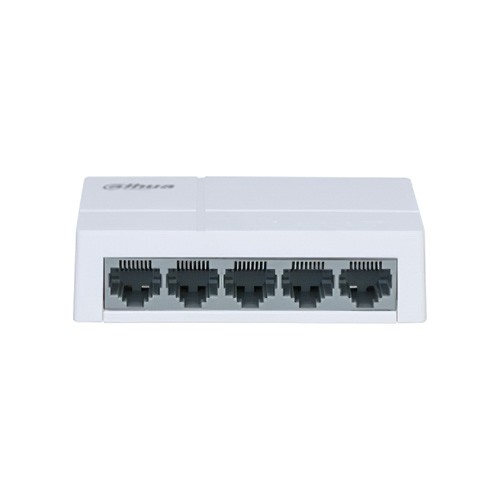

Dahua PFS3005-5ET-L 5-Port Unmanaged Ethernet Switch

Specifications

Hardware

• Included Power Adapter Yes
• Ethernet Port 5
• Ethernet Port Speed 100 Mbps
• Description of Function Slots Port 1–5: 5 × 10/100 Base-T
• Power Supply 5 VDC; 1 A
• Operating Temperature 0 °C to +45 °C (+32 °F to +113 °F)
• Operating Humidity 5%–95% (RH)
• Storage Temperature –40 °C to +70 °C (–40 °F to +158 °F)
• Storage Humidity 5%–95% (RH)
• Power Consumption Idling: 0.1 W; Full load: 0.5 W

Performance

• MTBF 952.50 years
• Switching Capacity 1 Gbit
• Packet Forwarding Rate 0.744 Mpps
• Packet Buffer Size 768 kbit
• MAC Table Size 2K

General

• Statics Protection Air discharge: 8 kV Contact discharge: 4 kV
• Lighting Protection Common mode: 2 kV
• Net Weight 0.12 kg (0.26 lb)
• Gross Weight 0.23 kg (0.51 lb)
• Product Dimensions 86.4 mm × 52.0 mm × 23.0 mm (3.40″ × 2.05″ × 0.91″)
• Packaging Dimensions 94.0 mm × 111.0 mm × 67.0 mm (3.70″ × 4.37″ × 2.64″)
• Casing Material Plastic
• Installation Desktop mount
• Certifications CE; FCC
