MSI GeForce RTX™ 4070 VENTUS 2X 12G OC Graphic Card

Specifications

Model Name	GeForce RTX™ 4070 VENTUS 2X 12G OC
Graphics Processing Unit	NVIDIA® GeForce RTX™ 4070
Interface	PCI Express® Gen 4
Core Clocks	Extreme Performance: 2520 MHz (MSI Center) Boost: 2505 MHz
CUDA® CORES	5888 Units
Memory Speed	21 Gbps
Memory	12GB GDDR6X
Memory Bus	192-bit

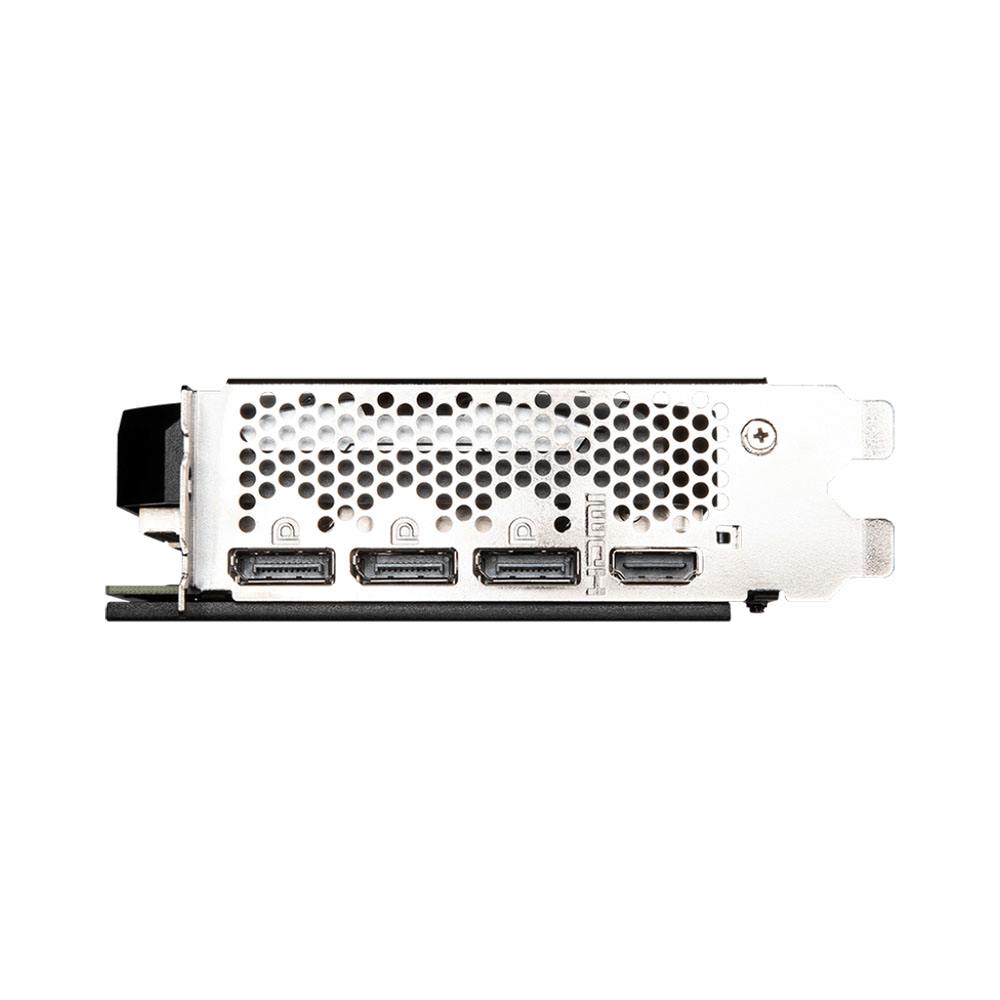

Output	DisplayPort x 3 (v1.4a) HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)
HDCP Support	Y
Power consumption	200 W
Power connectors	8-pin x 1
Recommended PSU	650 W
Card Dimension (mm)	242 x 125 x 43 mm
Weight (Card / Package)	651 g / 947 g
DirectX Version Support	12 Ultimate
OpenGL Version Support	4.6
Maximum Displays	4
G-SYNC® technology	Y
Digital Maximum Resolution	7680 x 4320



TAKE THE ESSENTIALS

VENTUS brings a fundamentally solid experience to users looking for a performance graphics card. A sharp-looking updated design with TORX FAN 4.0 lets VENTUS breeze through any task.



Powered by GeForce RTX 40 Series and DLSS 3

• New Streaming Multiprocessors

  Up to 2x performance and power efficiency

• Fourth-Gen Tensor Cores

  Up to 4x performance with DLSS 3

  vs. brute-force rendering

• Third-Gen RT Cores

  Up to 2x ray tracing performance



Cutting-Edge GPUs
NVIDIA Ada Lovelace architecture

Realistic and Immersive Graphics
Dedicated Ray Tracing Cores

AI-Accelerated Performance
NVIDIA DLSS 3

Game-Winning Responsiveness
NVIDIA Reflex low-latency platform

Built for Live Streaming
NVIDIA Encoder

AI-Enhanced Voice and Video
RTX Video Super Resolution and NVIDIA Broadcast

Fast-Track Your Creativity
NVIDIA Studio

Performance and Reliability
Game Ready and Studio Drivers



REVOLUTIONARY DUAL-FAN THERMAL

Two fans on a huge heatsink ensures a cool and quiet experience.



DrMos

DrMOS power stage solutions provide great efficiency with low power loss and enhanced voltage controls.

Fuse

Additional fuses built into the custom PCB provide additional safeguards against electrical damage.



GeForce RTX™ 4070 VENTUS 2X 12G OC

WITH DLSS 3

Get equipped for stellar gaming and creating with the NVIDIA^® GeForce RTX™ 4070. It’s built with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience fast ray tracing, AI-accelerated performance with DLSS 3, new ways to create, and much more.

Boost Clock / Memory Speed

• 2505 MHz / 21 Gbps
• 12GB GDDR6X
• DisplayPort x 3 (v1.4a)
  HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)

Dual Fan Thermal Design

• TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
• Core Pipe: Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
• Zero Frozr: The fans completely stop when temperatures are relatively low, eliminating all noise.

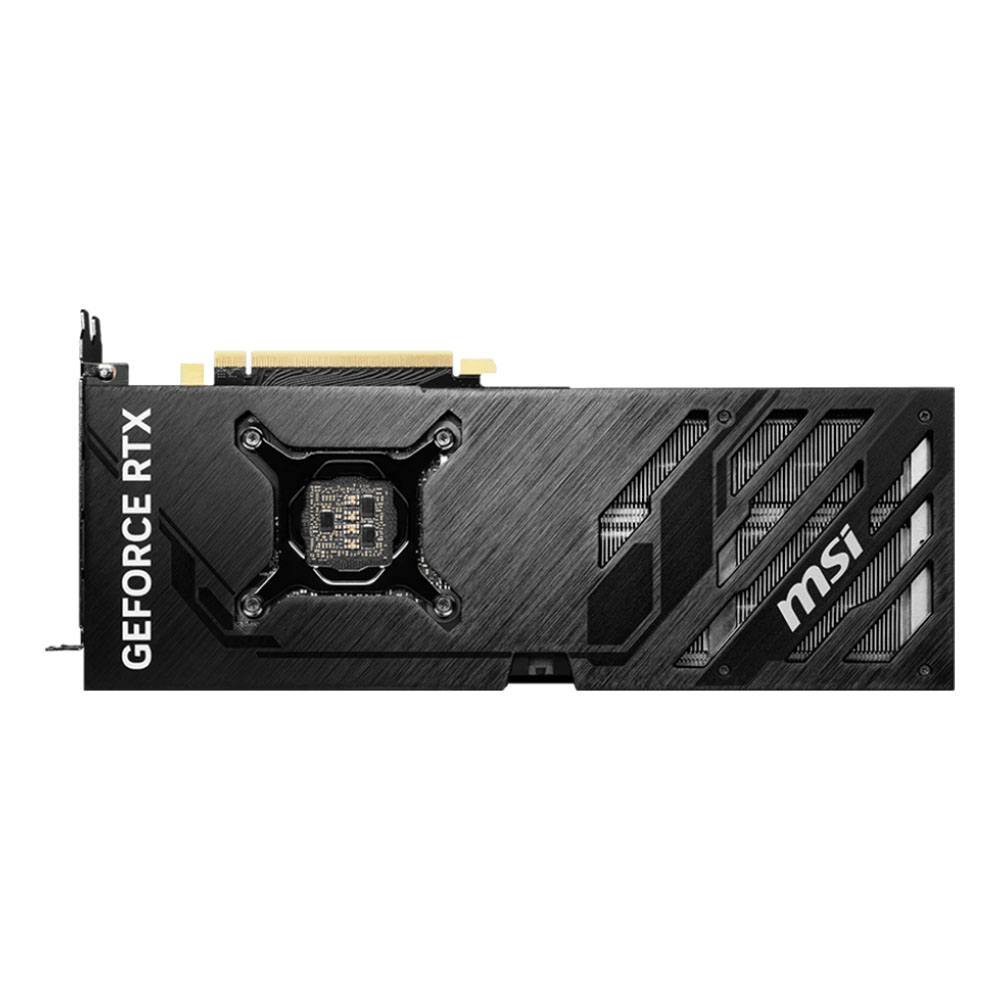

Reinforcing Backplate

• The reinforcing backplate features a flow-through design that provides additional ventilation.

MSI Center

• The exclusive MSI Center software lets you monitor, tweak, and optimize MSI products in real-time.
