Aerocool KCAS PLUS 600W Power Supply Unit

Specifications

AC Input	200-240VAC 4A 50-60HZ
DC Output	+3.3V	+5V	+12V	-12V	+5VSB
Max Current	18A	18A	50A	0.3A	2.5A
Max.Combined Power0	100W		600W	3.6W	12.5W
	600W
EAN CODE	4713105962659



The most affordable power supply unit that delivers high efficiency and stable power output with minimum noise. The KCAS PLUS is 80Plus Bronze certified for high performance with up to 85%+ efficiency. Comes equipped with DC-to-DC conversion circuit for more reliable operation with heavy CPU and GPU loads.

• Built-in APFC (Active Power Factor Correction) rates > 0.9
• 80Plus Bronze certified for 85%+ efficiency
• Equipped with DC-to-DC conversion circuit
• Silent 12cm fan with optimized thermal fan speed control
• Powerful single +12V rail offers compatible DC output
• Complete over current protection and over temperature protection

Specifications are subject to change without notice.
Products and models may vary depending on your region.
Contact your local retailer for more information.





BUILT-IN DC-TO-DC CIRCUIT

Equipped with DC-to-DC conversion circuit for tight voltage regulation even under heavy cross-loading conditions.
This ensures reliable operation with heavy CPU and GPU loads.

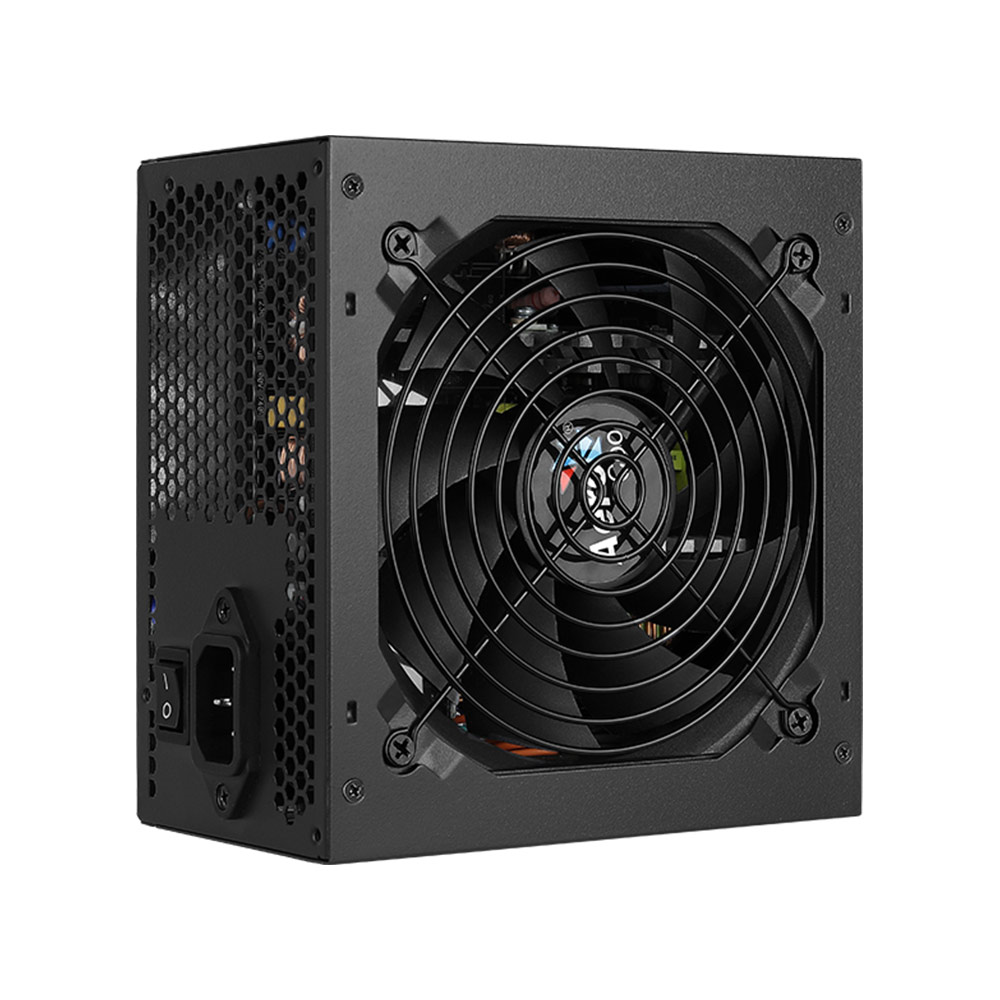

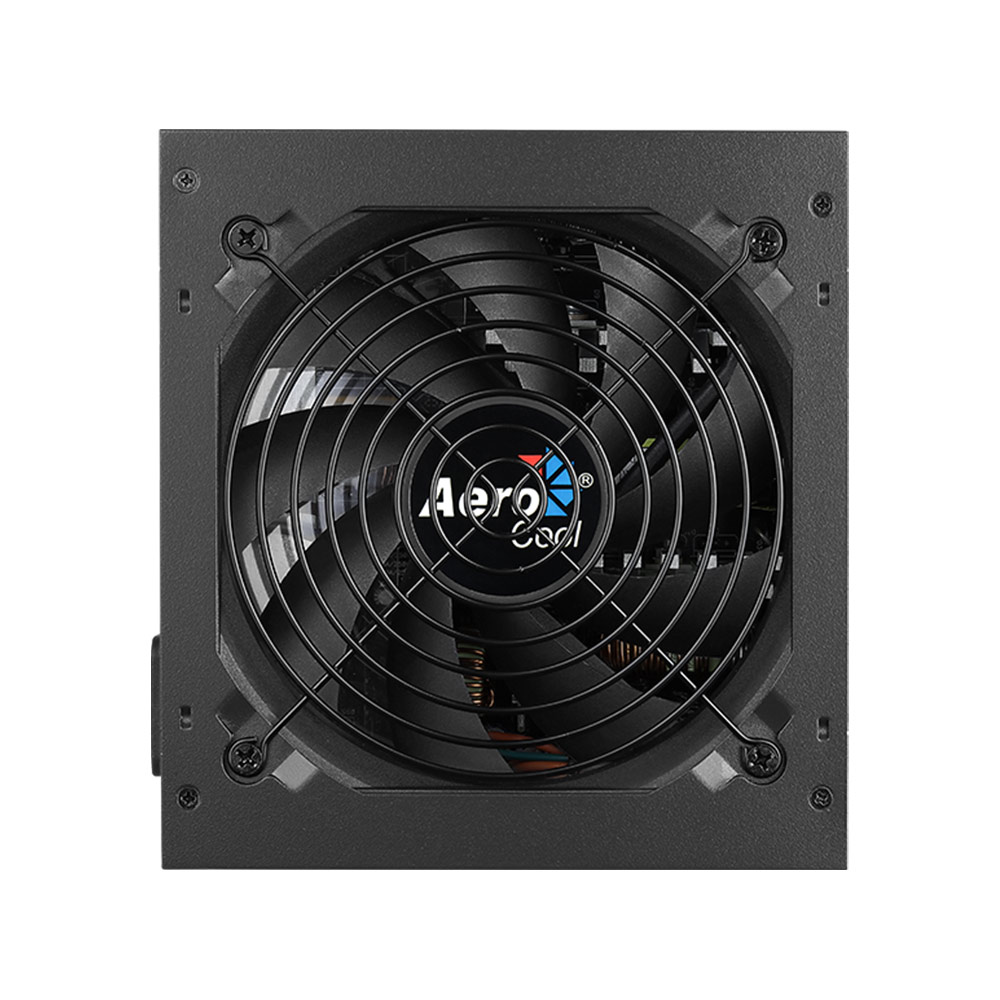

OPTIMIZED FAN RPM

12cm silent black fan with optimized thermal fan speed control. Fan runs at startup speed (less than 800RPM) before reaching 60% load at 25℃ ambient temperatures.
