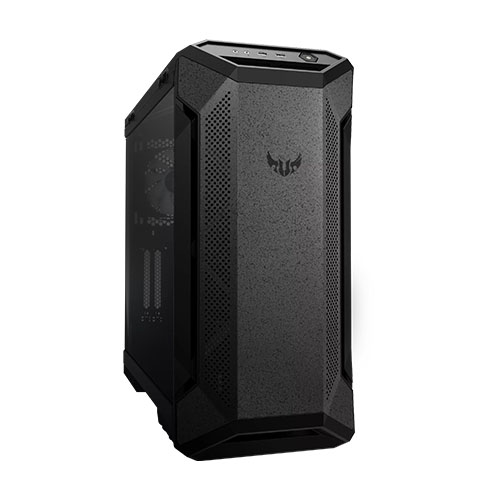

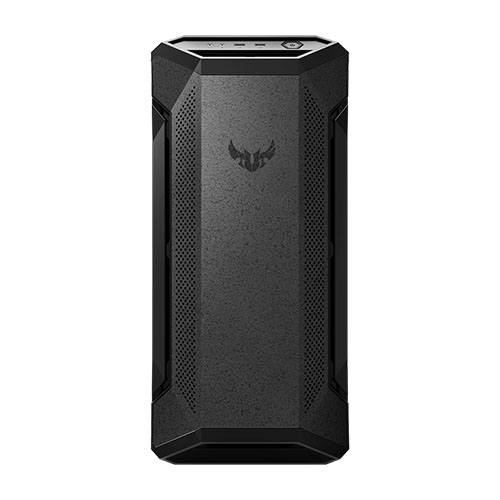

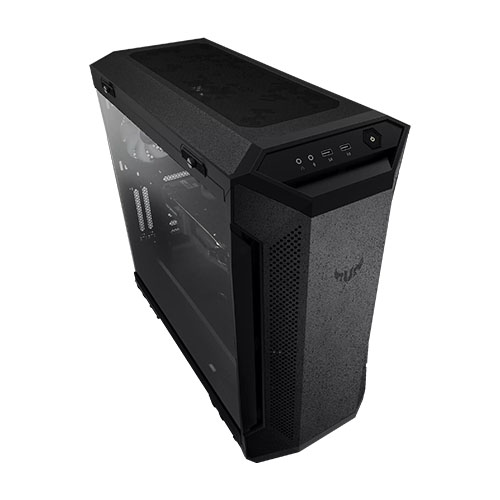

ASUS TUF Gaming GT501VC Tower Case

Specifications

Model	TUF Gaming GT501VC
Case Size	Mid Tower
Motherboard Support	EATX (12″x10.9″) ATX Micro-ATX Mini-ITX
Drive Bays	3 x 2.5″ Bay 4 x 2.5″/3.5″ Combo Bay
Expansion Slots	7 2 (additional vertical)
Front I/O Port	1 x Headphone 1 x Microphone 2 x USB 3.1 Gen1
Tempered Glass	Left Side
Radiator Support (Front)	120 mm 140 mm 240 mm 280 mm 360 mm
Radiator Support (Top)	120 mm 140 mm 240 mm 280 mm 360 mm
Radiator Support (Rear)	120 mm 140 mm
Cooling Support (Front)	3 x 120 mm 2 x 140 mm
Cooling Support (Top)	3 x 120 mm 2 x 140 mm
Cooling Support (Rear)	1 x 120 mm 1 x 140 mm
Pre-installed Fans (Front)	None
Pre-installed Fans (Rear)	None
Maximum CPU Cooler Height	180 mm
Maximum GPU Length	420 mm
Maximum PSU Length	240 mm
Removable Dust Filters	Front Top Bottom
Maximum Cable Management Space	30 mm
Dimensions	251 x 545 x 552 mm
Weight	9.9Kg



ASUS TUF Gaming GT501VC case supports up to EATX with metal front panel, tempered-glass side panel, 360mm water-cooling radiators space reserved, and USB 3.1 Gen 1



With a full-height, smoked-glass side panel, GT501VC lets you show off your build from top to bottom – so your components, customizations and Aura illuminations are all clearly visible. This panel is tempered for strength, and hinged at the bottom for opening ease.



Cooling Fan Design

It’s easy to upgrade cooling when you need, with up to seven mounting points for the installation of fans.



GT501VC makes PC DIY easier than ever. Integrated cable-management ensures neatness, while pre-installed physical supports for the motherboard eliminates additional costs and mean you’re ready to build from the get-go. It all adds up to design with you in mind for an unrivaled PC-building experience.



Removable dust filters effectively prevent airborne particulates from entering TUF Gaming GT501VC, keeping your system’s internals looking as good as new for longer. The top and front filter are magnetic for a tight seal, and quick removal and cleaning, while the lower dust-trap is easily slid in and out to enable fast maintenance.
